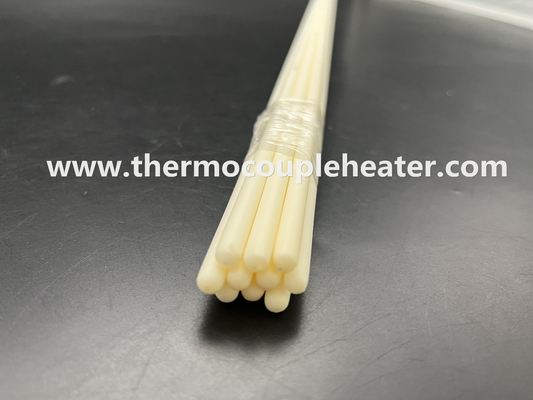

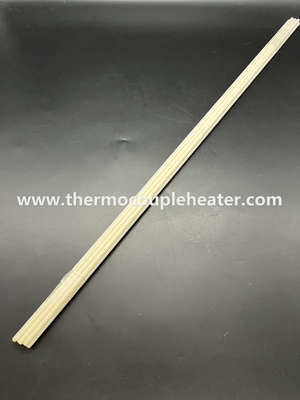

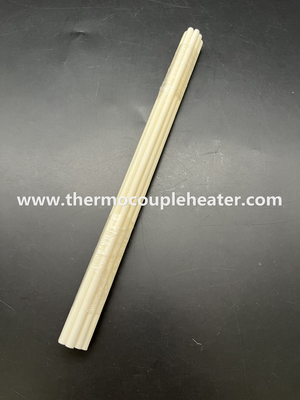

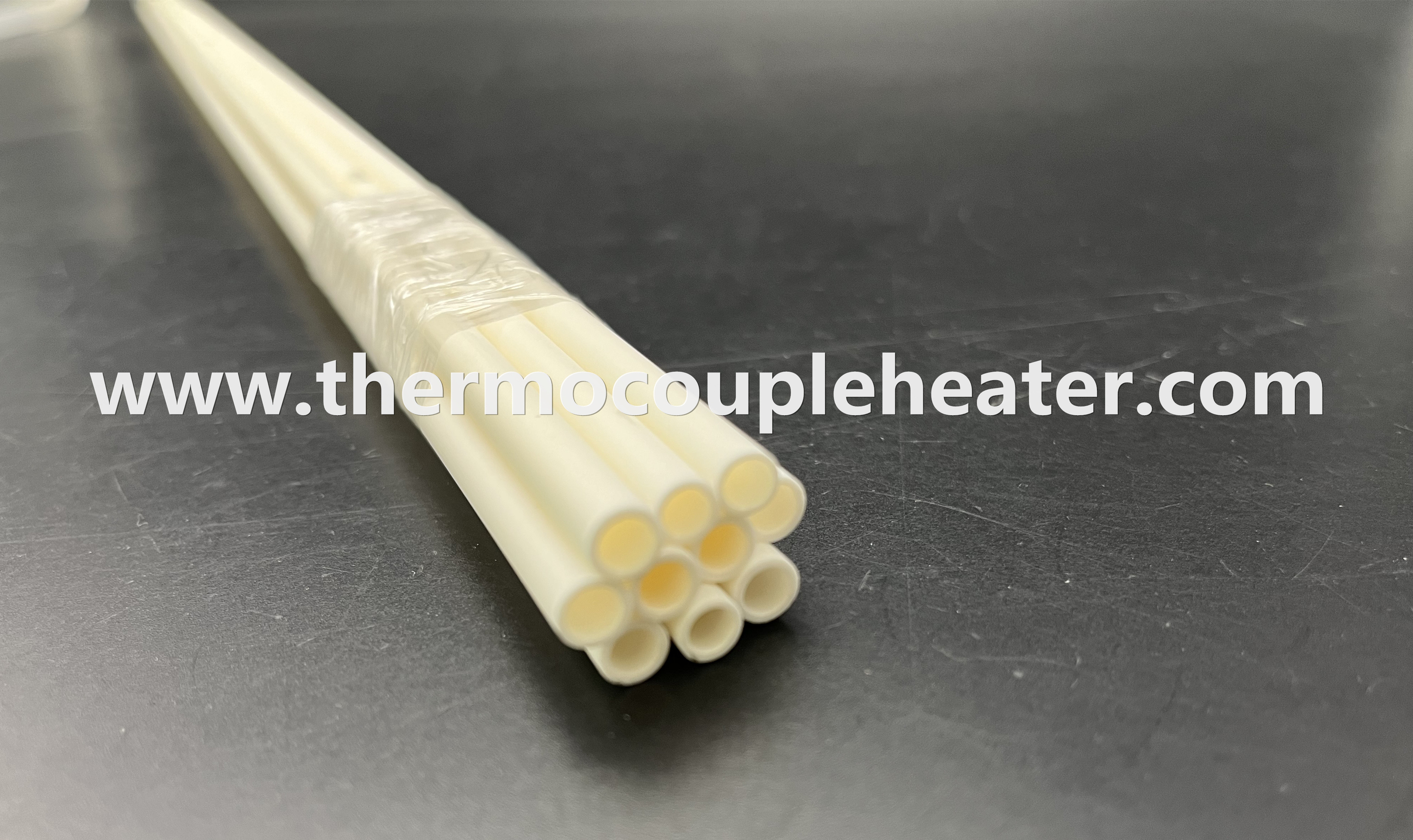

High Temperature Resistant Alumina Al2O3 Ceramic Thermocouple Protection Tube

Large Image : High Temperature Resistant Alumina Al2O3 Ceramic Thermocouple Protection Tube

Product Details:

Place of Origin:	China
Brand Name:	GME

Payment & Shipping Terms:

Minimum Order Quantity:	5000 pieces
Packaging Details:	Pallet
Delivery Time:	2-3 weeks
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	2,500,000 pcs per month

Contact Now

Detailed Product Description

Usage:	Protection Of Thermocouple Probe	Material:	Alumina
Color:	Ivory / Pink	Size:	Customized
Max.Using Temperature:	1800°C
Highlight:	Alumina Thermocouple Protection Tube , Al2O3 Thermocouple Protection Tube

High Temperature Resistant Alumina Al2O3 Ceramic Thermocouple Protection Tube

Description:

Alumina ceramic is a kind of structural ceramics, with insulation resistance, voltage resistance, high strength, good thermal conductivity, dielectric loss, stable electrical performance characteristics. Used in electronic ceramic substrates, ceramic electrical insulation, vacuum devices, devices porcelain, spark plugs and other products.

Feature:

A variety of specifications available

Satisfy various technical request

Lower medium spoilage

Good insulation performance and high temperature resistance

Stiffness texture

Used in all electric products, electric heating products and wear resistant machinery parts

Technical data:

Material	85 Al2o3	95 Al2o3	99.7 Al2o3
Al2o3	0.85	0.94	0.996
Fe2o3	≤ 1.0	≤ 0.5	≤ 0.3
Density: g / cm3	3.4	3.6	3.85
Vickers Hardness	≥ 8.6	9	9
Water Absorption:%	≤ 0.2	≤ 0.085	≤ 0.01
Refractoriness:°C	1200 °C	1600 °C	1800°C
Flexural Strength:Mpa	180	240	280
Wear Rate( at room temperature, erosion, 100 grinding)%	≤ 3	≤ 1	≤ 0.5

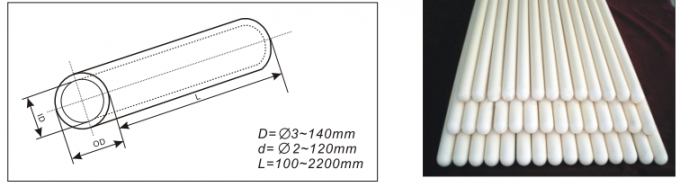

One end closed:

High Temperature Resistant Alumina Al2O3 Ceramic Thermocouple Protection Tube 0

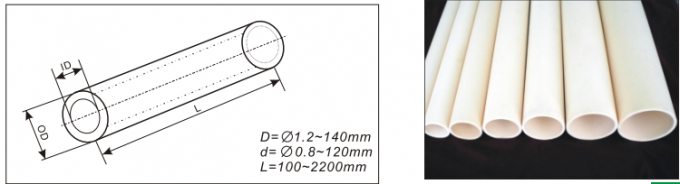

Both ends open:

High Temperature Resistant Alumina Al2O3 Ceramic Thermocouple Protection Tube 1
