Water Immersion Tubular Heater with Thermostat

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	cartons， pallet
Delivery Time:	7~10 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	100000 pcs per Month

Contact Now

All Products

Coil Heaters (328)

Thermocouple RTD (294)

Mineral Insulated Thermocouple Cable (32)

Thermocouple Compensating Cable (62)

Cartridge Heaters (143)

Cast Heater (36)

Tubular Heater (87)

High Temperature Cable (28)

Thermocouple Connection Head (59)

Hot Runner Temperature Controller (22)

Thermocouple Thermowell (26)

Sacrificial Anodes (10)

Thermocouple Components (162)

Mica Insulated Band Heaters (27)

Ceramic Heaters (4)

Electric Heater Components (31)

Heater Making Machine (13)

Immersion Tubular Heater In Flat Shape For Oil Or Water Heating

Detailed Product Description

Power Source:	Electric	Dimension:	Customized
Voltage:	12-480V	Sheath Material:	Stainless Steel Or Nickel
Style:	K, J,	Lead Wire:	Copper, , Fiberglass Silicon
Insulation Material:	MgO	Heating Element:	Nichrome Resistance
Screw Threads:	Available	Flange Washer:	Available
Connection:	Screw Fitting

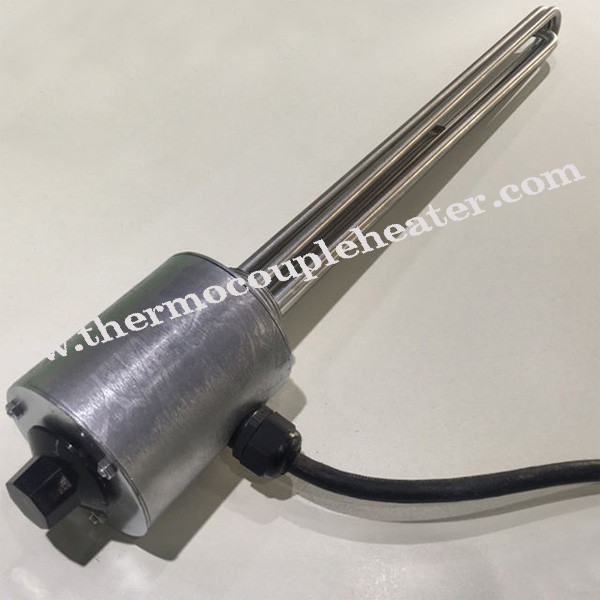

Water Immersion Tubular Heater with Thermostat

Description:

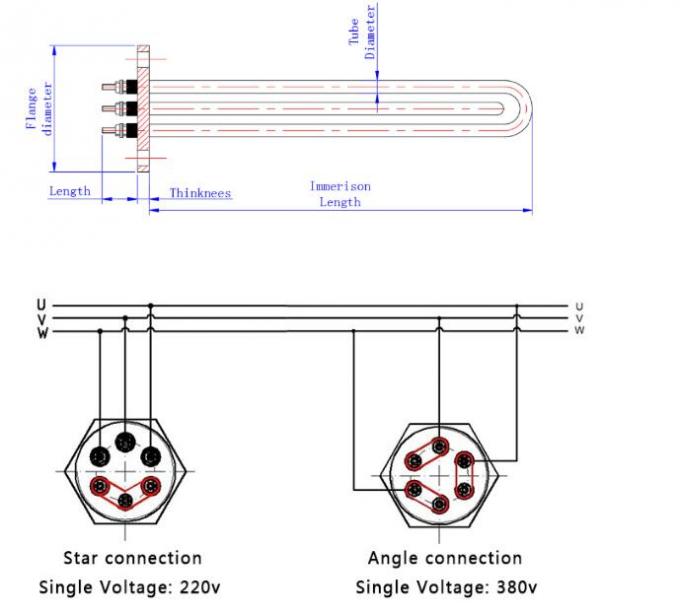

Flanged immersion heaters consist of hairpin bent tubular elements welded or brazed into a flange and provided with wiring boxes for electrical connections. Flange heaters are installed by bolting to a matching flange welded to the tank wall or nozzle. A wide selection of flange sizes, kilowatt ratings,voltages, terminal housings and sheath materials makes these heaters ideal for all types of heating applications

* High-Density and quality tubular heating elements

* Many diameters and length offered as standard

* Alloy sheath for high corrosion resistance

Tube diameter:	Φ8mm-Φ20mm
Tube Material	SS201, SS304, SS316, SS321 and INCOLOY800 etc
Insulation Material	MgO
Conductor Material:	Nichrome Resistance Wire
Wattage Density:	High/Middle/Low (5-25w/cm2)
Voltages available:	380V,240V, 220V,110V,36V,24V or 12V
Lead Connection Option:	Threaded Stud Terminal or Lead Wire

Water Immersion Tubular Heater with Thermostat

Application:

* Plastic processing machinery

* Water and oil heating appliances
* Packing machineries
* Vending machines
* Dies and Tools
* Heating chemical solutions
* Ovens and Dryers
* Kitchen equipments
