Flat Cartridge Heaters with flange Flat tubular Heating Element

10 pcs
MOQ
Flat Cartridge Heaters with flange Flat tubular Heating Element
Features Gallery Product Description Request A Quote
Features
Specifications
Voltage: 12-480V, Customized
Power: Customized
Cross Section: 7x16mm, Or Customized
Length: Customized
Sheath Material: Stainless Steel
Resistance Wire: Nichrome 80/20
Highlight:

Flange Flat Cartridge Heaters

,

Tubular Flat Cartridge Heaters

,

Flat Cartridge Heaters
Basic Infomation
Place of Origin: China
Brand Name: GME
Payment & Shipping Terms
Packaging Details: Exported Case Packing
Delivery Time: 7-15 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 pcs per month
Product Description

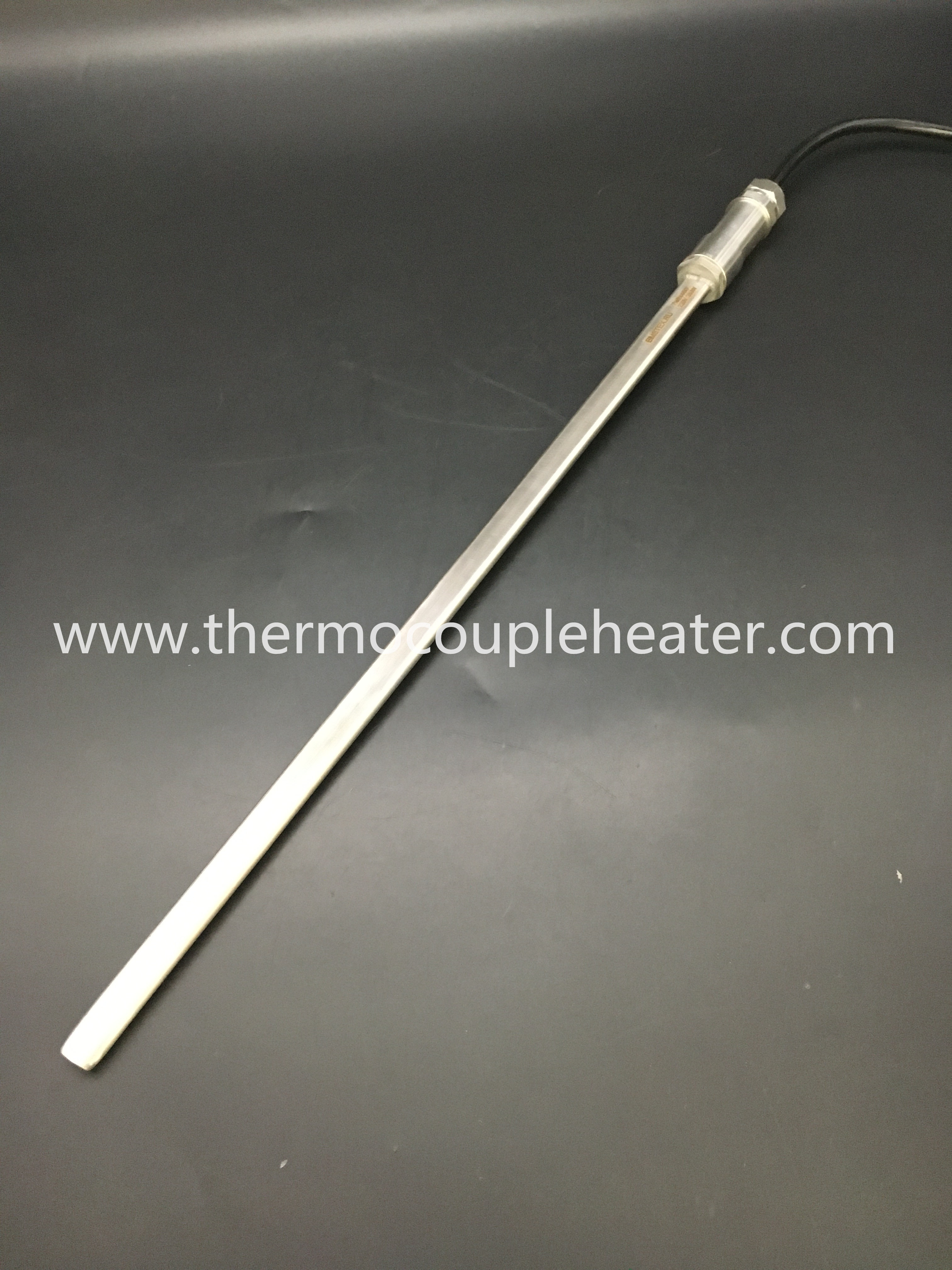

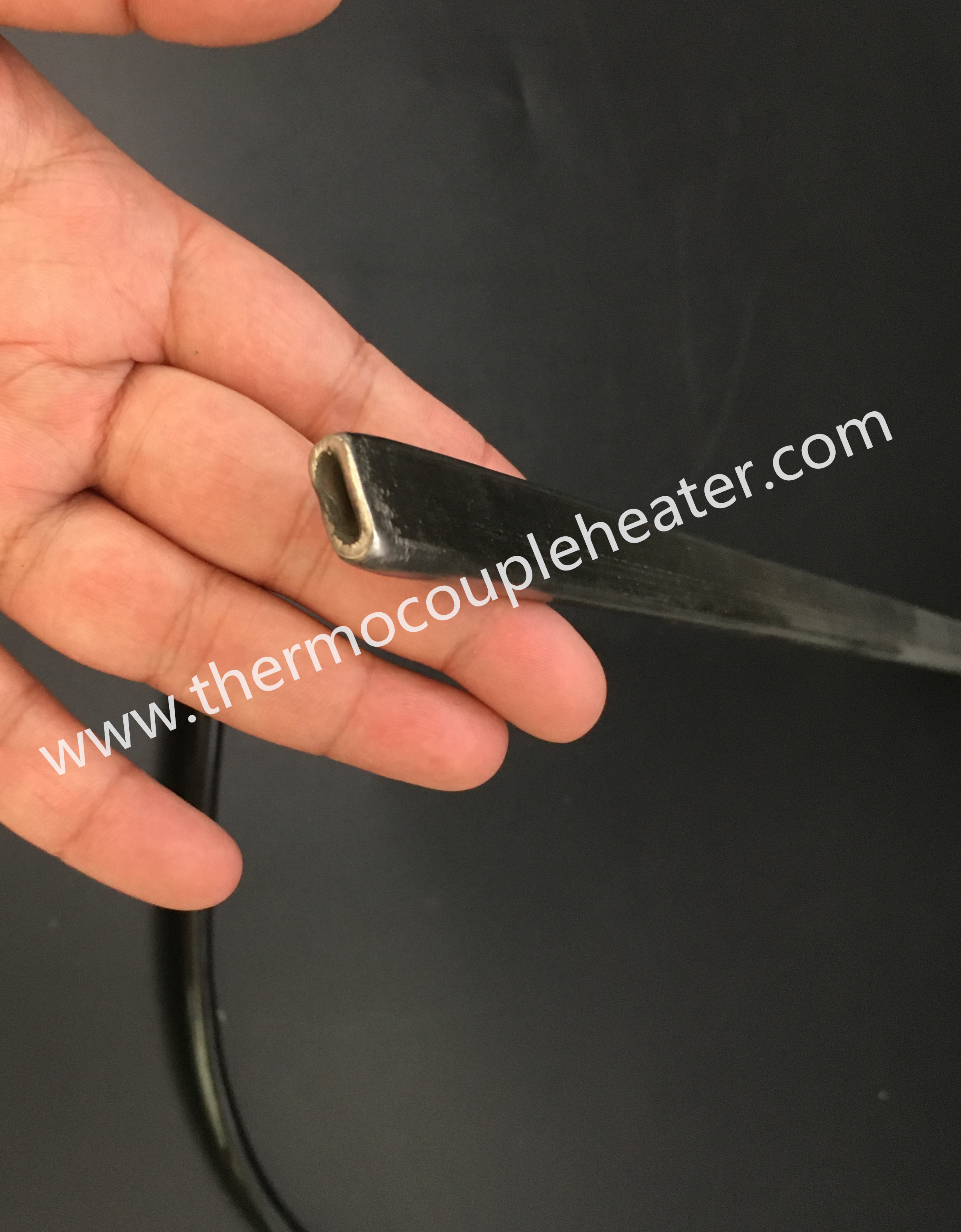

Flat Cartridge Heaters With Flange Flat Tubular Heating Element



Description:



Flat tubular cartridge Heaters are designed as an alternative form of round cartridge heater. It is designed mainly used on the mold heating, and liquid heating, and any applications need to increase the heating area with limiting heating space.



The flat tuburlar cartridge Heaters can be made based on customer’s specific requirements, can be designed to be different shapes and sizes. They are made swaged in lead, smooth platen surface to increase the heating transfer efficiency and long life time.



The Flat tubular Cartridge heater has a large contact area, rapid heating speed, high heat transfer efficiency, saving space, power, heating up fast, high reliability, high heat capacity, long service life advantages. The flat surface improve product quality performance while taking into account environmental protection and energy requirements of the times.





Flat Cartridge Heaters with flange Flat tubular Heating Element 0



Technical Details



1 Inside magnesium oxide insulation material: 99.99% high purity magnesium oxide
2 Heating element: high durance and high temperature NiCr2080 heating elements from Germany
3 TC material: High quality TC elements to ensure ±5 ℃ tolerance
4 Max working temperature 900℃
5 High voltage stability test: Less than 0.5mA leak under 1000V for 30 seconds
6 Section: Customized
7 The range of the Total Length: 25mm----2500mm
8 Maximum power density: 50w/cm²
9 Unheated zone: 10mm at lead end and about 5mm at bottom
10 Lead options: A: Solid Nickel Pin: wire 300℃ or 500℃
B: Swaged in wire: 500℃ wire coming from inside
