stainless steel 304 material thermocouple junction box Ex d IIB T4 T6 Industrial temperature sensor protection head

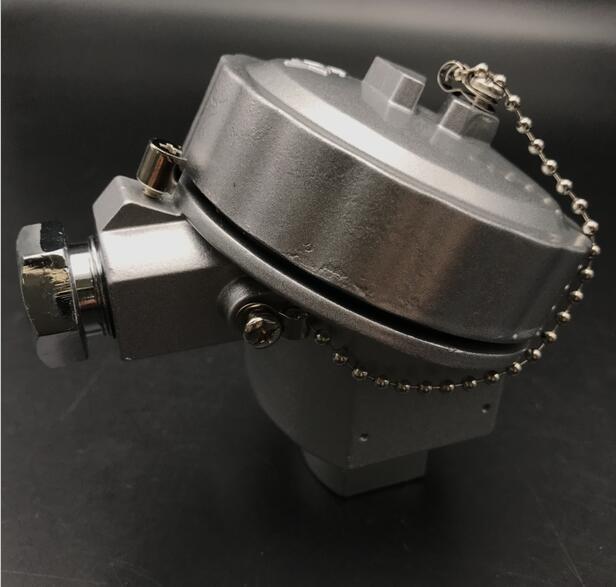

Large Image : stainless steel 304 material thermocouple junction box Ex d IIB T4 T6 Industrial temperature sensor protection head

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	cartons， pallet
Delivery Time:	7~10 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	100000 pcs per Month

Contact Now

Detailed Product Description

Material:	Aluminum Alloy	Material Of Wire:	Nickel Plated Iron/brass
Voltage:	12-480V	Probe Material:	Stainless Steel, Inconel600
Model Number:	BA/KD	Heating Element:	Nichrome Resistance
Mounting:	Thread/flange/none	Types Of Terminal Box:	Anti-spray/water-proof
Connection:	Thread
Highlight:	Industrial temperature sensor protection head , stainless steel 304 thermocouple junction box , 304 material thermocouple junction box

Stainless steel 304 material thermocouple junction box Ex d IIB T4 T6 Industrial temperature sensor protection head

Description:

We have normal junction boxes with various dimensions,forms and materials, with its surface plastic sprayed,painted or brightened. It works for temperature sensors in mormal environment with various interfaces and matches various bolts and protective tubes. It can be provided with complete machine or alone.


Material:	alloy-aluminum
Application:	connection box
Color:	all colors available
Terminal block:	2P-C 3P-C,4P-C,6P-C
Probe entry:	customize
Wire entry:	customize

Specification:

Material: ACD12 aluminium,SUS304,SUS316

Protection tube entry:M12X1 ,M16X1,G1/2",NPT1/2"
Extension wire entry: G1/2",NPT1/2",M20x1.5
Color available:Black
Screw distance:33mm,36mm,40mm
Material of terminal block: ceramic or bakelite
Form of terminal block: 2 poles, 3 poles, 4 poles, 6 poles,8 poles
Weight: 145g
Package: 50pcs/ctn for thermocouplr heads, 250pcs/ctn for terminal blocks
IP code: IP65 of IEC 529
