thermocouple fitting male connector bored through connector for thermowell double ferrule tube fitting

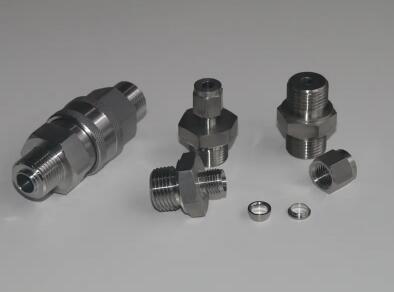

Large Image : thermocouple fitting male connector bored through connector for thermowell double ferrule tube fitting

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	cartons， pallet
Delivery Time:	7~10 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	100000 pcs per Month

Contact Now

Detailed Product Description

Power Source:	Electric	Temperature Range:	-200~650℃
Voltage:	12-480V	Probe Material:	SS304/SS316
Style:	B/R/S/W, KB-602; KS-602; KR-602; KW-602;604	Pairs Quantity Of Element:	Simplex/duplex
Heating Element:	Nichrome Resistance	Mounting:	Thread/flange/none
Function:	Temperature Sensor	Feature:	Economical
Types Of Terminal Box:	Anti-spray/water-proof	Connection:	Thread
Sample:	Available
Highlight:	Double Ferrule Thermocouple Fitting , Bored Through Thermocouple Fitting , Male Thermocouple Fitting

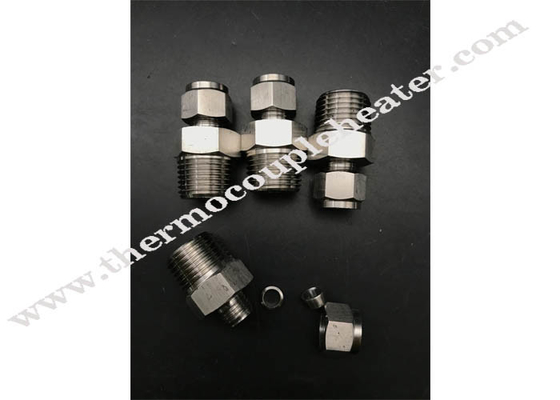

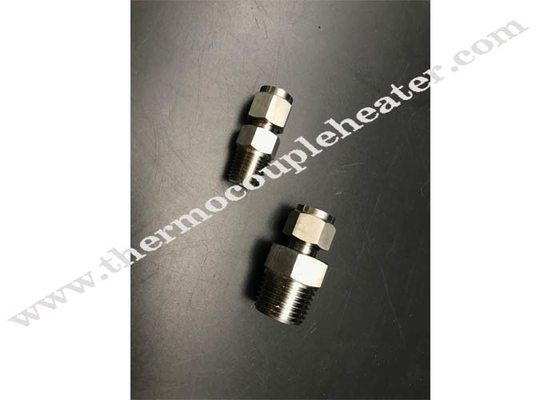

thermocouple fitting male connector bored through connector for thermowell double ferrule tube fitting

Description:

Sizes range from 1/16" to 1 1/2" and 2 mm to 38 mm.

Diverse materials and configurations are available.

Precision machined components ensure perfect deformation of the ferrules and tubing.

Radius junction design with elbows provides smooth flow path.

Every fitting is stamped with size, material, and heat code.

Fittings are easy to disconnect and retighten.

Hardened threads and smoothed surface finishes extend fitting life and prevent sticking of the matching threads.

Material	Minimum Temperature	Maximum Temperature
Stainless Steel	-325°F(-198°C)	800°F(426°C)
Brass	-325°F(-198°C)	400°F(204°C)
Alloy 400/R-405	-325°F(-198°C)	800°F(426°C)

Product name	thermocouple fitting male connector bored through connector for thermowell double ferrule tube fitting
Material	Stainless steel, brass, monel 400,alloy c276,duplex 2205,2507...
Size	1/16" to 1 1/2" and 2 mm to 38 mm
Nominal pressure	up to 6000-10000 PSI
Technics	Forged
Thread Standard	NPT,BSP,BSPT,G,SAE,PT,RP,ISO and etc
Applicable medium	oil,gas,water or other medium
Payment term	stock products 100%payment before shipping out . In generally,30%deposit , 70%balance against B/L copy, L/C is also acceptable
Packaging	each one in poly bag and small box, then in export wooden case
Other detail	1)Safe, reliable and leak-proof connection; 2)Easy to install ,disconnect and retighten; 3)No torque is transmitted to tubing during installation 4) Specified specification available upon request 5) Quality assurence 6) Free sample can be sent to test quality before place an order.

thermocouple fitting male connector bored through connector for thermowell double ferrule tube fitting 0
