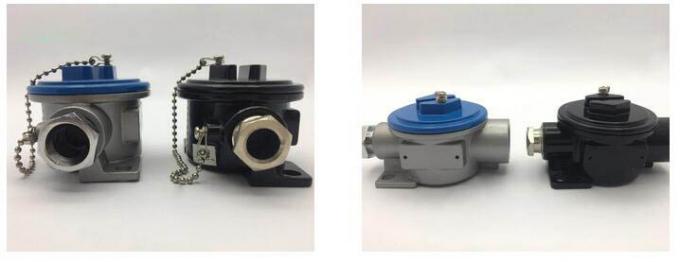

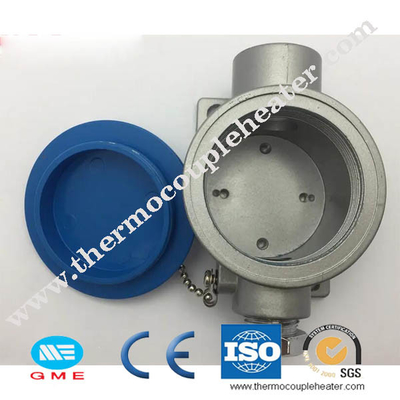

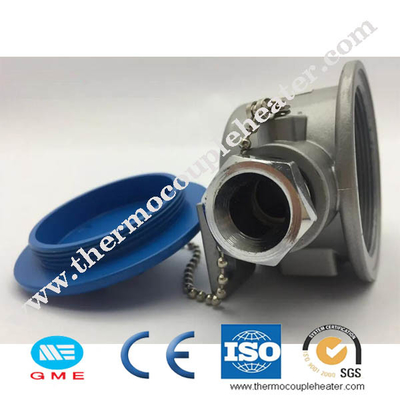

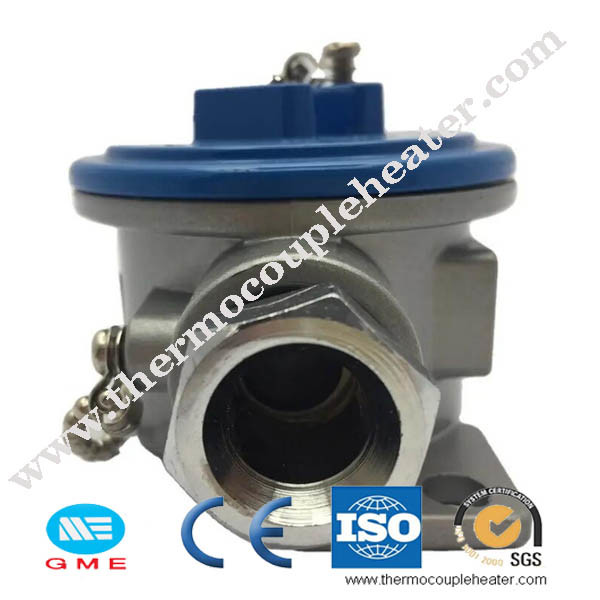

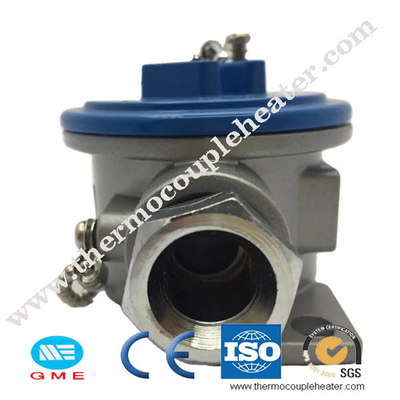

Expendable Thermocouple Head 240g KF thermocouple head

Large Image : Expendable Thermocouple Head 240g KF thermocouple head

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	cartons， pallet
Delivery Time:	7~10 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	100000 pcs per Month

Contact Now

Detailed Product Description

Material:	Aluminum Alloy	Material Of Wire:	Nickel Plated Iron/brass
Voltage:	12-480V	Probe Material:	Stainless Steel, Inconel600
Model Number:	BA/KD	Heating Element:	Nichrome Resistance
Mounting:	Thread/flange/none	Types Of Terminal Box:	Anti-spray/water-proof
Connection:	Thread
Highlight:	240g Thermocouple Head , Expendable Thermocouple Head , KF Thermocouple Head

Expendable Thermocouple Head 240g KF thermocouple head

Description:

Beautiful appearance, bright paint
Large cavity, easy to connect
The protection performance conforms to national IEC529 "enclosure protection grade" IP65
Connecting thread to protection pipe:M12*1,M16*1,M20*1,M22*1,M24*1
Outlet thread: M20*1.5
Fixed two hole dimensions with wiring panel:H=36±1,33±1
Can match the spring plate
H = 33±0.1 can be assembled with foreign wiring boards or converters to international standards
Also can assemble various structures of flameproof thermocouple, thermal resistance
Large cavity, easy to connect

Specification:

Material: ACD12 aluminium
Protection tube entry: PF1/2'',PF3/4",NPT3/4"
Extension wire entry: PF1/2",NPT1/2"
Color available: black
Screw distance: 40mm
Material of terminal block: ceramic or bakelite
Form of terminal block: 2 poles, 3 poles, 4 poles, 6poles
Weight: 240g
Package: 50pcs/ctn for thermocouplr heads, 250pcs/ctn for terminal blocks
IP code: IP65 of IEC 529

item	Thermocouple head
Place of Origin	China
Brand Name	GME

Product name:	Thermocouple KF Head
Material:	Aluminium
Moq:	100pcs
Color:	All colors available
Application:	Temperature sensor
Usage:	Industrial
Protection level:	IP65
Terminal block:	2P-C 3P-C 4P-C 6P-C
Protection pipe thread:	PF3/4,PF1/2
Outlet thread:	PF1/2
