Hot Selling Fast Response Molten Steel Consumable Disposable Thermocouple Head/Tip For Steel Mills

Large Image : Hot Selling Fast Response Molten Steel Consumable Disposable Thermocouple Head/Tip For Steel Mills

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	cartons， pallet
Delivery Time:	7~10 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	100000 pcs per Month

Contact Now

Detailed Product Description

Power Source:	Electric	Temperature Range:	-200~650℃
Voltage:	12-480V	Probe Material:	SS304/SS316
Style:	B/R/S/W, KB-602; KS-602; KR-602; KW-602;604	Pairs Quantity Of Element:	Simplex/duplex
Heating Element:	Nichrome Resistance	Mounting:	Thread/flange/none
Function:	Temperature Sensor	Feature:	Economical
Types Of Terminal Box:	Anti-spray/water-proof	Connection:	Thread
Sample:	Available
Highlight:	Steel Mills Thermocouple Head , Molten Steel Thermocouple Head , Fast Response Thermocouple Head

Hot Selling Fast Response Molten Steel Consumable Disposable Thermocouple Head/Tip For Steel Mills

Description:

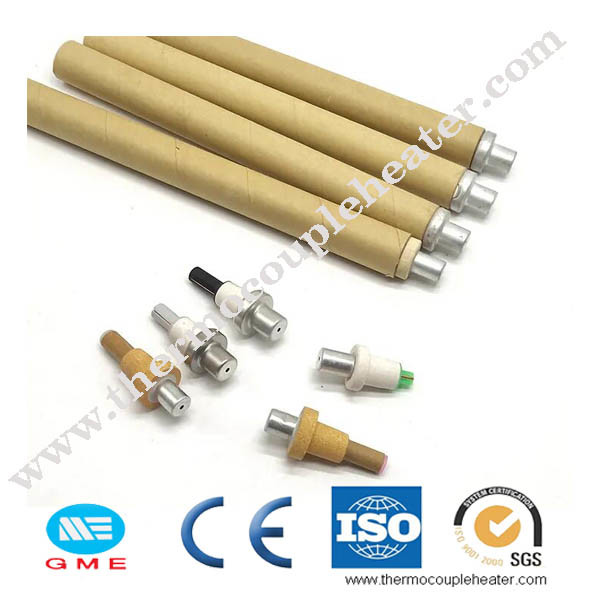

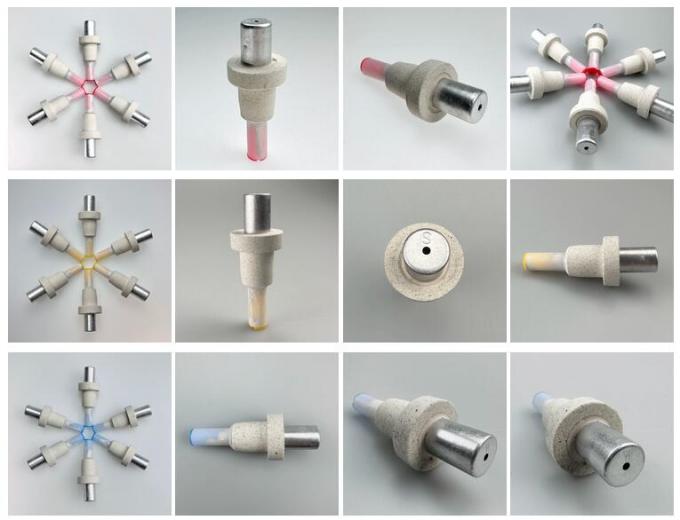

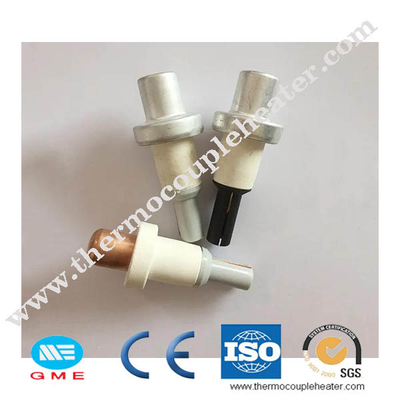

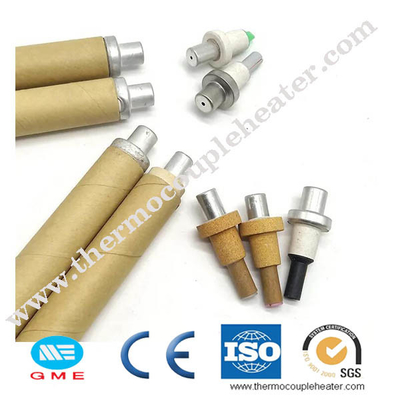

Disposable temperature thermocouple tips.

The coupling head mainly has positive and negative coupling wires welded on the compensation wire, and the compensation wire is embedded in the bracket. The bracket is covered with a small paper tube, and the coupling wire is supported and protected by quartz. The outer part is equipped with anti-slag cap, all the components are concentrated into the mud head and bonded into a whole with refractory filler, and can not be disassembled, so it is disposable.

KR/KS/KB/KW-602/604 Temperature Sensor for Molten Liquid Steel Immersion Disposable Expendable Thermocouple, which insert into the molten metal for measuring the temperature in the steel making industry.

The immersion thermocouples are with high accuracy and reliability.We can also supply sensors for any application.For example,variations in length,slag cap and thermocouple types to suit the customer's precise requirements.

Specification:

Name	Type	Model	The best	Max	Accuracy	Wire diameter(mm)
PtRh10%/Pt	S	KS-602/604	1500-1700	1750℃	≤±5℃	0.05
PtRh13%/Pt	R	KR-602/604	1400-1600	1750℃	≤±5℃	0.05
PtRh30%/PtRh6%	B	KB-602/604	1400-1600	1800℃	≤±5℃	0.05
WRe5%-WRe26%	C	KC(KW5/26)602/604	1500-1700	1800℃	≤±7℃	0.08
WRe3%-WRe25%	D	KD(KW3/25)602/604	1500-1700	1800℃	≤±7℃	0.08
