| Place of Origin: | China |
| Brand Name: | GME |
| Minimum Order Quantity: | 100 pieces |
|---|---|
| Packaging Details: | Standard Exporting Carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100,000 pcs per month |
| Type: | K, J, N, T, E | Pins: | Solid, Hollow |
|---|---|---|---|
| Body Material: | Plastic, Ceramic | Model: | Male, Female |
| Dimension: | Standard, Mini | Sample: | Available |
| High Light: | Type J Thermocouple Connector,Type K Thermocouple Connector,Solid Pins Thermocouple Connector |
||

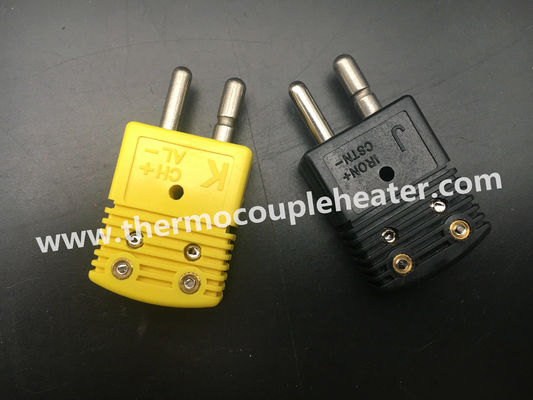

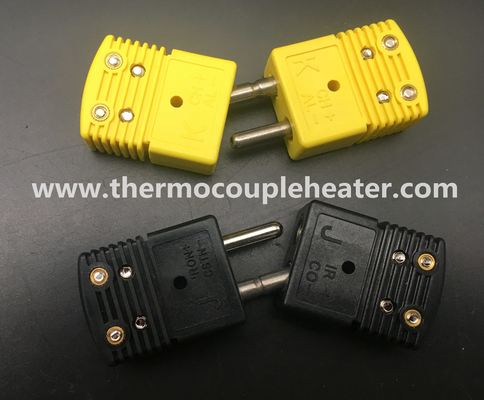

Thermocouple Connector Standard Size With Solid Pins Type K Type J
1. Description:
Thermocouple connectors are flat 2 pin TC connectors designed to connect temperature sensor instrumentation and a temperature controller or process control HMI automation panel. Male 2 pole TC plugs and matched female 2 prong TC jack pairs are stock items.
Thermocouple connector is widely used in thermocouple and RTD circuits ,it is best solution for quick and good contact. There are different models on offer for different applications.
2. Features:
Well designed body ensure good insulation inside, and well designed pins construct ensure good contact.
Available in all color code standard. ANSI color code standard will be the one if the customer do not have special requirements.
Original thermocouple alloy material pins, and spring loaded inserts.
Pins are polarized
Solid pins and hollow pins are both available, offer good contact and competitive price.
Maximum ambient temperature for the thermoplastic body continuous usage is 200 degrees celsius.
Thermoplastic body and ceramic material body are both available.
3. Order codes:
