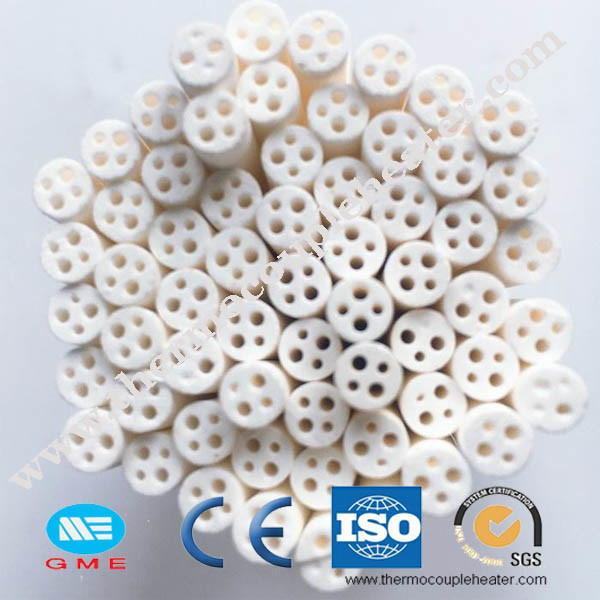

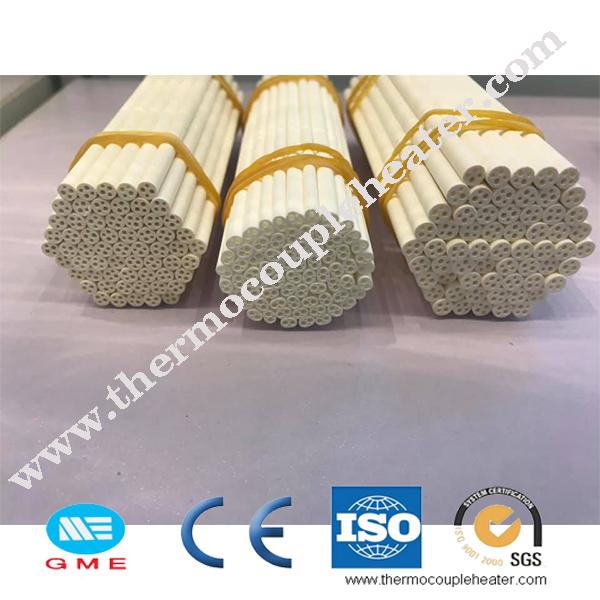

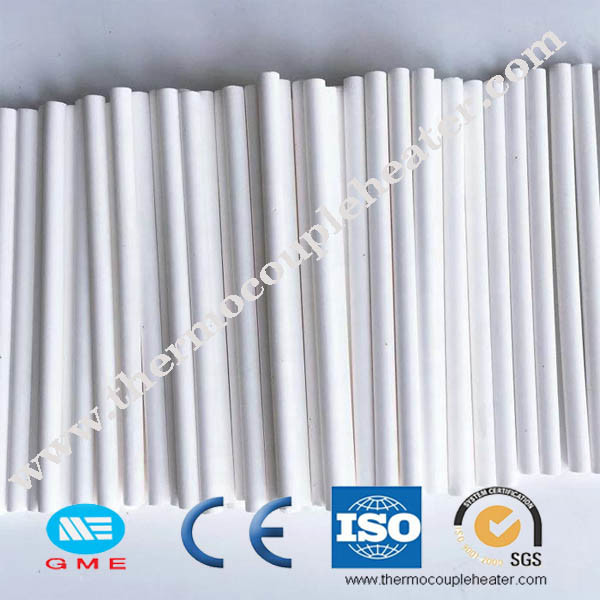

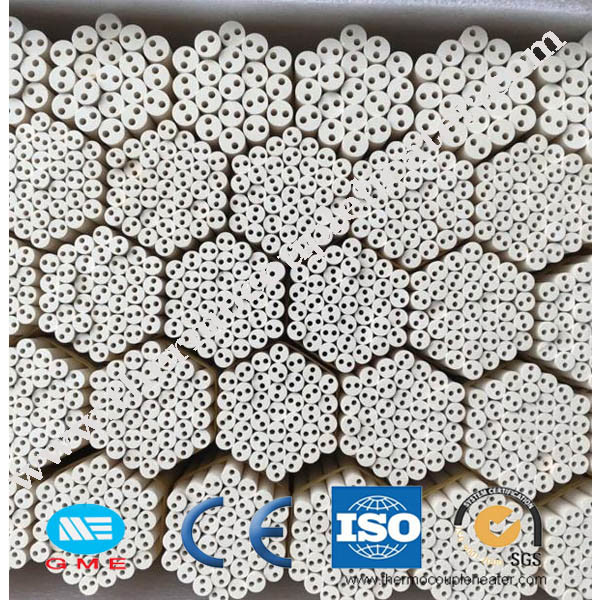

98.3---99.9% MgO Magnesia Ceramic Pipes Tubes Pin Rod

Large Image : 98.3---99.9% MgO Magnesia Ceramic Pipes Tubes Pin Rod

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE
Model Number:	Mgo rod

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs
Price:	USD$0.002/pc
Packaging Details:	paper carton, wooden carton
Delivery Time:	30days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000pcs per month

Contact Now

Detailed Product Description

Material:	Magnesium Oxide Ceramic	Color:	White / Ivory
Bores:	Single,two,four Or Multi Bores	Shape:	Round, Square, Rectangular, Oval
Usage:	Works As Refractory Material
Highlight:	MgO Magnesia Ceramic Pipes , 99.9% MgO Magnesia Ceramic Pipes , MgO Ceramic Tubes Pin Rod

98.3---99.9% MgO Magnesia Ceramic Pipes Tubes Pin Rod

Magnesia ceramic is a ceramic material consisting of at least 90% of Magnesium Oxide(MgO).It demonstrates good mechanical strength and operates well when uniformly heated or cooled and thermal shock is avoided. It offers superior performance to Alumina, being stable to 2200°C. However, above this temperature creep occurs. Due to its resistance to Lead-based materials, it is used for piezoelectric materials processing.

Al2O3 Content(%)	70-75	85	95	99.7
Density (g/cm3)	3.0	3.4	3.7	3.9
Bending Strength (Mpa)	85N/MM2	300	364	450
The coefficient of thermal expansion(200℃-800℃)	6	7	7.6	8
Thermal Conductivity(W/(m.R))	17	18	20	35
Dielectric Strength (kv/mm)	9	10	11	12
Working Temperature(long time use)(℃)	1300	1400	1600	1750
Water Absorption(%)	5	<0.2	<0.25	<0.1-0.2

Specification

1.Purity of material:
2.Dimension capability: Outer diameter from 0.3mm to 50mm;
3.Different shape availability: Round, Square, Rectangular and Oval;
4.Precision processing: Fine ground, lapping,CNC maching;

98.3---99.9% MgO Magnesia Ceramic Pipes Tubes Pin Rod 0
