Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Packaging Details: | Standard exporting packing |
| Delivery Time: | 7-10 days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100,000 pieces per month |
| Heating Wire: | Ni80Cr20 | Insulator: | MgO |
|---|---|---|---|
| Surface: | Threaded | Diameter: | 8.0/8.5mm |
| Overall Length: | 300-3000mm, Customerized | Use: | Easy To Bend, For Manifold Heating |
| High Light: | Easy Bend Threaded Surface Tubular Heater,1950mm Tubular Heater,Manifolds Tubular Heater |
||
Product Description

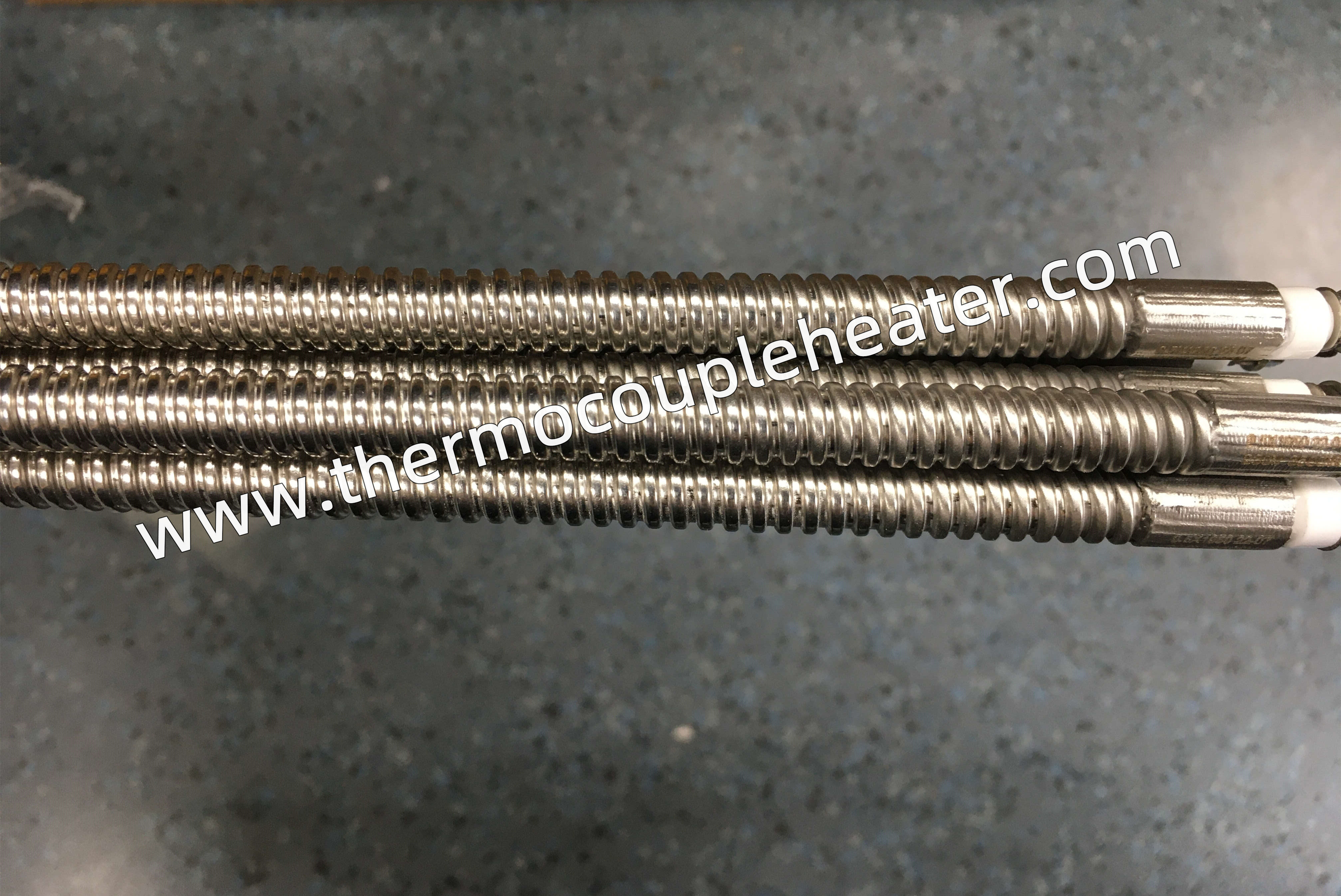

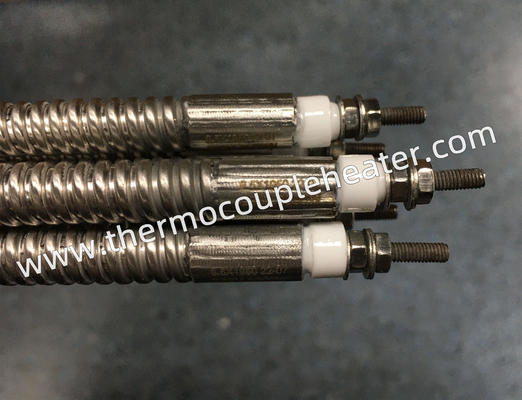

Flexible tubular heaters can be manually bent in all three directions.Flexible tubular heaters make the heating of complex platens, shapes, and machines, possible. Flexible tubular heaters are completely flexible, and may be shaped at will. Around pipes, along platen paths, and other challenging shapes. Excellent replacements for traditional tubular heaters, which are not flexible and most can be custom made in most cases.
Simplify your machine design, or reduce the maintenance time and cost by using our flexible tubular heaters.
Specification
| Voltage | 12~440V |
| Wattage | 100~4000W |
| Size | Φ8.0/8.5mm x 300~3000mm |
| Electric Heating Wire | NiCr8020 |
| Insulation | MgO |
| Sheath | Stainless steel, threaded |
| Operation Temperature | 0~600°C |
Feature
1. Easy installation with a uniform finish
2. Can be formed by hand
3. Stored in a straight condition to save storage space
4. No special installation tools required
5. Rapid heat-up times
6. Minimal temperature difference between heater sheath and heated tool
7. 3-dimensional groove geometry possible
8. Industry’s smallest bending radius
9. Flexibility enables heat to be located where it is needed, an improvement over cartridge heaters
10. Reduced energy costs, so tool mass can be reduced
Application
1. Plastic processing machineries.
2. Engineering Industry.
3. Packaging machinery.
4. Shoe making machineries
5. Foundry Equipments.
6. Radiant Surface heating.
7. Hot Runner Mould Systems.
