Tankless Flange Tubular Heater Element 30kw 50kw 60kw

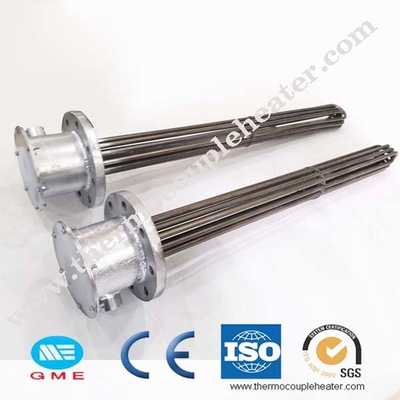

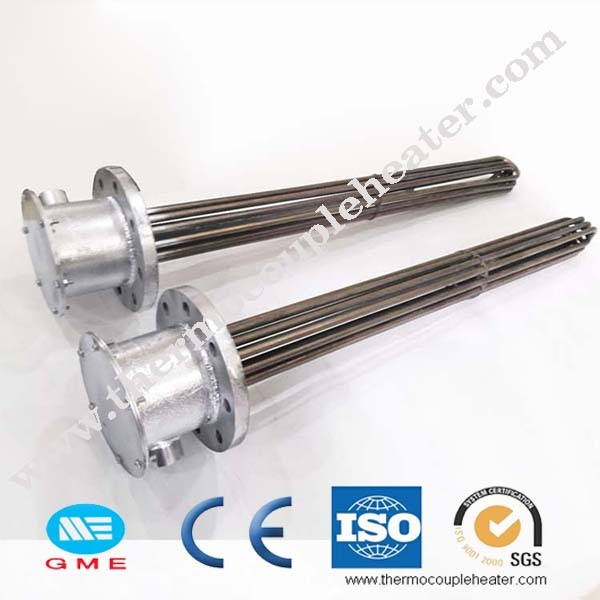

Large Image : Tankless Flange Tubular Heater Element 30kw 50kw 60kw

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	cartons， pallet
Delivery Time:	7~10 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	100000 pcs per Month

Contact Now

Detailed Product Description

Power Source:	Electric	Dimension:	Customized
Voltage:	12-480V	Sheath Material:	Stainless Steel Or Nickel
Style:	K, J,	Lead Wire:	Copper, , Fiberglass Silicon
Insulation Material:	MgO	Heating Element:	Nichrome Resistance
Screw Threads:	Available	Flange Washer:	Available
Connection:	Screw Fitting
Highlight:	Tankless Flange Tubular Heater Element , 60kw Tubular Heater Element , Fiberglass Silicon Tubular Heater

30kw 50kw 60kw tankless flange tubular heater element

Description:

1) GME immersion flange heaters are easy to install and maintain. Designed for heating liquids and gases in tanks and pressure vessels, immersion flange heater are ideal for applications requiring higher kilowatts.

2) GME immersion flange heaters are made with tubular elements brazed or welded to a flange. Stock flange immersion heaters are equipped with a general purpose terminal enclosure.

3) GME immersion flange heater, with tubular elements, also answer the need for liquid immersion heating applications requiring high kilowatts in small water tanks. The tubular element’s unique flat surface geometry packs more power in a smaller bundle, with lower watt density, making it especially well-suited for petroleum-based liquid heating applications.

Specification:

* HI-POT TEST: 1500V/S min cold condition.
* Insulation resistance: 20M Ω min
* Leakage current: 0.75ma max
* Power tolerance: +5%,-10%
* Escape of current (when cold): <=0.1mA a 242 v.
* Insulation (when cold): 5 Min Ohmios 500 Watts minimum
* Dielectric strength:1500v. 1/seg
* Tolerance of length:+/-1.5%
* Tolerance of diameter: -0.01 a -0.06 m/m
* Tolerance of cut of connexion: +/-15 mlm
* Power tolerance (w):5 % - 10 %

Material	SUS304,316L,321,Incoloy800,840,600, Copper & Titanium
Diameter	6.5mm,8mm.8.5mm,9mm,10mm,12mm and others
Length	10mm to 6000mm or as customer's demand
Voltage	Voltage:12V-440V or as customer's demand
Wattage	0.5KW to 15KW or as customer's demand
Installation	Non/screw/flange
Heating resistance wire	0Cr25Al5,Cr20Ni80 or as custom's requirement
Heating density	Air tubular heater wattage : ≥ 2w-4w/cm2 Water tubular heater wattage: ≥ 6w-10w/cm2 Dies and fin tubular heater: ≥ 8W-12w/cm2
Cold area	Depends on length and diameter
Working temperture	800ºG max

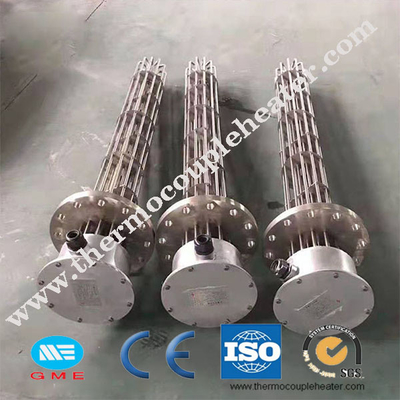

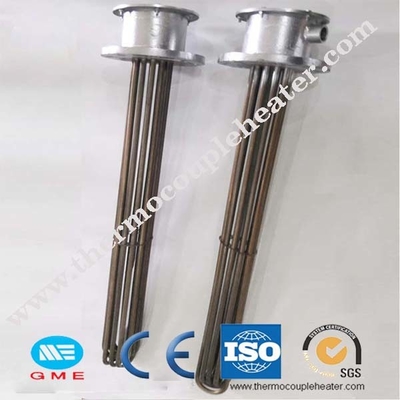

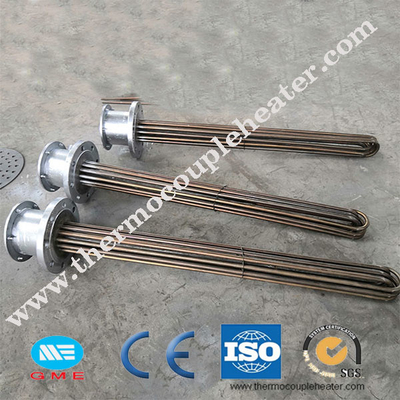

Tankless Flange Tubular Heater Element 30kw 50kw 60kw 0
