Anti Corrosion Tubular Heating Element Coated Ptfe For Electroplating Industry

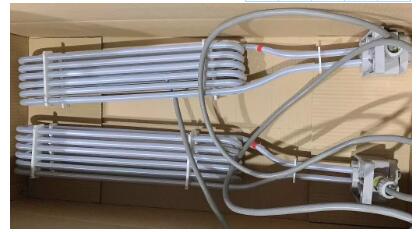

Large Image : Anti Corrosion Tubular Heating Element Coated Ptfe For Electroplating Industry

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	cartons， pallet
Delivery Time:	7~10 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	100000 pcs per Month

Contact Now

Detailed Product Description

Power Source:	Electric	Dimension:	Customized
Voltage:	12-380v	Sheath Material:	Stainless Steel Or Nickel
Power:	1w-10000w	Style:	Straight Or Coil
Material:	Ss304 Or Requirement	Length:	Up To Your Order
Highlight:	Anti Corrosion Tubular Heating Element , Coated Ptfe Tubular Heating Element , Electroplating Industry Immersion Water Heater

Anti Corrosion Tubular Heating Element Coated Ptfe Immersion Water Heater For Electroplating Industry

Specification:

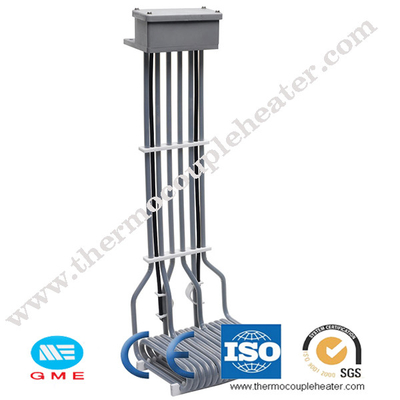

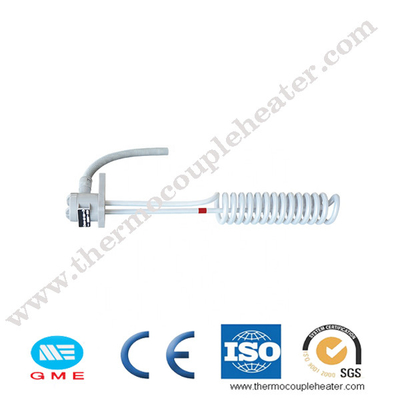

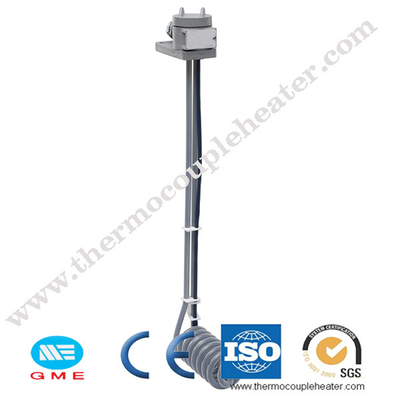

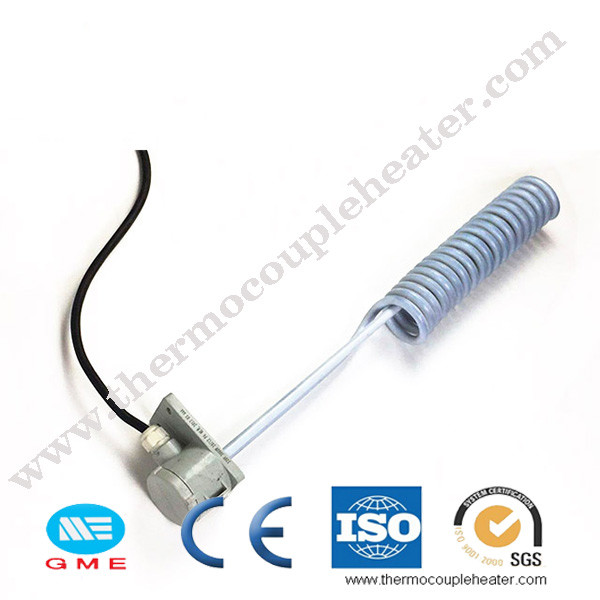

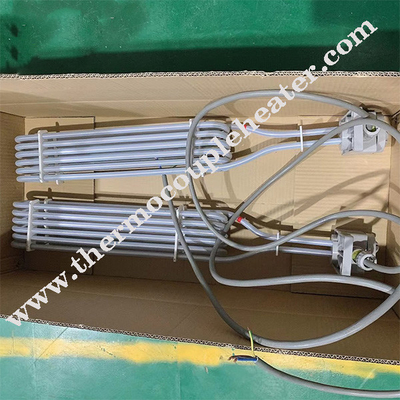

GME Immersion heaters are made using hairpin or bugle type tubular elements using incoloy or PTFE sheathed elements that are welded or silver-brazed into a pipe or steel flange. Perfectly designed to be mounted in tanks and pressurized vessels, Vinson immersion heaters are used for heating liquid mediums or other specific types of liquids, and for heating gases (water, oil, heat transfer fluid, and corrosive solutions).

Tubular diameter	8.5-12mm
Tube Material	Spray fluoroplastics, fluoroplastics sleeve, titanium
Shape	"L", "I", "circle", "m" and so on.
Wattage Tolerance	+5%, -10%
Resistance tolerance	+10%, -5%
Working temperature	1050 Deg C max.
Dielectric strength	1500v. 1/sec
Insulation (when cold)	5 Min Ohms 500 Watts minimum
Exhaust extreme (when cold)	<=0.1mA to 242 v.

Attention shall be paid to the installation position of the electric heater to prevent the solid in the solution from depositing
on the surface of the electric heater, or if the liquid is too thick and the liquid level is too low, the PTFE tube (PTFE) will be burned due to the poor heat dissipation on the surface.

Anti Corrosion Tubular Heating Element Coated Ptfe For Electroplating Industry 0
