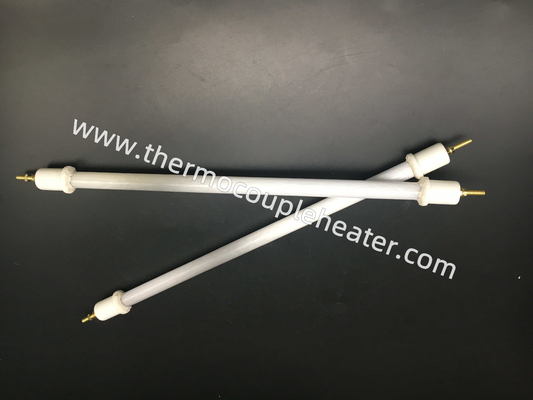

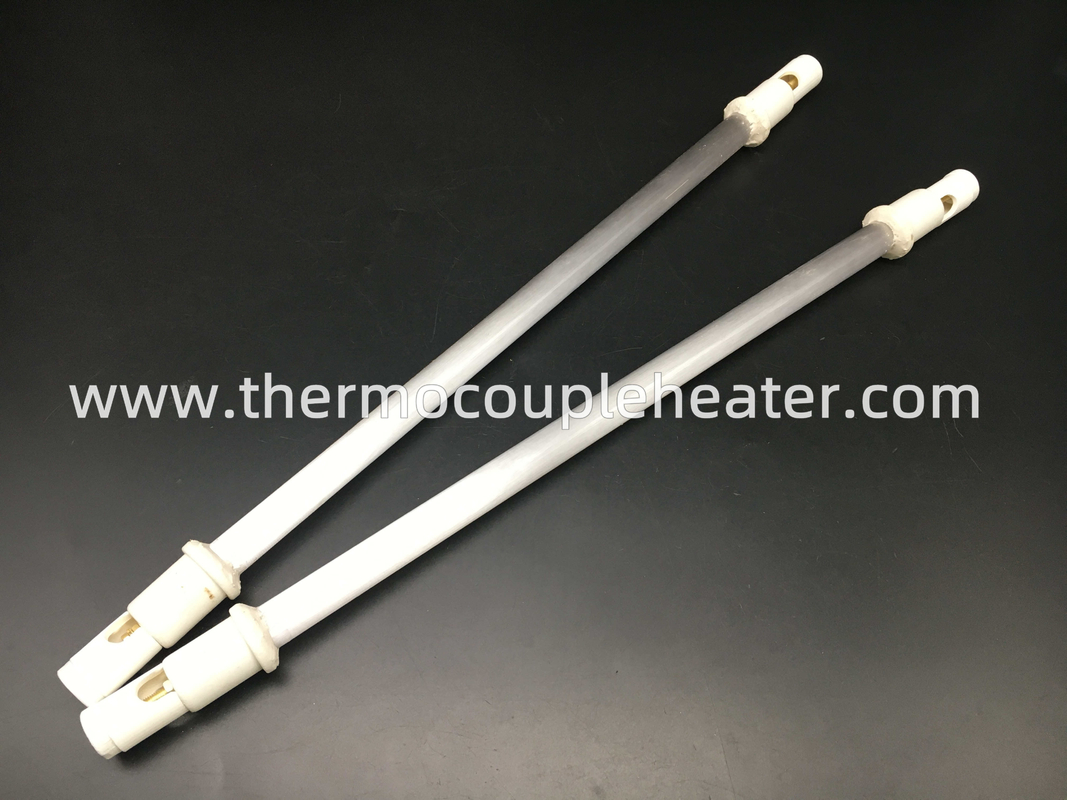

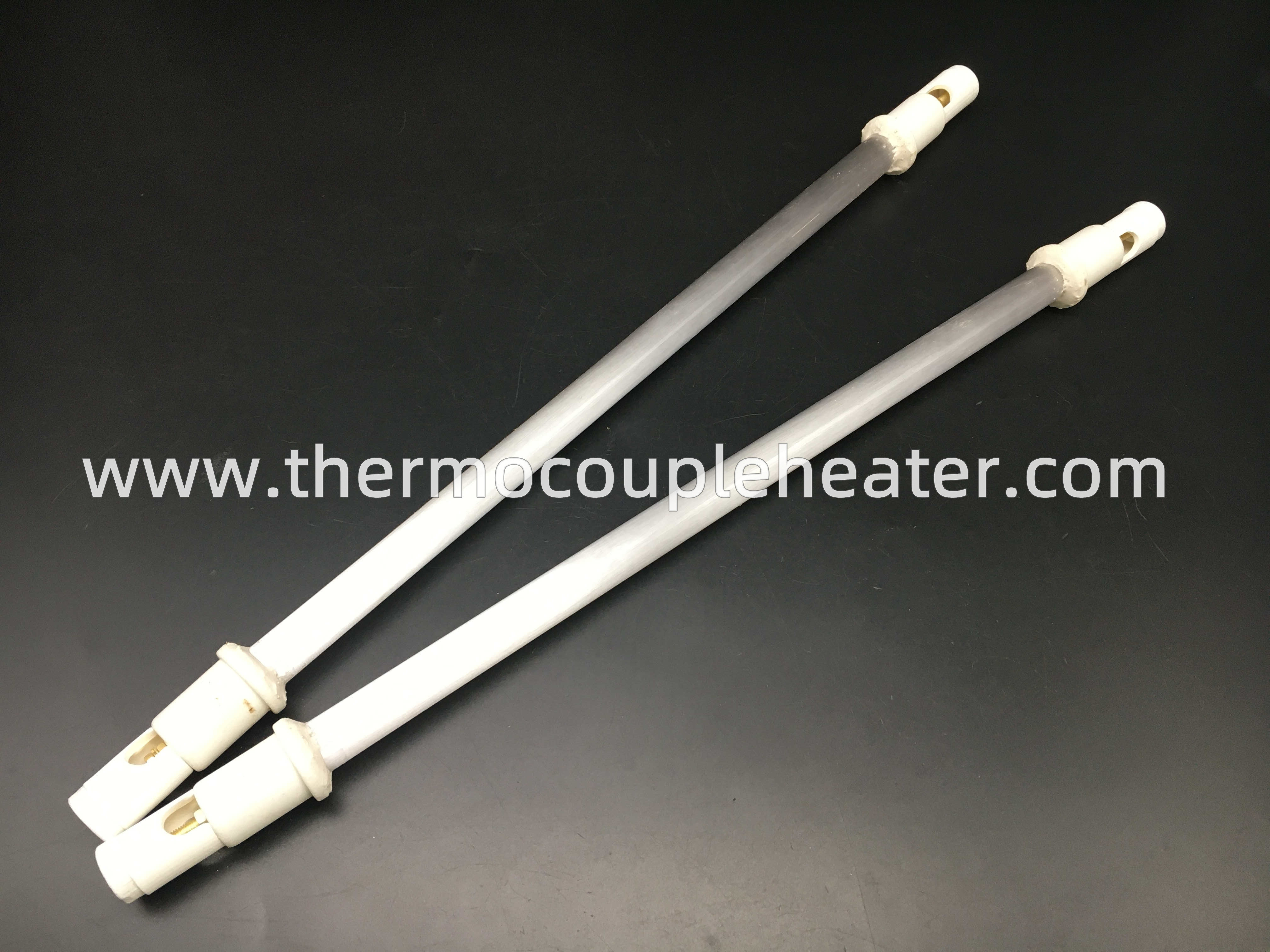

Infrared Quartz Tube Heating Element Quartz Radiation Element

Large Image : Infrared Quartz Tube Heating Element Quartz Radiation Element

Product Details:

Place of Origin:	China
Brand Name:	GME

Payment & Shipping Terms:

Minimum Order Quantity:	20 pcs
Packaging Details:	Standard exporting package
Delivery Time:	1-3 weeks
Payment Terms:	L/C, Western Union, T/T, Paypal
Supply Ability:	200,000 pcs per month

Contact Now

Detailed Product Description

Heating Method:

Infrared Radiation

Temperature Range:

Up To 800℃

Voltage:

24~380V

Power:

150~3500W

Highlight:

Infrared Quartz Tube Heating Element

3500W Quartz Tube Heating Element

380V Quartz Radiation Element

Quartz Tube Heating Element Infrared Heater Quartz Radiation Element

1. Introduction

Quartz heating elements with wide range application in household appliance like oven, toaster, infrared heaters, tuner oven heating system as key heating parts. It is economical type solution with high heat efficiency, easy installation into machines or equipment and with long service life.

2. Classification

Quartz heating elements have a big family, due to inner heating wire different ( resistance wire or tungsten wire and carbon fiber wire ), and processing difference direct touch with the air or seal with lazy gas ( quartz lamp & halogen lamp), even with different quartz colors ( milky, ruby, black, golden, transparent, sand blasting )

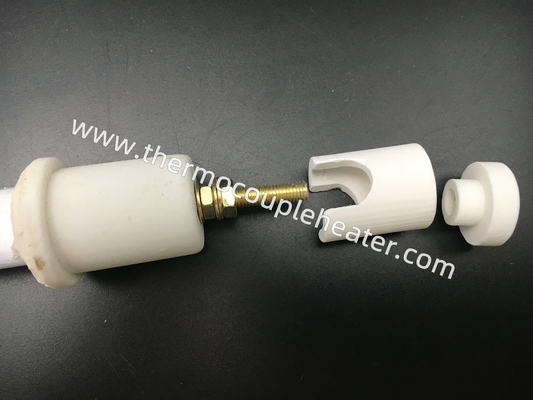

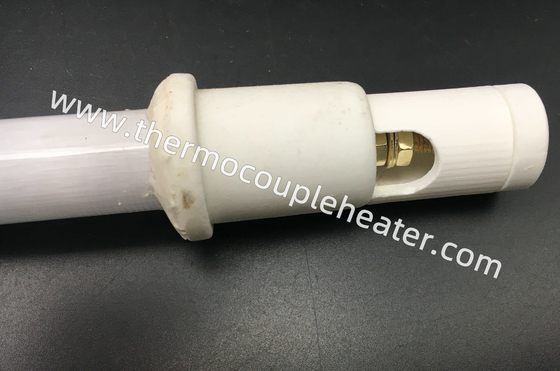

3. Constructure

Quartz heating tube including 5 parts.

1). Terminal / screw / high temperature leading wire

2). ceramic cup

3). quartz glass tube

4). resistance heating coil wire

5). quartz end cuts protection by silicon fabric

Infrared Quartz Tube Heating Element Quartz Radiation Element 0

For custom quartz elements, please provide your detail request (tube OD, length, power, voltage, connection way or possible drawing ), our R&D department will refer all information need and provide our technical drawing for better help you understand the product function.
