Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
Place of Origin: | China |
Brand Name: | GME |
Certification: | ISO/CE/UL/CSA |
Minimum Order Quantity: | 50pcs |
---|---|
Price: | USD 1-100 FOB Shanghai/pc |
Packaging Details: | Boxes or Wooden Cartons |
Delivery Time: | 7-15 work days |
Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram, L/C |
Supply Ability: | 10000pcs/Month |
Lead Wire: | Silicon, Glassfiber | Shealth Material: | SS304 ,SS321 ,SS316 |
---|---|---|---|
Color: | Biack And White | Wattage Tolerance: | +5%, -10% |
Application: | Oil, Water Or Other Liquid Etc | Power Source: | Electric |
Voltage: | 12-480v | Dimension(L*W*H): | Customizable |
Type: | Air Heater, Cartidge Heaters | Insulation: | Mgo Powder |
Highlight: | 16x200mm Cartridge Heater,750w Plastic Machine Cartridge Heater,SS304 Cartridge Heaters |

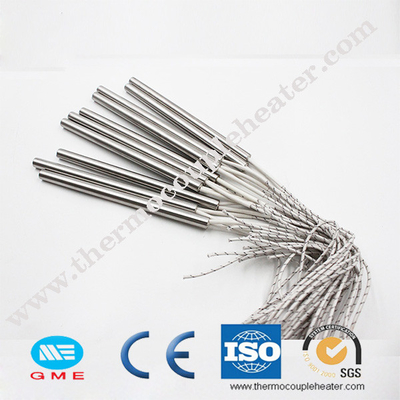

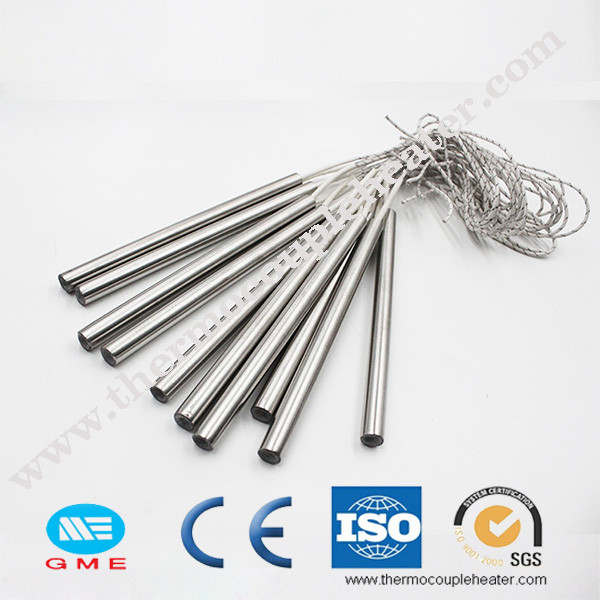

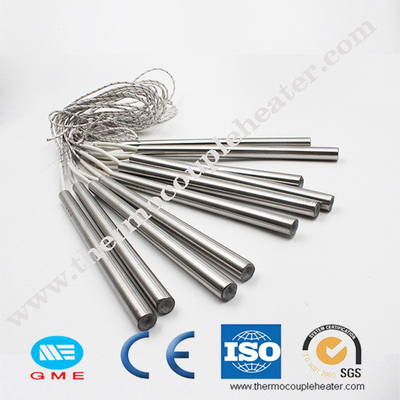

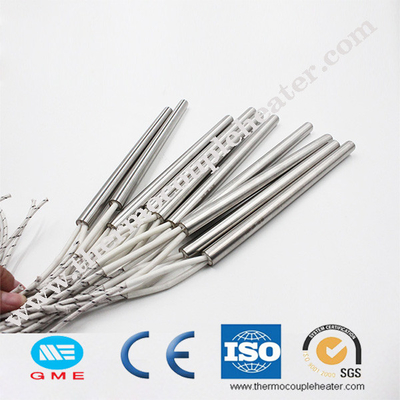

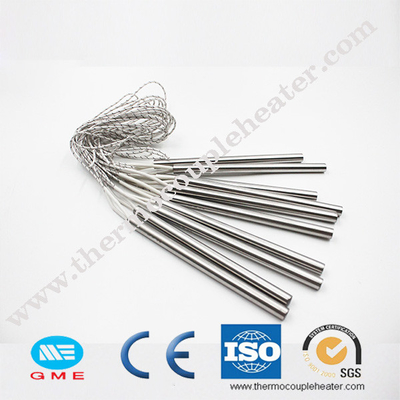

220v 750w 16x200mm Cartridge Heater for plastic machine
Description:
220v 750w 16x200mm Cartridge Heater for plastic machine are an extraordinarily versatile and durable product that is used to heat a myriad of different processes from heavy industrial – plastics and packaging applications to critical care medical devices and analytical test instruments to being used on aircrafts, railcars and trucks. Cartridge heaters are capable of operating at temperatures of up to 800℃ and achieving watt densities of up to 30 watts per square centimeter. Available from stock or custom manufactured to your individual application need, they are available in many different imperial and metric diameters and lengths with many different style terminations, wattage and voltage ratings.
Cartridge heaters are an excellent choice to use as a conductive source for heating solid metal plates, blocks and dies or as a convective heat source for use in a variety of liquids and gases. Cartridge heaters can be used in a vacuum atmosphere with proper design guidelines.
Specification:
Resistance heating wire | NiCr 80/20 wire |
Wattage Tolerance | +5%, -10% |
Resistance tolerance | +10%, -5% |
Length tolerance | ±1 mm |
Diameter tolerance | -0.02mm |
Standard Cold Zone | 5-10mm |
Insulation resistance (cold) | ≥ 500 MΩ |
Maximum leakage current (cold) | ≤ 0.5 mA |
Thermocouple Location | type J / K / Ground wire |
Internal wiring port section of the heating tube does not adopt the terminal connection mode,
Making it havhigh temperature resistance and strong mechanical properties.
The port part of the heating tube adopts terminal connection mode Is resistant to
high temperature and works in the heating medium which can not conduct wiring at both ends.
1. Operating conditions: ambient temperature-20℃ ~ + 60℃, relative temperature <80%;
2. Electrical strength: cold withstand voltage AC work 1500V 50Hz lasts for 1 min without breakdown phenomenon;
3. Thermal insulation performance: AC 1000V 50Hz lasts for 1 min without breakdown phenomenon;
4. Leakage current <0.5MA; Insulation resistance> 30MΩ;
Date sheets
Resistance heating wire | NiCr 80/20 wire |
Wattage Tolerance | +5%, -10% |
Resistance tolerance | +10%, -5% |
Length tolerance | ±1 mm |
Diameter tolerance | -0.02mm |
Standard Cold Zone | 5-10mm |
Insulation resistance (cold) | ≥ 500 MΩ |
Maximum leakage current (cold) | ≤ 0.5 mA |
Thermocouple Location | type J / K / Ground wire |
Application:
1 Semiconductor chamber heating
2 Semiconductor wafer lead connection
3 Semiconductor wire and die bonding
4 Freeze protection and deicing of equipment in cold climates or applications
5 Humidity Control
6 Patient Comfort heating used in medical devices
7 Mold die and platen heating
8 Seal bars used in packaging equipment
9 Test sample heating in gas chromatography
