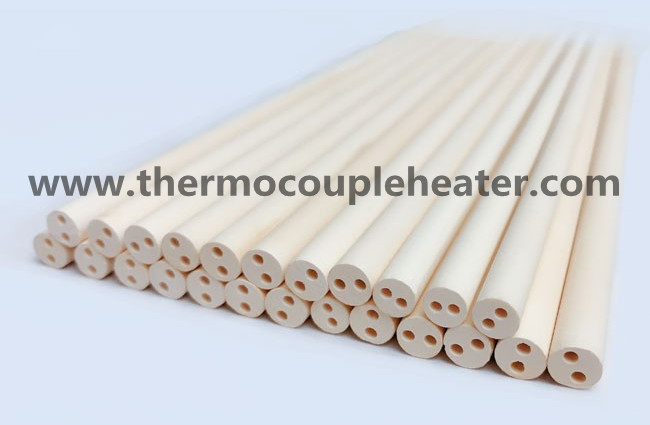

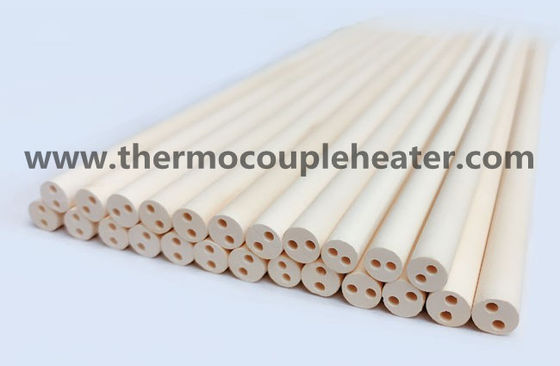

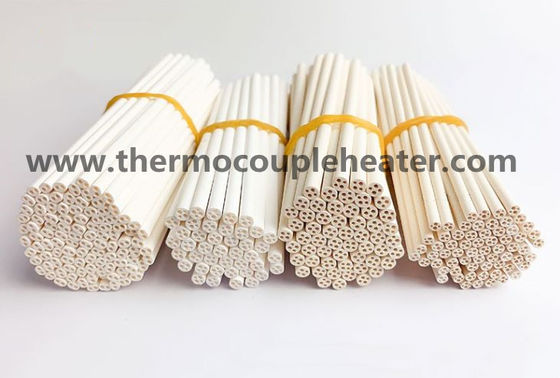

98.3 - 99.9% MgO Ceramic Tube 2 4 Holes For Cartridge Heater

Large Image : 98.3 - 99.9% MgO Ceramic Tube 2 4 Holes For Cartridge Heater

Product Details:

Place of Origin:	China
Brand Name:	GME

Payment & Shipping Terms:

Minimum Order Quantity:	2000 pieces

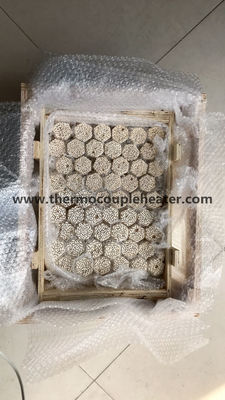

Packaging Details:	Standard Exporting Wooden Case
Delivery Time:	1-4 weeks
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	2,500,000 pcs per month

Contact Now

Detailed Product Description

Usage:	Insulator For Cartridge Heater	Material:	MgO
Shape:	Tube	Color:	White
Max.Working Temperature:	2000°C	Package:	Wooden Case
Highlight:	99.9% MgO Ceramic Tube , MgO Ceramic Tube 4 Holes , 98.3% MgO Ceramic Rod

High Purity Magnesium Oxide MgO Tube Rod Pipe 2 / 4 Holes Ceramic Insulator For Cartridge Heater

Features:

1. MgO: 98.3---99.9%

2. High resistance

3. Raw material from China,Australia,Germany , France

4. Competitive price

5. Professional service

6. Good quality with QC attached each parcel

Advantage:

1. High-quality products

2. Optimal price

3. Safe transportation

4. Sample service

5. Customized size

6. Compensate for broken goods

7. Safe package

8. Transportation safety

9. Low procurement risk

10. Long term cooperation

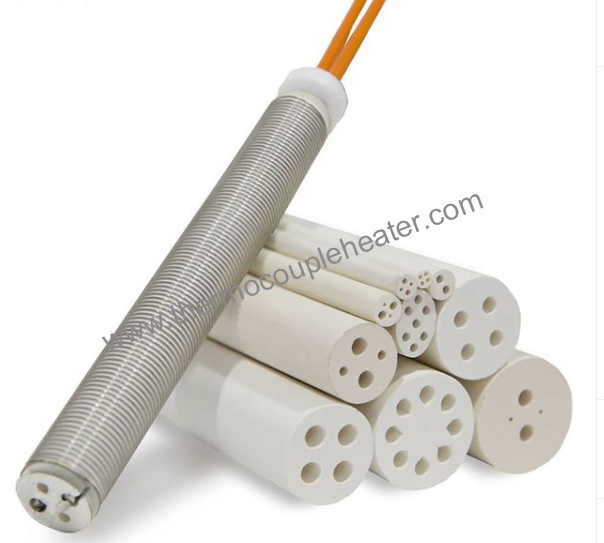

2/4 holes MgO tube for cartridge heaters:

Material	Magnesium Oxide
Mine MgO	≧97%-99%
Sea water MgO	≧99%-99.7%
Outer Diameter	Φ1.4-20mm
Inner Diameter	Φ0.4-8mm
Length	50-500mm
Color	White
Density	2.9g/cm3
Max Working Temperature	2000℃
Break Strength	110-200N
Withstand Voltage	2600V/minute no flash and breakdown

98.3 - 99.9% MgO Ceramic Tube 2 4 Holes For Cartridge Heater 0
