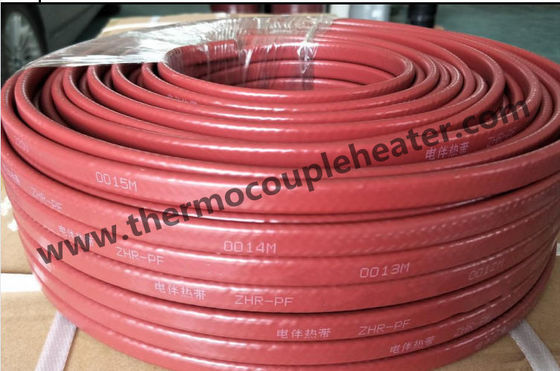

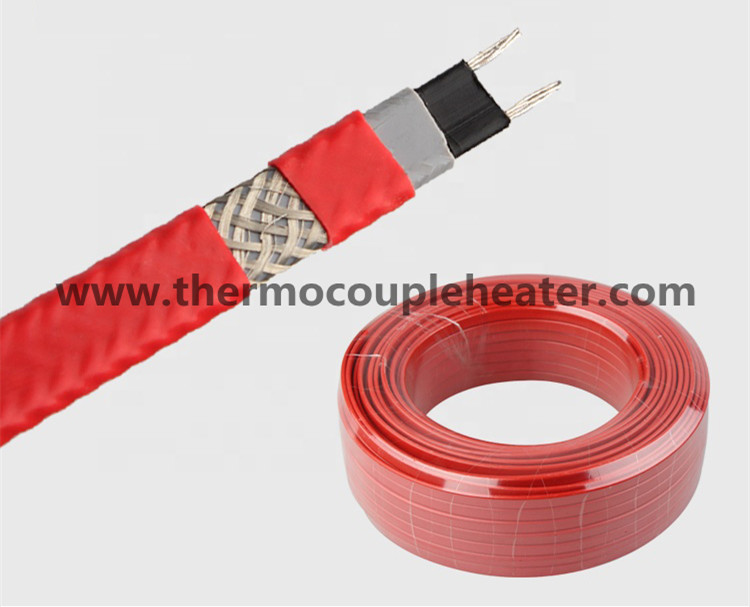

PTFE Self Regulating Electric Heat Trace Cable With Fluoropolymer Overjacket

Large Image : PTFE Self Regulating Electric Heat Trace Cable With Fluoropolymer Overjacket

Product Details:

Place of Origin:	China
Brand Name:	GME

Payment & Shipping Terms:

Minimum Order Quantity:	100 meters
Packaging Details:	Exported Case Packing
Delivery Time:	3-10 Working Days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100,000 meters per month

Contact Now

Detailed Product Description

Power Density:	10-60 Watts Per Meter, Customized	Voltage:	110v-120v /220-240v

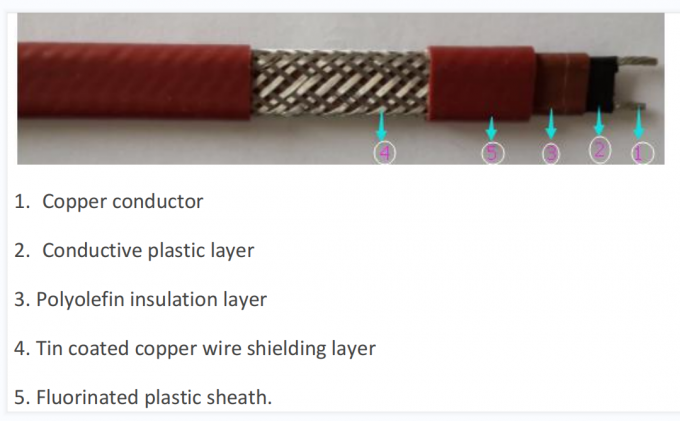

Conductor Material:	Tinned Copper	Sheath:	High Temperature Fluoropolymer Overjacket
Temperature:	65-150℃	Circuit Lengths:	1-200 Meters, Customized
Color:	Red, Brown, Black, Etc.	Application:	Pipe Heating
Highlight:	Fluoropolymer Overjacket Electric Heat Trace Cable , PTFE Electric Heat Trace Cable , PTFE Self Regulating Heating Cable

PTFE Self-Regulating Electrical Trace Pipe Heating Cable Medium - High Temperature

Description:

PTFE Self Regulating Heating Cable provides safe, reliable heating tracing for freeze protection of pipes, values, tanks and similar applications. Low watt density electrical heaters designed to be cut to the desired lengths in the field, eliminating the need for prefabricate costs. No special training is required.

Feature

• Self-Regulating, Energy Efficient

• Easy to install, can be cut to any length (up to maximum circuit length) in the field.
• Field splices can be performed easily in minutes with no scrap or wasted cold sections.
• Circuit Lengths to 200 meter
• Maximum Process Temperature Maintenance to 302°F (150°C)
• Maximum Exposure Temperature (Power Off) 420°F (215°C)
• Steam Cleanable On Process Equipment Up to 300 PSIG
• Power 10-60 Watts per meter
• Work voltage 110v-120V /220-240V

Specifications

PTFE Self Regulating Electric Heat Trace Cable With Fluoropolymer Overjacket 0

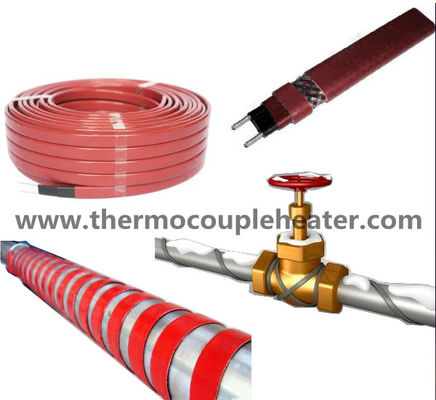

Applications:

• Process Temperature Maintenance

• Hydrocarbon and Chemical Product Piping

• Freeze Protection of Periodically Steam-Cleaned Pipes

• Freeze Protection of Fire Protection System Piping

• Fluid Flow and Viscosity Maintenance
