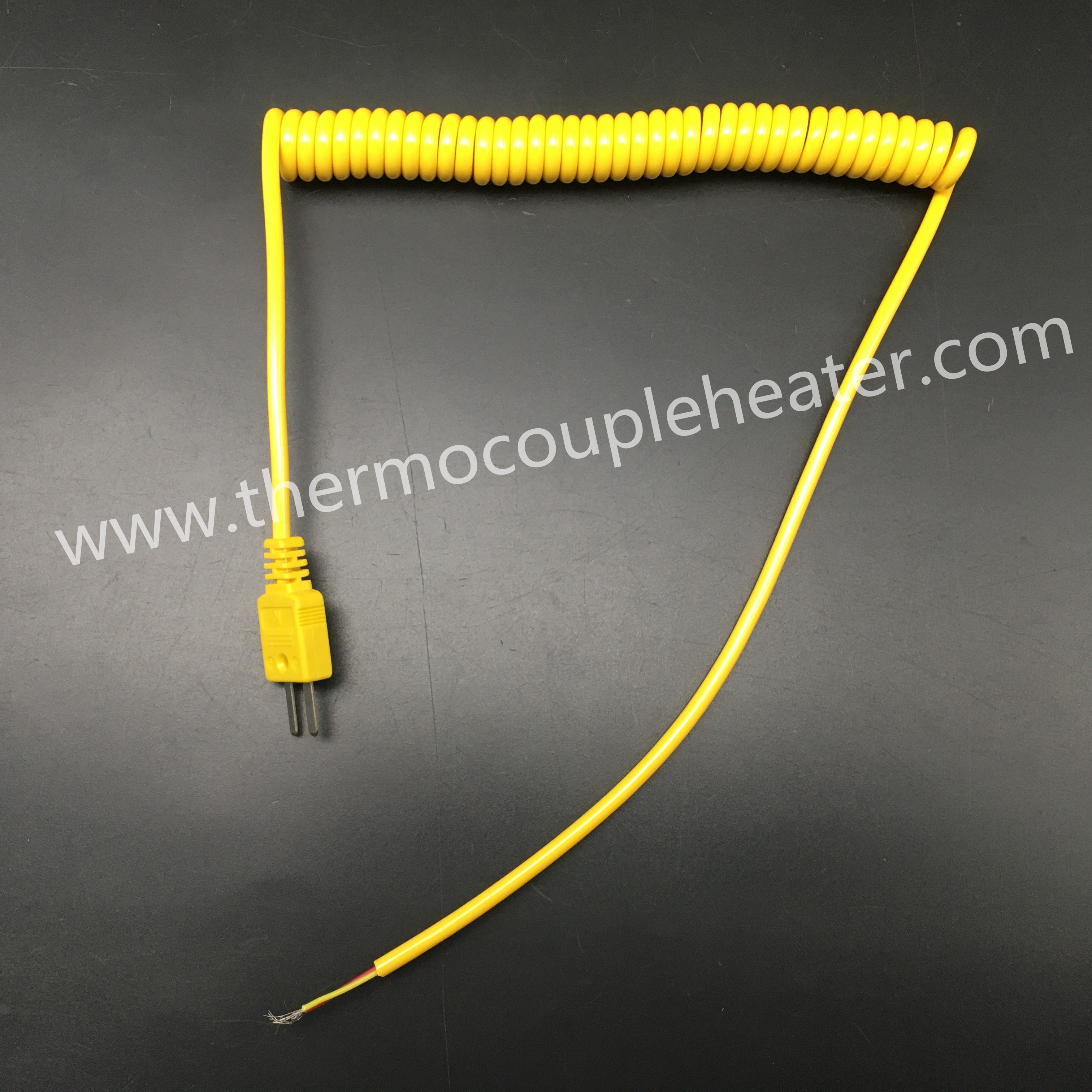

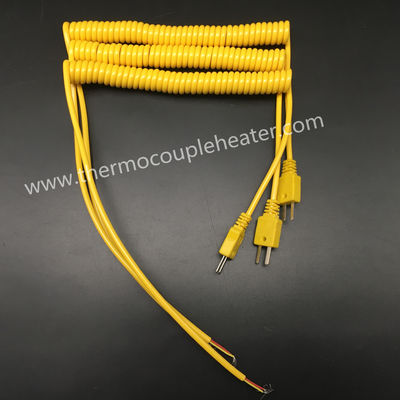

Insulation J K Type Mini Thermocouple Connector With 1.5m Curly Lead

Large Image : Insulation J K Type Mini Thermocouple Connector With 1.5m Curly Lead

Product Details:

Place of Origin:	China
Brand Name:	GME

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Packaging Details:	Standard Exporting Carton
Delivery Time:	7-10 working days
Payment Terms:	L/C, T/T, Western Union, Paypal
Supply Ability:	100,000 pcs per month

Contact Now

Detailed Product Description

Product Name:	Thermocouple Connector Curly Lead	Type:	K / J
Insulation:	, PP	Jacket:	PU
Extension Length:	1.5M / 2M	Color:	ANSI, IEC Standard
Highlight:	PTFE Insulation Mini Thermocouple Connector , 1.5m Curly Lead Mini Thermocouple Connector , J Type Mini TC Connector

Thermocouple Components Connector Mini Male Plug With Curly Lead Cable Type K / J

1. Description:

Thermocouple connectors are flat 2 pin TC connectors designed to connect temperature sensor instrumentation and a temperature controller or process control HMI automation panel. Male 2 pole TC plugs and matched female 2 prong TC jack pairs are stock items.

Thermocouple connector is widely used in thermocouple and RTD circuits ,it is best solution for quick and good contact. There are different models on offer for different applications.

2. Curly Lead Features:

- Original thermcouple alloy conductors

- Standard conductors 2x7/0.15mm

- Insulation: (200℃) or PP(Polypropylene 140℃)

- Jacket: PU(Polyurethane 100℃)

- Extension length 1.5m or 2.0m

- Integrated mini connector

- Different colors conform to ANSI and IEC standar

- Thermocouple K and J

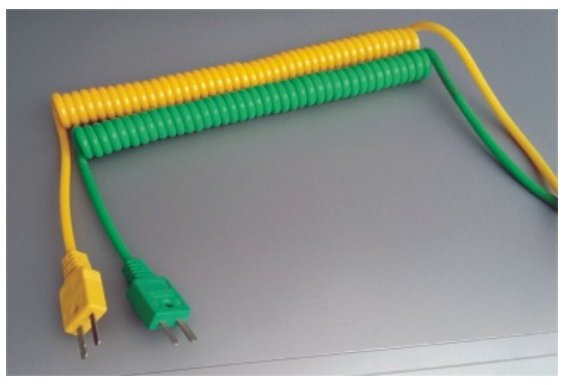

3. Color:

Insulation J K Type Mini Thermocouple Connector With 1.5m Curly Lead 0
