98.5% SiC Heater Element Dia8mm For High Temperature Electric Furnaces

98.5% SiC Heater Element Dia8mm For High Temperature Electric Furnaces

    • 98.5% SiC Heater Element Dia8mm For High Temperature Electric Furnaces
    • 98.5% SiC Heater Element Dia8mm For High Temperature Electric Furnaces
    • 98.5% SiC Heater Element Dia8mm For High Temperature Electric Furnaces
  • 98.5% SiC Heater Element Dia8mm For High Temperature Electric Furnaces

    Product Details:

    Place of Origin: China
    Brand Name: GME

    Payment & Shipping Terms:

    Minimum Order Quantity: 5pcs
    Packaging Details: Standard Export Packing
    Delivery Time: 5-20 working days
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 5,000 pieces per month
    Contact Now
    Detailed Product Description
    Material: Hexagonal Silicon Carbide Shape: Rod, U, W, H, Gun, Single Spiral, Double Spiral, Dumbbell, Door-like Type
    Density: 2.6-2.8g/cm3 Hardness: >9 Moh's
    Working Temperture: 600-1600℃ Application: High Temperature Electric Furnaces
    High Light:

    98.5% SiC Heater Element

    ,

    SiC Heater Element Dia8mm

    ,

    98.5% silicon carbide heater element

    Silicon Carbide SiC Ceramic Heating Elements High Temperature Industry Heater



    1. Introduction



    SiC Heater Element is a kind of non-mental high temperature electric heating element.It is made of selected high-purity green silicon carbide as raw material which is made into blank and silicon crystal under high temperature of 2400ºC. It mainly used for furnance heating temperature from 600C-1600ºC. It is widely used in electric heating of glass, chemical, electronic material etc.



    SiC Content 98.5%
    Type Air Heater
    Tube diameter 8mm to 50mm
    Voltage 110-480V
    Warranty 1 Year
    Material Silicon Carbide (SiC)
    Working temperature 600C-1600C
    Application Furnace heating

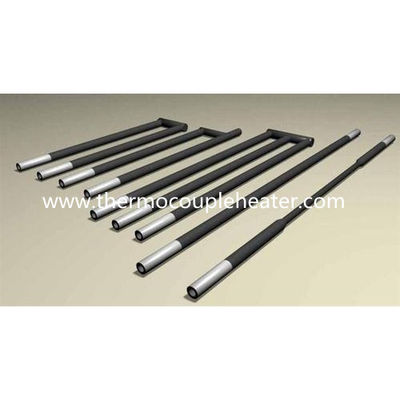

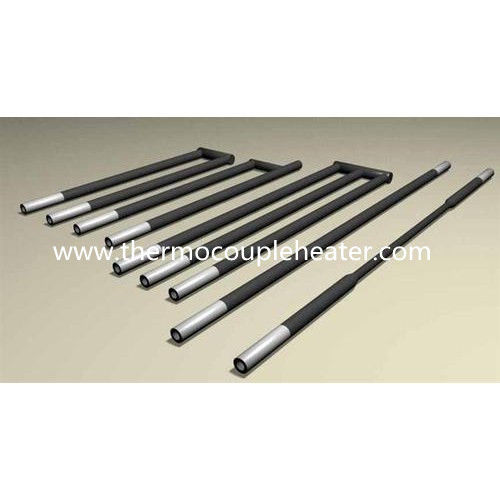

    2. Types



    1) U type

    98.5% SiC Heater Element Dia8mm For High Temperature Electric Furnaces

    2) W type

    98.5% SiC Heater Element Dia8mm For High Temperature Electric Furnaces

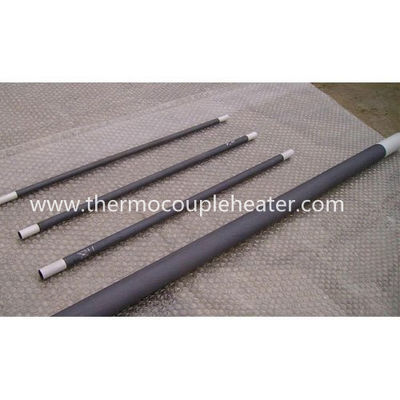

    3) Rod type



    98.5% SiC Heater Element Dia8mm For High Temperature Electric Furnaces

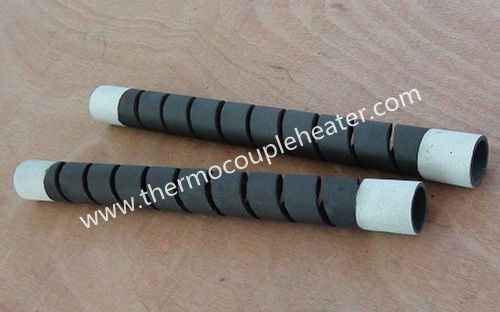

    4) Single spiral

    98.5% SiC Heater Element Dia8mm For High Temperature Electric Furnaces



    5) Dumb bell

    98.5% SiC Heater Element Dia8mm For High Temperature Electric Furnaces



    6) Double spiral

    98.5% SiC Heater Element Dia8mm For High Temperature Electric Furnaces



    3. Features



    1. withstand high temperature as high as 1600℃

    2. high strength and excellent shock resistance

    3. heat source is free of noise and air pollution

    4. anti-oxidization, anti-corrosion

    5. easy to installation and maintenance





    4. specification



    Silicon Carbide Rod SiC Heater Element Thermocouple Components for Industrial Heating



    5. Tips for usage



    1. Be protected against damp during storing or installing to ensure the performance ;

    2. Divided before assembling. The tolerance of the resistance of each one cannot exceed by 10% each other;

    3. Be careful when using and maintaining;

    4. When operating the electric furnace at the beginning, the voltage should be increased slowly and cannot be fully loaded at once. Otherwise the larger current will be resulted in the damage of heater.

    5. When heater is damaged and need to be changed, the resistance of new ne should follow the increasing resistance. If many are damaged or resistance increased too much, heater should be changed.
