| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 200meters |
|---|---|
| Price: | USD0.5-2 |
| Packaging Details: | paper carton or wooden carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Material: | Stainless Steel | Diameter: | 6-14mm |
|---|---|---|---|
| Color: | Silver | Length: | 1.5meter |
| High Light: | Spring Shower Hose 14mm,1.5 Meter SS Spring Shower Hose |
||

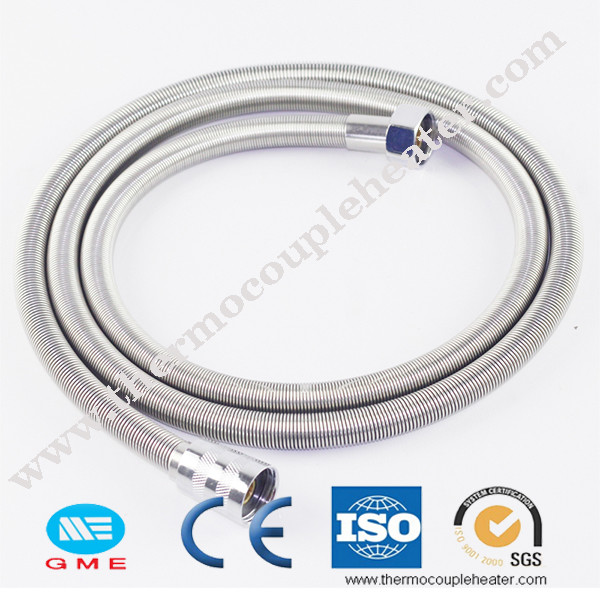

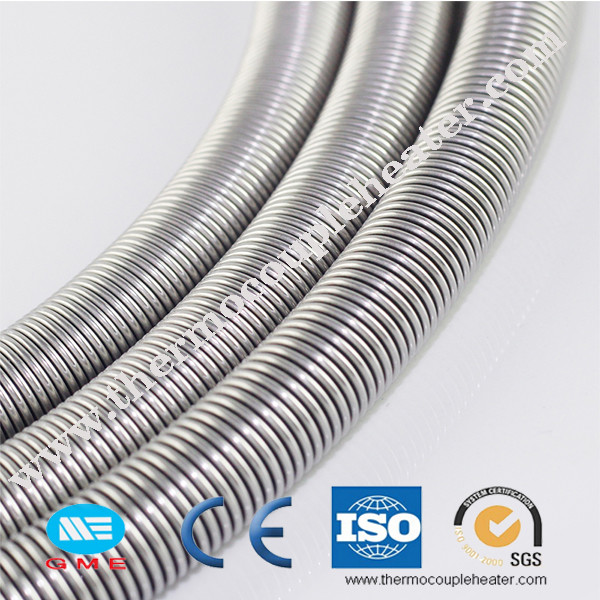

Good Quality Stainless Steel Strong Flexible Spring Shower Hose Spring Outer Tube
Description:

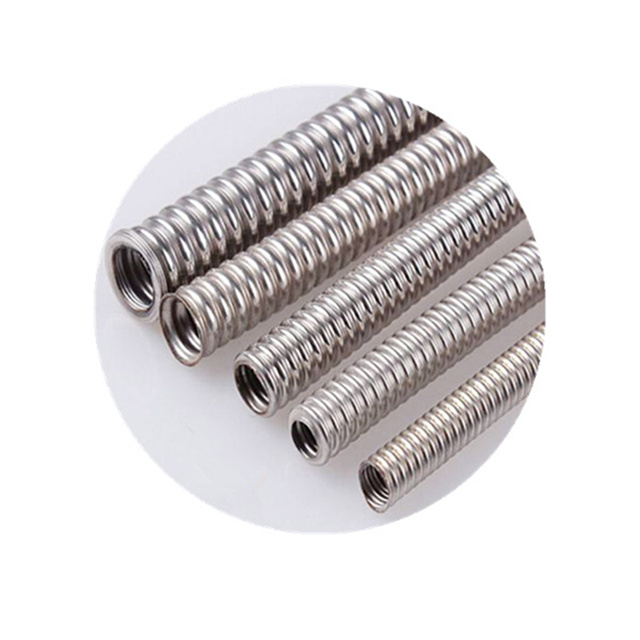

Stainless Steel Flexible Hose/Sleeve
1. Application for stainless steel hose
* Solar water heater or other types of water heater
* Piping of bathroom and Toilet
* Plumbing fixtures of special container,low and high cistern
* Hot and cold plumbing installation
* Machinery field
* Used on food-touch pipe connection
* Alternative plumbing pipe instead of copper
* Gas Pipe
2. Different connection types
* BSPT Taper Male,
* BSP Cone Female with swivel nut
* BSP Flat face Female with Swivel nut
* DIN2828 camlock couplings
* NPT Fittings
* Flange connections, the flange codes can be DIN2500, ANSI B 16.5, JIS B2210-84.
| No. | ID (mm) | OD (mm) | Wall thickness (mm) |
Working pressure (kg/cm2) |
Min.breaking pressure (kg/cm2) |
Min. Bending radius (±3mm) |
| 1 | 4.64-5.17 | 7.29-8.48 | 0.75 | 256 | 625 | 76 |
| 2 | 5.96-6.83 | 8.22-9.46 | 0.76 | 232 | 552 | 81 |
| 3 | 7.55-8.39 | 10.31-11.71 | 0.8 | 194 | 540 | 131 |
| 4 | 9.91-10.67 | 12.73-14.18 | 0.89 | 162 | 452 | 182 |
| 5 | 12.54-13.37 | 15.72-16.73 | 0.95 | 139 | 425 | 211 |
| 6 | 15.19-16.59 | 18.57-20.18 | 1 | 101 | 385 | 252 |
| 7 | 18.75-20.78 | 22.15-23.77 | 1.2 | 97 | 310 | 342 |
| 8 | 21.39-23.05 | 24.59-27.03 | 1.5 | 93 | 240 | 421 |
| 9 | 24.25-25.85 | 28.45-29.65 | 1.5 | 78 | 200 | 501 |
