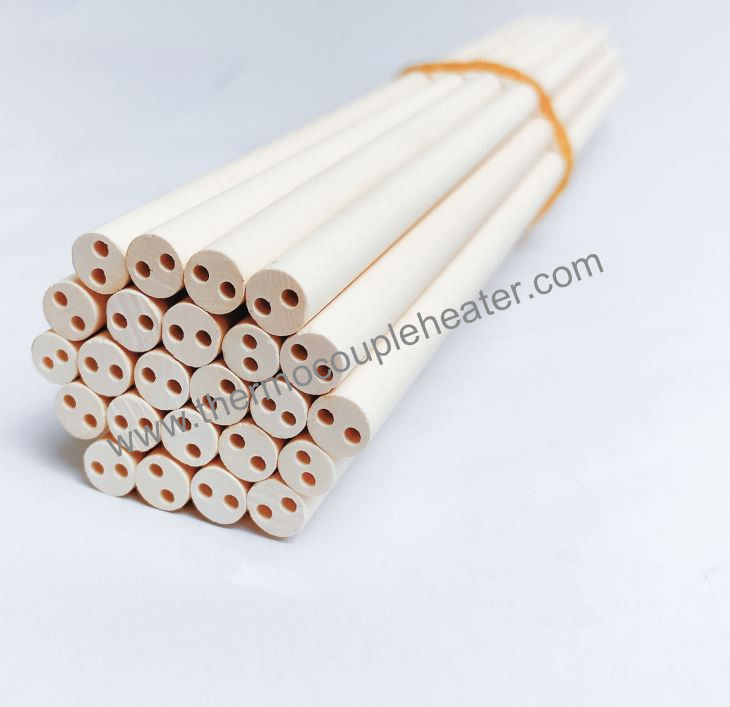

OD20mm Tubular MgO Insulator For Cartridge Heater

Large Image : OD20mm Tubular MgO Insulator For Cartridge Heater

Product Details:

Place of Origin:	China
Brand Name:	GME

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pieces
Packaging Details:	Standard Exporting Wooden Case
Delivery Time:	1-4 weeks
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	2,500,000 pcs per month

Contact Now

Detailed Product Description

Usage:	Insulator For Cartridge Heater	Material:	MgO
Shape:	Tube	Color:	White
Max.Working Temperature:	2000°C	Package:	Wooden Case
Highlight:	Tubular MgO Insulator , Cartridge Heater MgO Insulator , OD20mm Ceramic Insulator

High Purity Magnesium Oxide MgO Tube Rod Pipe Ceramic Insulator For Cartridge Heater

Features:

1. MgO: 98.3---99.9%

2. High resistance

3. Raw material from China,Australia,Germany , France

4. Competitive price

5. Professional service

6. Good quality with QC attached each parcel

Advantage:

1.High-quality products

2.Optimal price

3.Safe transportation

4.Sample service

5.Customized size

6.Compensate for broken goods

7.Safe package

8.Transportation safety

9.Low procurement risk

10.Long term cooperation

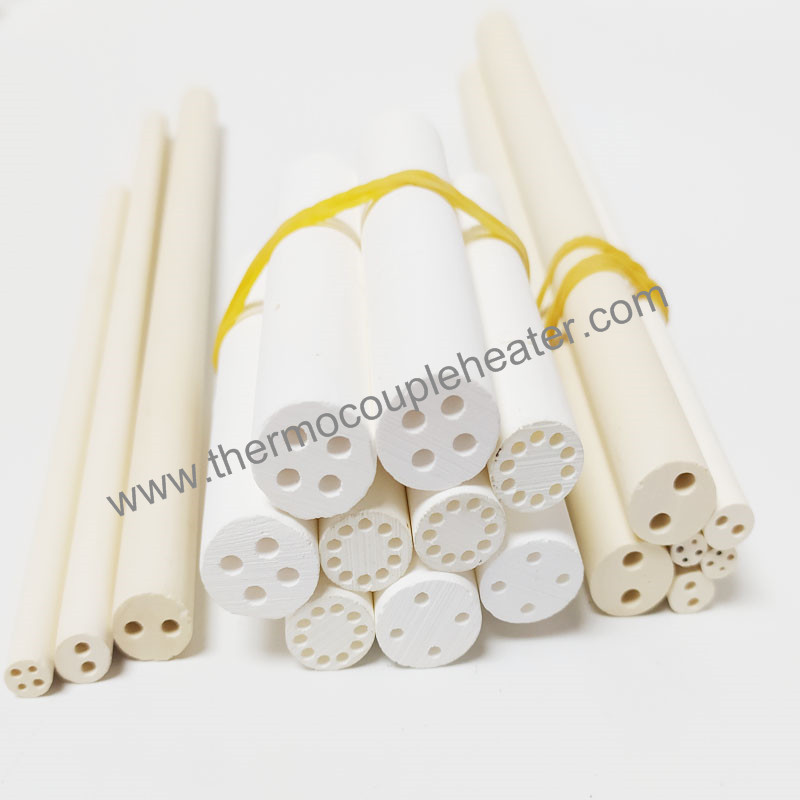

2/4 holes MgO tube for cartridge heaters:

Material	Magnesium Oxide
Mine MgO	≧97%-99%
Sea water MgO	≧99%-99.7%
Outer Diameter	Φ1.4-20mm
Inner Diameter	Φ0.4-8mm
Length	50-500mm
Color	White
Density	2.9g/cm3
Max Working Temperature	2000℃
Break Strength	110-200N
Withstand Voltage	2600V/minute no flash and breakdown

OD20mm Tubular MgO Insulator For Cartridge Heater 0
