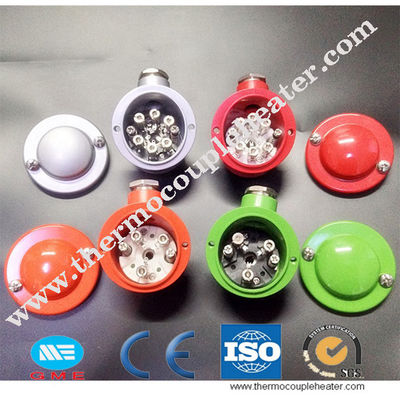

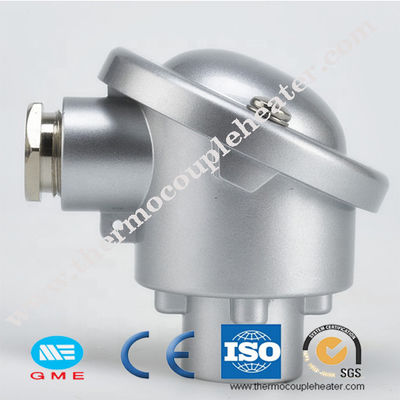

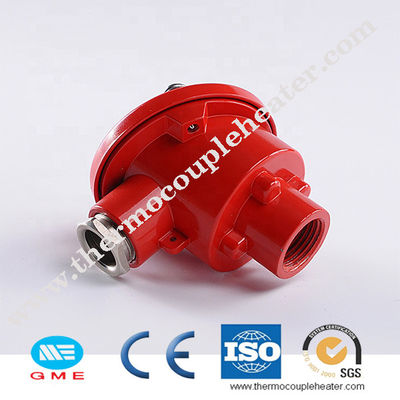

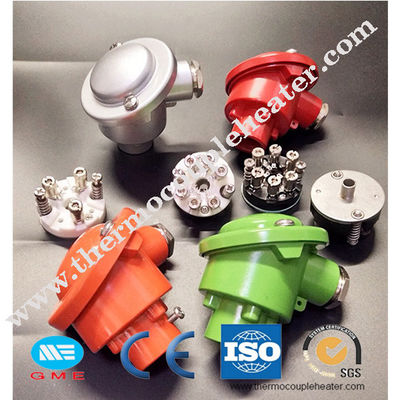

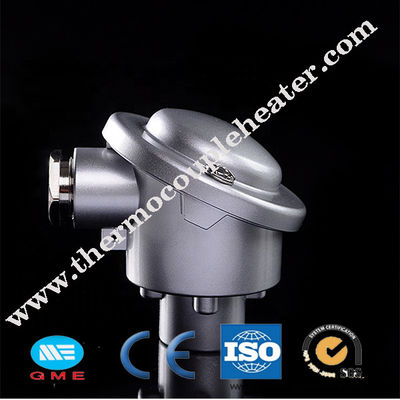

IP65 Die Casting Aluminum BA KD Thermocouple Head

Large Image : IP65 Die Casting Aluminum BA KD Thermocouple Head

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	cartons， pallet
Delivery Time:	7~10 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	100000 pcs per Month

Contact Now

Detailed Product Description

Material:	Aluminum Alloy	Material Of Wire:	Nickel Plated Iron/brass
Voltage:	12-480V	Probe Material:	Stainless Steel, Inconel600
Model Number:	BA/KD	Heating Element:	Nichrome Resistance
Mounting:	Thread/flange/none	Types Of Terminal Box:	Anti-spray/water-proof
Connection:	Thread
Highlight:	KD Thermocouple Head , BA Thermocouple Head , ip65 thermocouple connection head

BA/KD Thermocouple Head with aluminum die-casting BA/KD Thermocouple Head with aluminum die-casting

Description:

Beautiful appearance, bright paint
Large cavity, easy to connect
The protection performance conforms to national IEC529 "enclosure protection grade" IP65
Connecting thread to protection pipe:M12*1,M16*1,M20*1,M22*1,M24*1
Outlet thread: M20*1.5
Fixed two hole dimensions with wiring panel:H=36±1,33±1
Can match the spring plate
H = 33±0.1 can be assembled with foreign wiring boards or converters to international standards
Also can assemble various structures of flameproof thermocouple, thermal resistance
Large cavity, easy to connect

Specification:

Type: KSE&KNE head

Material: alloy-aluminum

Application: connection box

Color: all colors available

Protection level: IP65

Terminal block: 2P-C 3P-C,4P-C,6P-C

** Die-casting aluminum
** Lacquer painting&polyester powder coating
** Tested with thread gauge
** Smooth surface and nice outlooking
** Protection class IP65.

Part No.	Wire entry	tube entry
KNY12N12NS	1/2”NPT	1/2”NPT
KNY12N34NS	1/2”NPT	3/4”NPT
KNY34N12NS	3/4”NPT	1/2”NPT
KNY34N34NS	3/4”NPT	3/4”NPT
KNY12B12BS	1/2”BSPP	1/2”BSPP
KNY20M12BS	M20x1.5	1/2”BSPP
KNY20M14BS	M20x1.5	1/4”BSPP

IP65 Die Casting Aluminum BA KD Thermocouple Head 0
