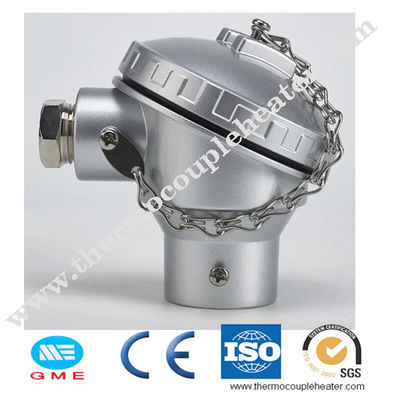

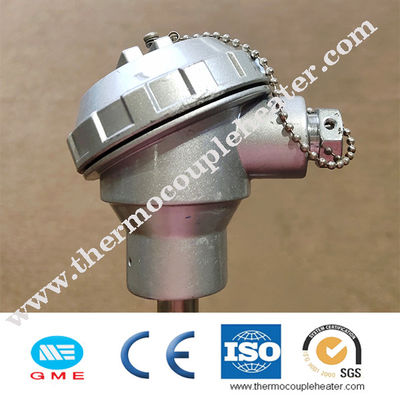

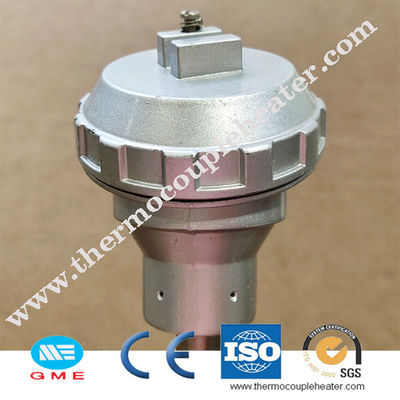

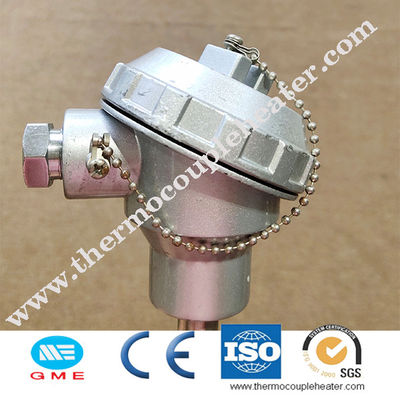

Thermocouple head KNE with aluminum die casting of temperature sensor
Description:
A Thermocouple is a sensor used to measure temperature. Thermocouples consist of two wire legs made from different metals. The wires legs are welded together at one end, creating a junction. This junction is where the temperature is measured. When the junction experiences a change in temperature, a voltage is created. The voltage can then be interpreted using thermocouple to calculate the temperature
1.cable entry size: M20*1.5 , NPT1/2'' , G1/2'' , pg16
bottom hole size: M24*1.5 , M16X1 , NPT1/2'' , G1/2''
2. Material : Aluminum,SUS304 or SUS 316 Excellent appearance,
Explosion Proof standard : DIIBT1 ~ T6 Conforming to international
standard IEC529 and IP65 approval. with various types of thermocouple and resistance bulbs.
3P - B (H=36) can assemble with explosion proof thermocouple and resistance bulbs which have.
3. Available in thermocouple types: K, T, J, N, Pt100 and others.Thick wall protective sheaths in stainless steel.
Related Insulation material:
1) Conductor insulated (PVC, Fiberglass, )
2) Jacket / Overall insulated (PVC, Fiberglass, )
3) Shield / Overbraid (Stainless steel or tinned copper)
Specification:
1) Cover diameter 83mm

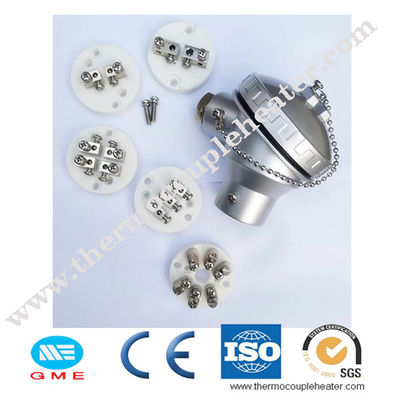

2) Ceramic terminal blocks:
mounting holes distance: 33±0.1mm, 40±0.1mm
3) wire entry: M20×1.5,NPT1/2", NPT3/4", G1/2 , G3/4 ", .
4) probe entry: M24×1.5, M33 ×1 , NPT1/2 , NPT3/4", G1/2, G3/4 ",
5) Packing condition: Plastic holder + internal carton(L460×W220×H90mm)
+ external carton(L470×W460×H300mm), 60pcs/ex-ctn
type bakelite thermocouple head
1) Material: Backlite
2) Painting: lacquer painting polyester powder coating
3) Color: Black RAL color code
| Order No. | Description | Terminal block | Weight | |
| Poles | Material | |||
| KNE-0 | Head | Without | 274g | |
| KNE+2P-C | Head & terminal block | 2 poles | Ceramic | 342g |
| KNE+3P-C | Head & terminal block | 3 poles | Ceramic | 356g |
| KNE+4P-C | Head & terminal block | 4 poles | Ceramic | 374g |
| KNE+6P-C | Head & terminal block | 6 poles | Cermic | 394g |
| KNE+2P-B | Head & terminal block | 2 poles | Bakelite | 330g |
| KNE+3P-B | Head & terminal block | 3 poles | Bakelite | 344g |
| KNE+4P-B | Head & terminal block | 4 poles | Bakelite | 358g |
| KNE+6P-B | Head & terminal block | 6 poles | Bakelite | 374g |
| N-2P-C | Terminal block | 2 poles | Ceramic | 68g |
| N-3P-C | Terminal block | 3 poles | Ceramic | 82g |
| N-4P-C | Terminal block | 4 poles | Ceramic | 100g |
| N-6P-C | Terminal block | 6 poles | Ceramic | 120g |
| N-2P-B | Terminal block | 2 poles | Bakelite | 56g |
| N-3P-B | Terminal block | 3 poles | Bakelite | 70g |
| N-4P-B | Terminal block | 4 poles | Bakelite | 84g |
| N-6P-B | Terminal block | 6 poles | Bakelite | 100g |
Application:
1) The main determining factors of what type thermocouple needs to be used in a application is temperature, environment, response time and accuracy.
2) The junction of the thermocouple can be grounded, ungrounded or exposed.
3) The thermocouple junction may be of many different styles, from tube type to a washer configuration.
Product use: for gas cookers, gas oven, outdoor heaters, volumetric gas water heaters and remove protection device.
