Electrical Heating Components Steatite Ceramic Insulator

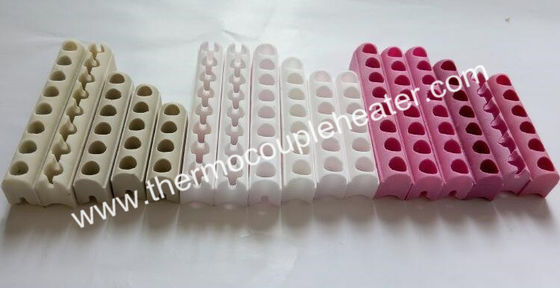

Large Image : Electrical Heating Components Steatite Ceramic Insulator

Product Details:

Place of Origin:	China
Brand Name:	GME

Payment & Shipping Terms:

Minimum Order Quantity:	5000 pieces
Packaging Details:	Pallet
Delivery Time:	2-3 weeks
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	2,500,000 pcs per month

Contact Now

Detailed Product Description

Usage:	Accessories Of Heating Elements	Application:	Electric Appliance Industry / Automotive Industry / Mechanical Industry / Engineering Industry / Electrical Heating Element Industry / LED Lighting Industry
Material:	Steatite Ceramics /C221 Ceramics /High Frequency Ceramics	Size:	2-8 Holes, With Or Without Slot
Color:	White / Grey / Pink	Producing Method:	Hot Pressing /Dry Pressing
Max.Using Temperature:	≥1000°C	Package:	Carton /Pallet/Wooden Case (According To Clients Requirement )
Highlight:	75HRA Electric Heater Components , 120Mpa Electric Heater Components , Ovens steatite insulator

Electrical Heating Components Steatite Ceramic Insulator

Description :

Material : Steatite Ceramics /C221 Ceramics /High Frequency Ceramics

Producing Method: Hot pressing /Dry pressing

Color : White / Grey / Pink

Packing :Carton /Pallet/Wooden case (According to clients requirement )

Delivery time : Depend on client’s requirement product.

Items Design: According to client’s drawing or samples

Steatite Ceramics Technical Parameter

Item	Test Condition	Unit &Symbol	Steatite Ceramic/C221
Mainly Content			Steatite
Bulk Density		g/cm3	≥2.6
Max.Using Temperature			≥1000°C
Water Absorption		%	0
Hardness		HRA	≥75
Compressive Strength	20° C	MPa	≥80
Toughness		Mpa	≥120
Dielectricity constant	1MHz.20°C	ετ	5.5
Dielectric strength		KV/mm	18
Volume Resistivity	20°C	Ω.cm20°C	> 1012

Features:

Steatite is used to support heating elements in electric heaters, toasters, and ovens.

Steatite is a good high voltage insulator. It holds up under thousands of volts without breaking down.

Steatite ceramic parts are usually small and are formed from dry powder in a compaction press. The parts are then fired in the kiln. Diamond abrasives are used to grind parts to size for high tolerance applications.

Application:

Electric appliance industry / Automotive industry / Mechanical industry /

Engineering industry / Electrical heating element industry / LED Lighting Industry
