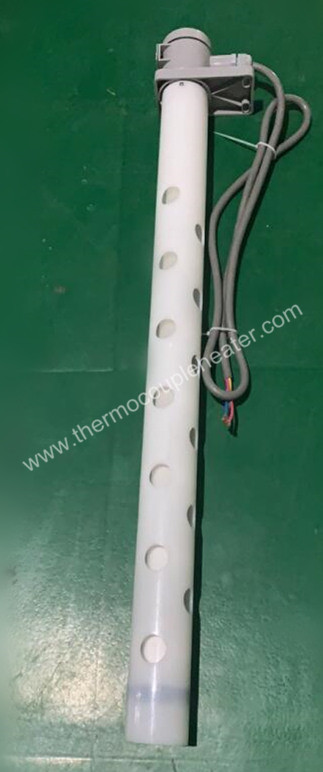

Corrosion Resistant PTFE Quartz Electric Immersion Heater

Quartz PTFE Immersion Heaters For Acid or Alkali Solutions Corrosion Resistance

For acidic solutions, quartz or PTFE () coated immersion heaters are used.

Quartz heaters are resisting pH solutions from 0 to 7, except Hyrdrofluoric acids and caustics. For Hydrofluoric acids of less than 9% concentration
we recommend PTFE coated immersion heaters.

Many nickel and chrome plating tanks have quartz heaters installed because for this application, they're more economic than PTFE coated heaters, which we also manufacture.

Extra caution should be used when installing and handling quartz and PTFE coated heaters.

Quartz heaters are built as over-the-side heaters up to 70in long, so they can be easily installed from the top.

Depending on power needs, we can group three heaters together; all well protected by a guard. (Polypro, CPVC for chrome applications
or stainless steel)

Our quartz immersion heaters are manufactured in three components:
Polypro guard
Quartz tube
Heating element

This construction reduces your costs since all three components can be purchased separately.

Temperature control systems and Liquid level safety devices must be used with this product.

Product Description

(1) Excellent CHEMICAL RESISTANCE: suitable for all kind of acid, alkaline, anodizing and pickling solutions

(2) Heaters materials is available for PTFE(Fluoropolymer):Heavy wall fluoropolymer (PTFE) covered stainless steel element reduces permeation and eliminates the need for gas purged systems. Guaranteed 100% pinhole free.

(3) Long service life: Low watt density design (10 wattsuare inch, 1.5 w/cm2) for long service life.

(4) PVC RESISTANT HEATERS HEAD

(5) Safety Grounded and Thermal protection:Replaceable thermal protectors is from 80°C to 105°C for solutions.

(6) WATTS: FROM 0.5KW to 9KW
(7) VOLTAGES:120-600 volts, Sing phase Only
