NSiC Thermocouple Protection Tube Thermocouple Accessories For Metal Casting

Name: NSiC Thermocouple Protection Tube Thermocouple Accessories For Metal Casting
Brand: Wuhan Global Metal Engineering Co., Ltd
Price: 4,999.50 USD
Availability: InStock

Large Image : NSiC Thermocouple Protection Tube Thermocouple Accessories For Metal Casting

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Packaging Details:	Packing In Wooden Case
Delivery Time:	15-20 days
Payment Terms:	T/T, Western Union

Contact Now

Detailed Product Description

Product Name:	NSiC Thermocouple Protection Tube	Material:	Nitride Bonded Silicon Carbide / NSiC
Coler:	Dark Grey	Usage:	Industrial Temperature Measurement
Temperature Range:	0-1500℃	Application:	Non Ferrous Metal Casting
Highlight:	thermocouple assemblies , thermocouple parts and components

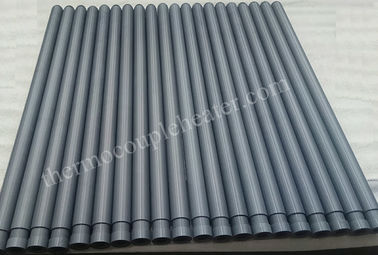

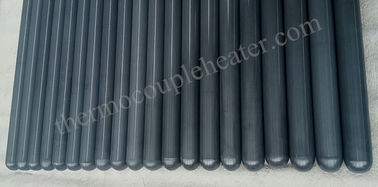

Nitride Bonded Silicon Carbide RSiC Thermocouple Protection Tube

1. NSiC Thermocouple Protection Tube Brief Introduction

Nitride Bonded Silicon Carbide Thermocouple Protection Tubes have the excellent properties of high strength,

wide working temperature range, oxidization resistance and corrosion resistance. It can be widely used in the

thermometric system of nonferrous metal melting furnace.

2. NSiC Thermocouple Protection Tube Characteristics

High temperature tolerance
Corrosion resistance
High bending strength
Oxidation resistance

3. NSiC Thermocouple Protection Tube Parameter.

NSiC Thermocouple Protection Tube Thermocouple Accessories For Metal Casting 0

NSiC Thermocouple Protection Tube Thermocouple Accessories For Metal Casting 1

Density g/cm3	Relative density	Elastic modulus GPa	Compression strength ratio25	Hardness GPa
3.26 0.02	>99.5	300320	4050	16 - 20
Fracture toughness /MPam1/2	Bending strength MPa	Poisson's ratio	Linear expansion coefficient 10-6K-1	Webuller modulus
6.09.0	9001000	0.25	3.13.3	1215
Thermal conductivity WmK-1	Specific resistance ratio	Corrosion resistance	Size stability	Magnetic
15~20	1018	Excellent	Excellent	NO

4. Thermocouple Ceramic Insulator Application

Furnace tube for resistance furnaces, heat treatment furnaces
Chemical analysis for steel and iron
Various insulationg parts for high temperature resistance and etching resistance
Temperature measuring meters
Protection and insulation for thermocouples and thermometers
