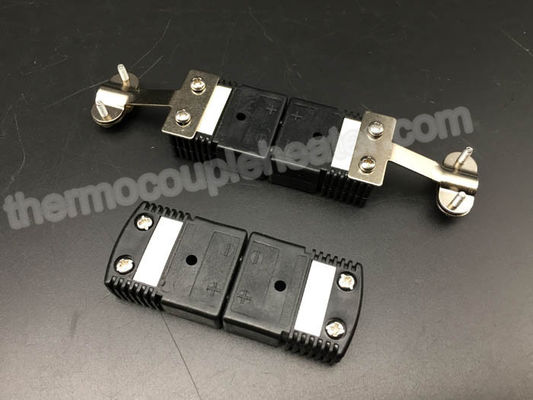

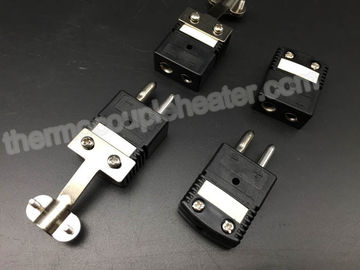

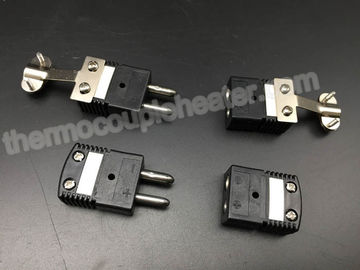

J Type Standard Thermocouple Connectors Thermocouple Components With Metal Wire Holder

J Type Standard Thermocouple Connectors Thermocouple Components With Metal Wire Holder

    • J Type Standard Thermocouple Connectors Thermocouple Components With Metal Wire Holder
    • J Type Standard Thermocouple Connectors Thermocouple Components With Metal Wire Holder
    • J Type Standard Thermocouple Connectors Thermocouple Components With Metal Wire Holder
  • J Type Standard Thermocouple Connectors Thermocouple Components With Metal Wire Holder

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE & ISO
    Model Number: J Type

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pcs
    Price: Negotiation
    Packaging Details: Exported Case Packing
    Delivery Time: 10-15 working days after received your payment
    Payment Terms: T/T, Western Union, D/P, L/C, Paypal
    Supply Ability: 25,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: J Type Standard Thermocouple Connectors With Metal Wire Holder Temperature Range Range: 0--600 Centigrade
    Materials: Thermoplastic Types: K, S, N, J, T, E
    Usage: Industrial, Thermocouple Accessories Material: Black
    Conductor Material:: Chromel, Alume Application: Industria
    High Light:

    thermocouple assemblies

    ,

    thermocouple parts and components



    J Type Standard Thermocouple Connectors With Metal Wire Holder




    1. Product Description



    Thermocouple connectors are  flat 2 pin TC connectors designed to connect temperature sensor instrumentation and a temperature controller or process control HMI automation panel. Male 2 pole TC plugs and matched female 2 prong TC jack pairs are stock items.



    Thermocouple connector is widely used in thermocouple and RTD circuits ,it is best solution for quick and good contact. There are different models on offer for different applications.





    2.  Characteristics

    • Well designed body ensure good insulation inside, and well designed pins construct ensure good contact.
    • Available in all color code standard. ANSI color code standard will be the one if the customer do not have special requirements.
    • Original thermocouple alloy material pins, and spring loaded inserts.
    •  Pins are polarized
    • Solid pins and hollow pins are both available, offer good contact and competitive price.
    • Maximum ambient temperature for the thermoplastic body continuous usage is 200 degrees celsius.
    • Thermoplastic body and ceramic material body are both available.


    3. Thermocouple Connector Parameter.


    Wire size



    • Accepts wires from 0.2 mm to 2.0 mm.
    • Maximum cable diameter 8.0 mm.


    Max. Temperature



    • 200 Deg. C for thermoplastic body
    • 650 Deg. C for ceramic body

    J Type Standard Thermocouple Connectors Thermocouple Components With Metal Wire Holder





    J Type Standard Thermocouple Connectors Thermocouple Components With Metal Wire Holder


    Mark Material Color
    K Nickel chrome - nickel silicon yellow (ANSI), green (IEC)
    J Iron-copper nickel Black
    N Silicon nickel chrome - nickel silicon magnesium Orange
    T Copper - copper nickel blue
    E Copper nickel- chrome nickel purple
    R/S Copper - copper nickel green



    4. Thermocouple Connector Application


    This thermocouple connector is widely used in the thermocouple and RTD circuits and instrument machine.


    5. Thermocouple Connector Connector



    • Good Quality :We have strict quality control system .Good reputation in the foreigner market.
    • Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
    • Low MOQ: It can meet your promotional business very well.
    • OEM Accepted : We can produce any your design as long as you provide us the drawing.
    • Good Service : We treat clients as friend.

    J Type Standard Thermocouple Connectors Thermocouple Components With Metal Wire Holder
