Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
|Place of Origin:||China|
|Minimum Order Quantity:||10pcs|
|Packaging Details:||Carton or wooden crate or as per your request|
|Delivery Time:||10 working days or above|
|Payment Terms:||L/C, T/T,PAYPAL|
|Supply Ability:||100000pcs per month|
|Product Name:||8mm Diameter W-shaped Industrial Stainless Steel 304 Tubular Heaters With M14 Screws||Application:||Industrial Heating Elements|
|Sheath Material:||Incoloy 800, SS304, SS321, SS316||Voltage:||Customized|
thermostatic tubular heater,
tubular heater elements

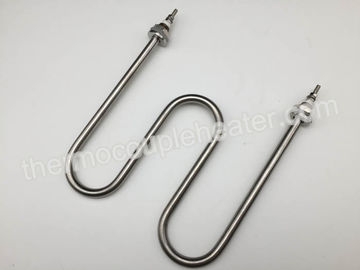

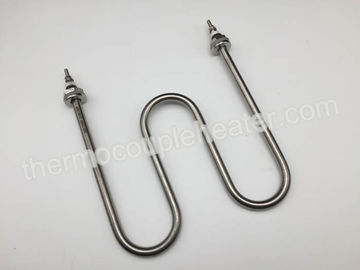

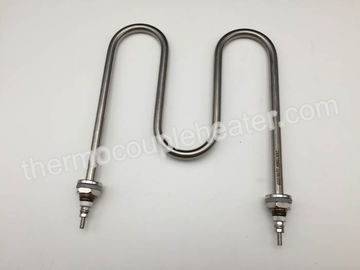

W - Shaped Industrial Tubular Electric Heaters With M16 Screws , Customized Power
Tubular heaters are produced using Incoloy, stainless steel or Copper sheath materials and also there is huge variety of selection of termination styles available. Insulation of Magnesium offers greater heat transfer.
Tubular heaters can be used in any application. Straight tubular can be inserted in machined groves for conductive heat transfer and formed Tubular provides consistent heat in any type of special application.
Tubular heating element are custom designed in a various shapes to as client’s requirements for direct immersion in liquids such as water, oils, solvents and process solutions, molten materials as well as air and gases.
|Material||Material Max. Temp. °C||Application|
|Copper||150||Water, non-corrosive liquids|
|Stainless Steel 304||650||Water,Corrosive liquids, food processing|
|Stainless Steel 316||650||Corrosive liquids,|
|Stainless Steel 321||650||intergranular corrosion situation|
|Incoloy 800||800||Water ,Corrosive liquids, air, clam|
1. The tube sheath materials available in SUS304,SUS316,SUS321 INCOLOY840,Incoloy800
2. Tube Diameter : 6.6mm ~ 25mm.
3. The surface load of the heating tube is 9.8W/cm2.
1. Quick temperature raising rate
2. Longer transfer of heat radiation
3. No contamination from dust: No convection needed
4. High safety: No spark, no naked fire, highly insulated, the radiation of the harmony heater is not harmful to human bodies
5. Low cost with long service life and high efficiency
6. Lower power needed
7. Fast heat exchange rate
8. Shorter process time
9. Easy installation
1.Application for home is main heating element and micro-wave oven
2.Application for any need heating's industry: textile printing,shoes making, painting ,food ,electron, medicine,textile,wooden,paper making,automobile,plastic,furniture,metal,hottreatment,packing machine etc.
