Thermoplastic Mini Type K Thermocouple Connector Male And Female Mini Size

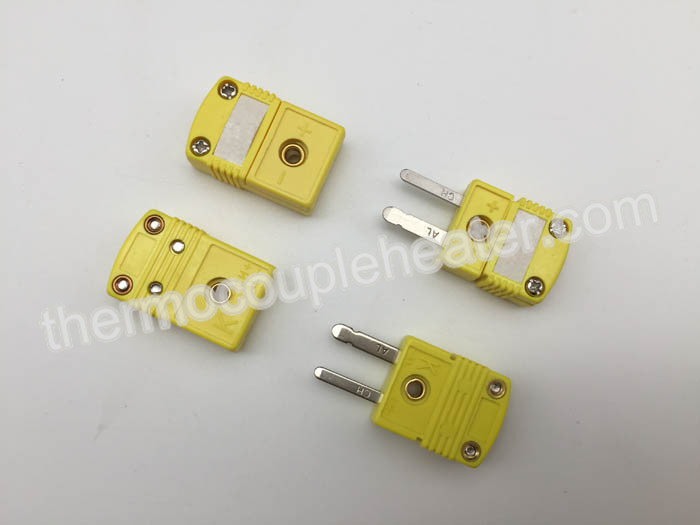

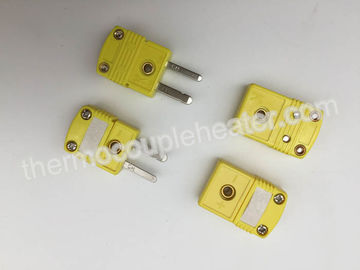

Thermoplastic Mini Type K Thermocouple Connector Male And Female

1. Description

Thermocouple connectors are mini size flat 2 pin TC connectors designed to connect temperature sensor instrumentation and a temperature controller or process control HMI automation panel. Male 2 pole TC plugs and matched female 2 prong TC jack pairs are stock items.

2.  Characteristics

• Thermoplastic body and ceramic material body are both available.
• Original thermocouple alloy material pins, and spring loaded inserts.
•  Pins are polarized
• Well designed body ensure good insulation inside, and well designed pins construct ensure good contact.
• Available in all color code standard. ANSI color code standard will be the one if the customer do not have special requirements.
• Solid pins and hollow pins are both available, offer good contact and competitive price.
• Maximum ambient temperature for the thermoplastic body continuous usage is 200 degrees celsius.

3. Thermocouple Connector Parameter.

Wire size

• Accepts wires from 0.2 mm to 2.0 mm.
• Maximum cable diameter 8.0 mm.

Max. Temperature

• 200 Deg. C for thermoplastic body
• 650 Deg. C for ceramic body

4. Thermocouple Connector Application

This thermocouple connector is widely used in the thermocouple and RTD circuits and instrument machine.

5. Thermocouple Connector Connector

• Good Quality :We have strict quality control system .Good reputation in the foreigner market.
• Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
• Low MOQ: It can meet your promotional business very well.
• OEM Accepted : We can produce any your design as long as you provide us the drawing.
• Good Service : We treat clients as friend.
