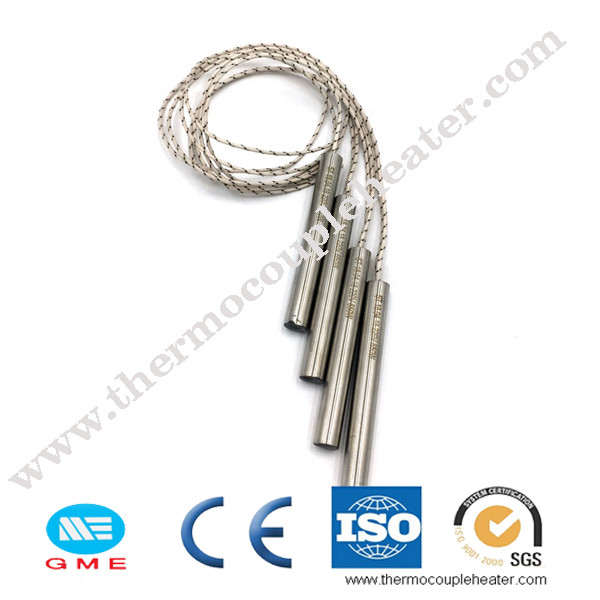

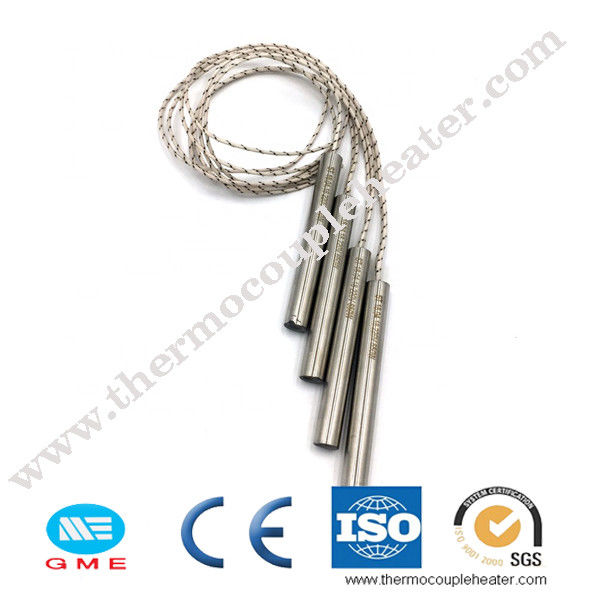

Mold Heating Element Miniature Cartridge Heater With Long Life Service Time

Mold Heating Element Miniature Cartridge Heater With Long Life Service Time

    • Mold Heating Element Miniature Cartridge Heater With Long Life Service Time
    • Mold Heating Element Miniature Cartridge Heater With Long Life Service Time
    • Mold Heating Element Miniature Cartridge Heater With Long Life Service Time
    • Mold Heating Element Miniature Cartridge Heater With Long Life Service Time
  • Mold Heating Element Miniature Cartridge Heater With Long Life Service Time

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: ISO/CE/UL/CSA

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Price: USD 1-100 FOB Shanghai/pc
    Packaging Details: Boxes or Wooden Cartons
    Delivery Time: 7-15 work days
    Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram, L/C
    Supply Ability: 10000pcs/Month
    Contact Now
    Detailed Product Description
    Lead Wire: Silicon, Glassfiber Shealth Material: SS304 ,SS321 ,SS316
    Color: Biack And White Wattage Tolerance: +5%, -10%
    Application: Oil, Water Or Other Liquid Etc Power Source: Electric
    Voltage: 6V To 650v Dimension(L*W*H): Customizable
    Type: Air Heater, Cartidge Heaters Insulation: Mgo Powder
    Thermocouple: J Type, K Type Etc
    High Light:

    cartridge immersion heater

    ,

    cartridge heater with thermocouple

    Great Quality Mold Heating Element Cartridge Heater at great price



    Description:



    1) Mold Heating Element Cartridge Heaters are used largely used to heat liquid, solid or gas, the application in plastic industry is very wide, such as hot runner system,smallmould heating ,plastic package ,Medical equipment plastic ,plastic injection molding machine nozzle heating, Package and cartridge is also used in the cigarette industry, footwear industry, thermoforming machinery.

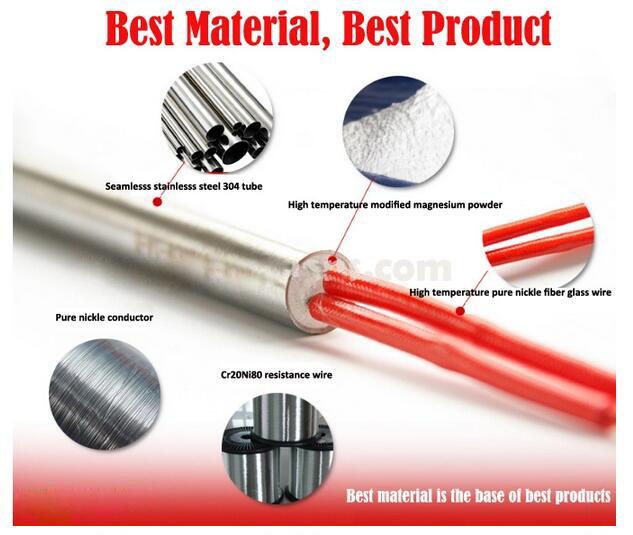

    2) High-wattage cartridges belong to a new generation of electric heating elements; they make it possible to use high watt loads in small spaces, thus ensuring excellent reliability in heavy-duty work conditions. Their special construction technology makes them the most advanced type of heating elements. The entire length of the wire wound around a magnesium oxide core is in a faraway position from the axis of the cartridge, very close to the metal sheath, with a very thin and compressed insulating wall in between; this allows excellent heat exchange that allows a much lower temperature of the resistance wire than in other heaters in which the wire is in a deeper position. Besides the use of advanced technology and precise inspection techniques in their manufacturing, Ultramar cartridge heater owe their total reliability to the use of first-class material from the best sources in the market.




    Specification:



    • Tube diameter: Φ3mm-Φ30mm

    • Tube Material: SS304, SS316, SS321 and NICOLOY800 etc

    • Insulation Material: High-purity MgO

    • Conductor Material: Ni-Cr or Fe-Cr-Al Resistance Heating Wire

    • Wattage density: high/middle/low (5-25w/cm2)

    • Lead Connection Option: Crimped or Swaged leads

    • Lead wire type: 10" Standard (/silicone high temperature fiberglass)



    Sheath material SUS304,321,316,Incoloy800,840
    Wattage Tolerance +5%, -10%
    Resistance tolerance +10%, -5%
    Voltages available 380V,240V, 220V,110V,36V,24V or 12V
    Max operating temp 800ºC
    Length tolerance ±1 mm
    Diameter tolerance -0.02mm
    Standard Cold Zone 5-10mm
    Thermocouple Location type J or K are available
    Insulation resistance (cold) ≥ 500 MΩ
    Maximum leakage current (cold) ≤ 0.5 mA




    Mold Heating Element Miniature Cartridge Heater With Long Life Service Time
