| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | ISO/CE/UL/CSA |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | USD 1-100 FOB Shanghai/pc |
| Packaging Details: | Exported Case Packing |
| Delivery Time: | 7-15Wroking Days |
| Payment Terms: | T/T, Western Union, L/C,PayPal |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Cartridge Heater | Thermocouple: | None |
|---|---|---|---|
| Tube Material: | High Quality 304SS, 316L | Resistance Wire: | Ni80Cr20 |
| Insulation Material: | 99.99% High Purity Magnesium | Tolerance Of Length: | +/-1.5% |
| Wattage: | 500W | ||
| High Light: | cartridge immersion heater,cartridge heater with thermocouple |
||

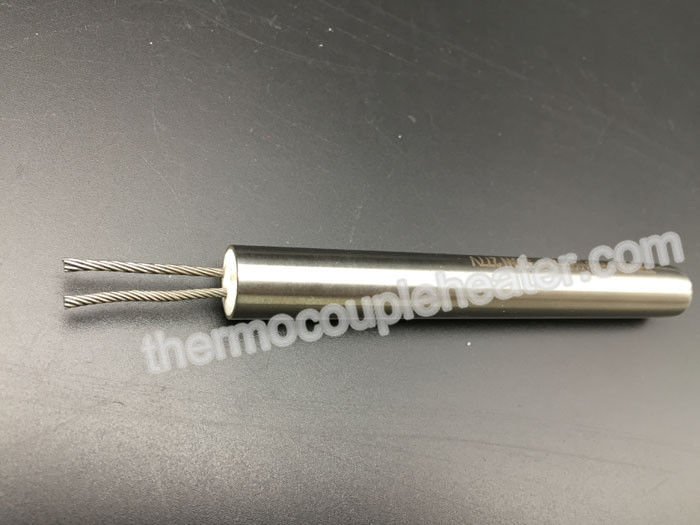

Stainless Steel Sheath Diameter 12.60MM Cartridge Heaters With 1 Inch Pin
Description:
Cartridge heater is a piece of heating elements made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr20/80). It is used to heat in plastic injection moulds, dies, platens ….Cartridge
heaters are most frequently used for heating metal parts by insertion into drilled holes. For easy installation, the heaters are made slightly undersize relative to their nominal diameter.
GME produced cartridge heater sprovide superior heat transfer, uniform temperatures, resistance to oxidation and corrosion and long life even at high temperatures.Our experience ensures that the performance and life expectancy of our cartridge heaters supersedes the cartridge heater of other companies.
Feature
Technical Details
| 1 | Inside magnesium oxide insulation material: | 99.99% high purity magnesium oxide |
| 2 | Heating element: | high durance and high temperature NiCr2080 heating elements from Germany |
| 3 | TC material: | High quality TC elements to ensure ±5 ℃ tolerance |
| 4 | Max working temperature: | 400℃ |
| 5 | High voltage stability test: | Less than 0.5mA leak under 1000V for 30 seconds |
| 6 | OD range: | 3mm-32mm |
| 7 | The range of the Total Length: | 25mm----2500mm |
| 8 | Maximum power density: | 40w/cm² |
| 9 | Unheated zone: | 10mm at lead end and about 5mm at bottom |
| 10 | Lead options: | A: Solid Nickel Pin: wire 300℃ or 500℃ B: Swaged in wire: 500℃ wire coming from inside |
Applications:
Usually, cartridge heaters are used to heat solids such as injection presses heating plates or various tools; On the other hand, they are also used for heating up water and gases under certain conditions. Especially, it is widely used in automotive industry. Cartridge heaters are also commonly found in the chemical, electronics, medical equipment, packing and nuclear industries.
• Shoe Making Industry
• Semiconductor chamber heating
• Semiconductor wafer lead connection
• Semiconductor wire and die bonding
• Freeze protection and de-icing of equipment in cold climates or applications
• Humidity control
• Test sample heating in gas chromatography
• Marking & Sealing Machinery
• Seal bars in Packaging Industry
• Hot Runner Bushings
• Mold die and platen heating
• Medical & Laboratory Apparatus
