High Efficiency Split Sheath Cartridge Heaters For Machinery Heating Exchange

High Efficiency Split Sheath Cartridge Heaters For Machinery Heating Exchange

    • High Efficiency Split Sheath Cartridge Heaters For Machinery Heating Exchange
    • High Efficiency Split Sheath Cartridge Heaters For Machinery Heating Exchange
  • High Efficiency Split Sheath Cartridge Heaters For Machinery Heating Exchange

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: ISO/CE/UL/CSA

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Price: USD 1-100 FOB Shanghai/pc
    Packaging Details: Exported Case Packing
    Delivery Time: 7-15Wroking Days
    Payment Terms: T/T, Western Union, L/C,PayPal
    Supply Ability: 10000pcs/Month
    Contact Now
    Detailed Product Description
    Product Name: Split Cartridge Heater Thermocouple: None
    Tube Material: High Quality 304SS, 316L Resistance Wire: Ni80Cr20
    Insulation Material: 99.99% High Purity Magnesium Tolerance Of Length: +/-1.5%
    Wattage: 500W
    High Light:

    cartridge immersion heater

    ,

    cartridge heater with thermocouple



    High Efficiency Split Sheath Cartridge Heater for Machinery Heating Exchange





    Description:

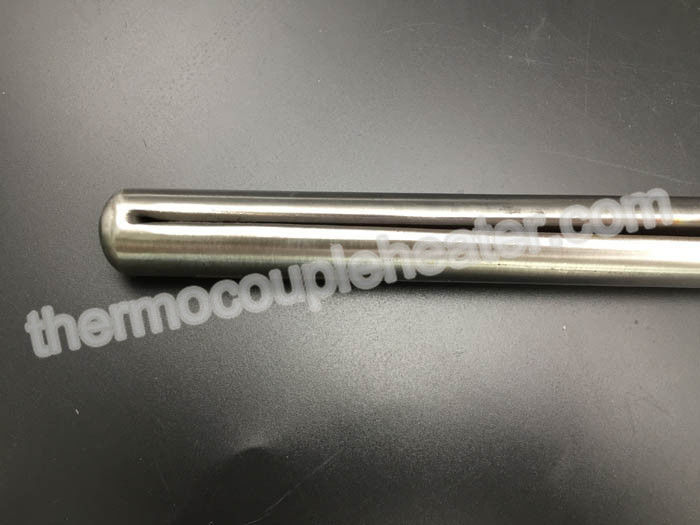

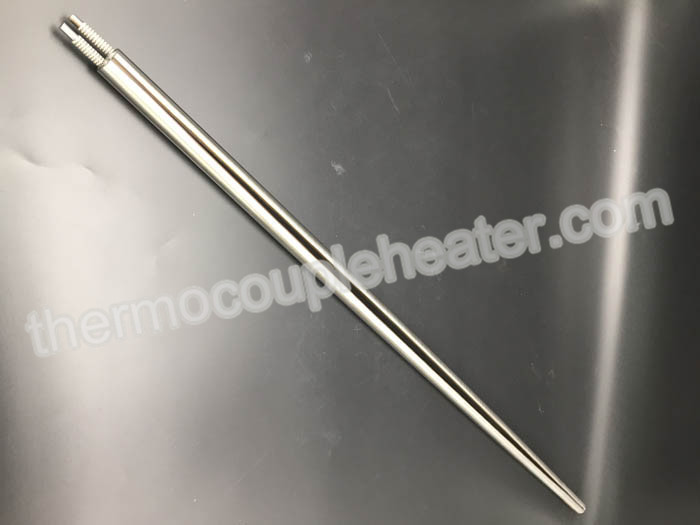

    Split-Sheath Cartridge Heaters can be constructed to deliver full heat to tip, making them suitable for injection molding applications. Split-sheath construction allows each half of heater to expand independently. Continuous-coil design eliminates cold spots between sections. The unique split-sheath design, the heaters run more efficiently, last longer, and are more easily replaced than conventional heaters, dramatically reducing the overall cost of process heating. Split-sheath construction allows each half of the heater to expand independently when energized for exceptional metal-to-metal contact with the surrounding bore. This in turn maximizes heat transfer, even in oversized bores. Greater compaction of magnesium oxide around the coil provides superior heat conduction to the outer sheath, resulting in more responsive sheath temperatures, higher operating temperatures with cooler internal operation, and up to five times longer life.



    Feature



    -Technical data sheet:
    Tube material: SUS304, SUS321, SUS310S, SUS316L, INOC800, INCO840
    Dia. Making range: 9.5mm - 25mm
    Length making range: 13mm - 2000mm
    Heating wire: Cr20Ni80
    Lead wire: standard length 300mm, can be longer as per your request
    Working temperature: 750 degree C Max.
    Voltage: 12V - 440V
    Wattage density: 8W - 25W / cm2
    Wattage tolerance: +5% -10%
    Resistance tolerance: +10% - 5%
    Leakage current: Less than 0.5mA
    Certificate: CE



    Technical Details



    1 Inside magnesium oxide insulation material: 99.99% high purity magnesium oxide
    2 Heating element: high durance and high temperature NiCr2080 heating elements from Germany
    3 TC material: High quality TC elements to ensure ±5 ℃ tolerance
    4 Max working temperature: 400℃
    5 High voltage stability test: Less than 0.5mA leak under 1000V for 30 seconds
    6 OD range: 3mm-32mm
    7 The range of the Total Length: 25mm----2500mm
    8 Maximum power density: 40w/cm²
    9 Unheated zone: 10mm at lead end and about 5mm at bottom
    10 Lead options: A: Solid Nickel Pin: wire 300℃ or 500℃
    B: Swaged in wire: 500℃ wire coming from inside



    Applications:



    Mould tools, Tooling, Platens, Packaging Machinery, Heat Sealing Equipment, Plastic Process Machinery, Food Process Machinery, Catering, Printing, Hot Foil Printing, Shoe manufacturing Machinery, Laboratory / Test Equipment, Vacuum Pumps, and others.
