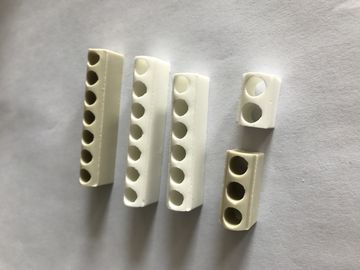

Electrical Heating Thermocouple Components Steatite Ceramic Insulator

Large Image : Electrical Heating Thermocouple Components Steatite Ceramic Insulator

Product Details:

Place of Origin:	wuhan, China
Certification:	CE & ISO

Payment & Shipping Terms:

Minimum Order Quantity:	2000 pcs
Packaging Details:	Exported Case Packing
Delivery Time:	10-15 working days after received your payment
Payment Terms:	L/C, T/T
Supply Ability:	2,500,000pcs per month

Contact Now

Detailed Product Description

Type:	Electrothermal Ceramics	Material:	Steatite
Color:	White	Packaging Details:	Carton/Pallet
Usage:	Industrial, Thermocouple Accessories	Temperature Range Range:	0--1300 Centigrade
Highlight:	thermocouple assemblies , thermocouple parts and components

Electrical Heating Thermocouple Components Steatite Ceramic Insulator

Description :

Material : Steatite Ceramics /C221 Ceramics /High Frequency Ceramics

Producing Method: Hot pressing /Dry pressing

Color : White

Packing :Carton /Pallet/Wooden case (Accroding to clients requirement )

Delivery time : Depend on client’s requirement product.

Items Design: According to client’s drawing or samples

Steatite Ceramics Technical Parameter

Item	Test Condition	Unit &Symbol	Steatite Ceramic/C221
Mainly Content			Steatite
Bulk Density		g/cm3	≥2.6
Max.Using Tempertature			≥1000°C
Water Absorption		%	0
Hardness		HRA	≥75
Compressive Strength	20° C	MPa	≥80
Toughness		Mpa	≥120
Dielectricity constant	1MHz.20°C	ετ	5.5
Dielectric strength		KV/mm	18
Volume Resistivity	20°C	Ω.cm20°C	> 1012

Steatite is used to support heating elements in electric heaters, toasters, and ovens.

Steatite is a good high voltage insulator. It holds up under thousands of volts without breaking down.

Steatite ceramic parts are usually small and are formed from dry powder in a compaction press. The parts are then fired in the kiln. Diamond abrasives are used to grind parts to size for high tolerance applications.

Application :

Electric appliance industry/Automotive industry/Mechanical industry

Engineering industry/Electrical heating element industry/LED Lighting Industry

Electrical Heating Thermocouple Components Steatite Ceramic Insulator 0

Electrical Heating Thermocouple Components Steatite Ceramic Insulator 1

Electrical Heating Thermocouple Components Steatite Ceramic Insulator 2
