Hot Runner Tubular Heater Manifolds Flexible Heater Chrome Nickel Steel

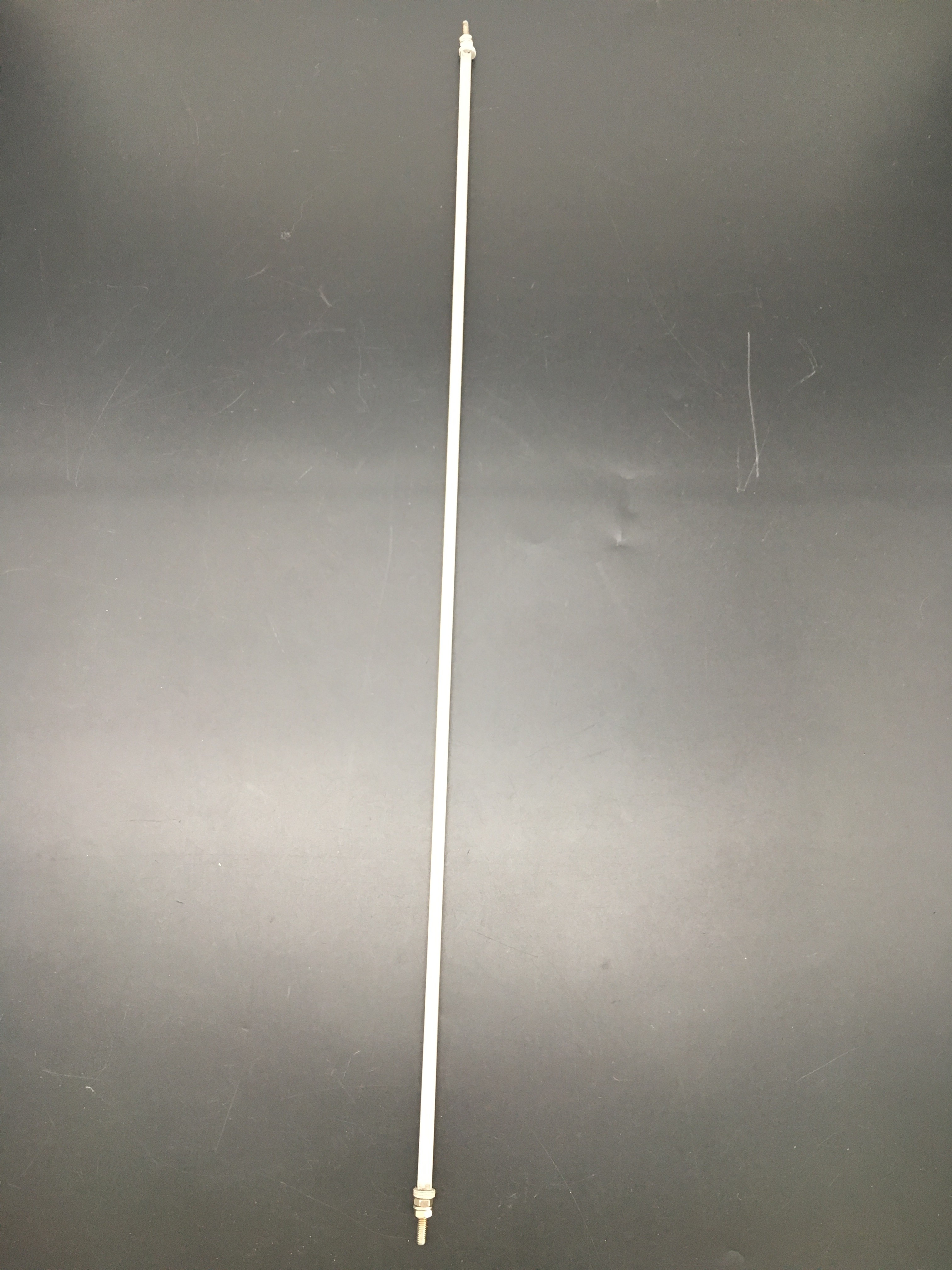

Large Image : Hot Runner Tubular Heater Manifolds Flexible Heater Chrome Nickel Steel

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	ISO

Payment & Shipping Terms:

Minimum Order Quantity:	100 PCS
Price:	Negotiable
Packaging Details:	export carton, wooden box
Delivery Time:	15 days after receiving full payment
Payment Terms:	L/C, T/T, Western Union,Paypal
Supply Ability:	10000 pcs/month

Contact Now

Detailed Product Description

Size:

6mm*6mm*1450mm

Voltage:

Power:

2600W

Highlight:

thermostatic tubular heater

tubular heater elements

Hot Runner Tubular Heater Manifolds Flexible Heater Chrome Nickel Steel

The Manifold heater is supplied in Chrome Nickel Steel with nominal sheath diameter of 6.50mm and 8.00mm. Standard elements have a terminal post which gives a cold section of approx 30mm for 6.50mm and 35mm for 8.00mm.For manufacturing formed elements it is necessary to have an accurate dimensional sketch showing all the centre distances, radius and degrees.

Features for Manifold heater:

1. Available in Chrome Nickel Steel

2. Sealed Edges to prevent from Moisture

3. Superior Grade Magnesium Oxide Insulation

4. Swaged for Good Electrical Insulation & Heat Transfer

5. Available in Dia 8.5 mm, 8 mm,6.5 mm & square section,6 mm x 6 mm

Technical Data for manifold heater:

Length	300-1550mm	400-2100mm
Max Current	12A	15A
Nominal Voltage	Less than 230V	Less than 400V
Wattage	±10%	±10%
Dielectric Strength	1.5HV	1.5HV
Insulation MΩ	More than 5 MΩ	More than 5 MΩ
More than 5 MΩ	Less than 0.5 mA	Less than 0.5 mA
Minimum Unheated	30mm	35mm
Terminal Pins	M3 x .50mm / plain post	M4 x .70mm

Detailed Images:

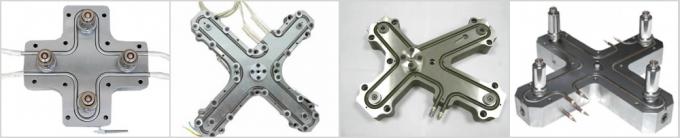

hot runner manifold tubular heater precision-formed and customized to your hot runner mold application.

Hot Runner Tubular Heater Manifolds Flexible Heater Chrome Nickel Steel 0
