High Temperature Resistance Cartridge Immersion Heater For Injection Molding Machine

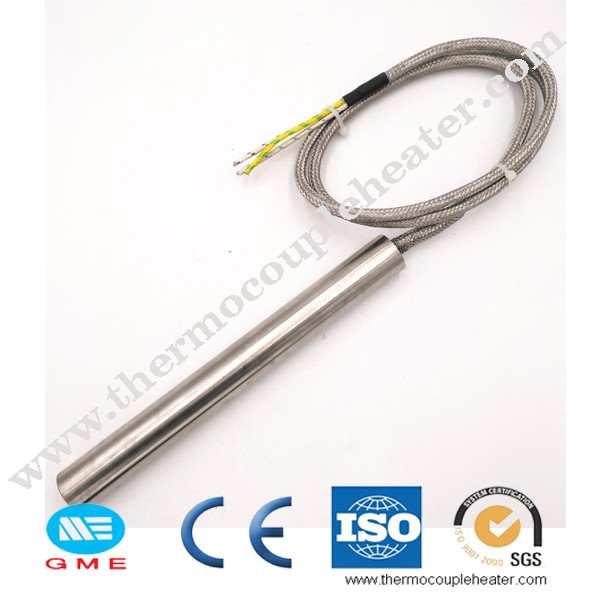

Large Image : High Temperature Resistance Cartridge Immersion Heater For Injection Molding Machine

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	ISO/CE/UL/CSA

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	USD 1-100 FOB Shanghai/pc
Packaging Details:	Boxes or Wooden Cartons
Delivery Time:	7-15 work days
Payment Terms:	D/A, D/P, T/T, Western Union, MoneyGram, L/C
Supply Ability:	10000pcs/Month

Contact Now

Detailed Product Description

Lead Wire:	Silicon, Glassfiber	Shealth Material:	SS304 ,SS321 ,SS316
Color:	Biack And White	Wattage Tolerance:	+5%, -10%
Application:	Oil, Water Or Other Liquid Etc	Power Source:	Electric
Voltage:	200-380v	Dimension(LWH):	Customizable
Type:	Air Heater, Cartidge Heaters	Power:	1.1-6.5W/CM2
Highlight:	cartridge immersion heater , cartridge heater with thermocouple

High temperature resistance Cartridge Heater for Injection Molding Machine

Description:

1. Cartridge heater consists of a cylindrical stainless steel tube and thus prevents itself from corrosion. The watt density can reach 25 W/cm2and the operating temperature can go up to 800°C (1472°F)

2.The cartridge heater is filled with magnesium oxide and compressed to avoid short-circuit. There is a heating wire inside which is wound into a ceramic core. The number of coils varies depending on the power.

3. Various cartridge heaters are available. We develop and manufacture cartridge heaters according to your special demands.

Specification:

GME Low Power 24v 80w Cartridge Heaters are made of crimped-on or swaged-in construction that consists in a resistance wire wound around a high-quality MgO core that is centered in a stainless steel casing.

Diameter	3mm to 30mm, etc.
Length	Customized
Wire length	Customized
Leads type	Direct line, SUS 304 braided, metal hose, etc.
Voltage Supply	12V to a maximum of 480V
Total capacity	customized
Resistance Tolerance	+10% - 5% (closer tolerances are available upon special request)
Heating length	Customized
Sheath Material	SUS 304/316/321 Incoloy 840
Insulation material	Magnesium Oxide Powder
Maximum Temperature	800 °C

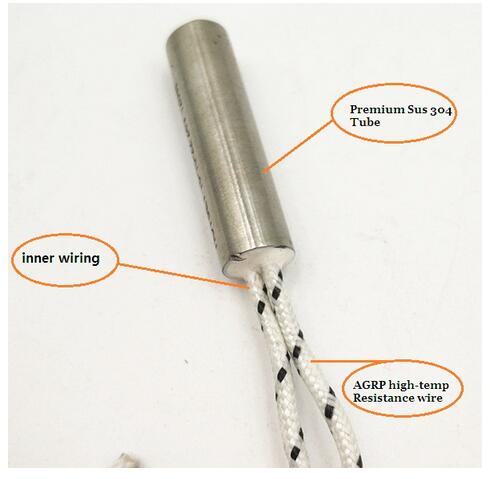

High Temperature Resistance Cartridge Immersion Heater For Injection Molding Machine 0
Application:

Food processing
Plastic moulds
Medical equipment
Hot stamping
Liquid immersion
Packaging equipment
Labeling & Sealing
Dies & platens
Injection molding
Nuclear industry
Car industry
