Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | Wuhan, China |
| Certification: | CE ROHS |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Packaging Details: | packing for export |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000 Pcs per Month |
| Weight: | Final Dimension | Certification: | CE ROHS |
|---|---|---|---|
| Material: | 304, Carbon Steel, Copper, Titanium | Standard Gap: | 5-10mm |
| Type: | Air Heater | Voltage: | 12V - 660V |
| Highlight: | thermostatic tubular heater,tubular heater elements |
||

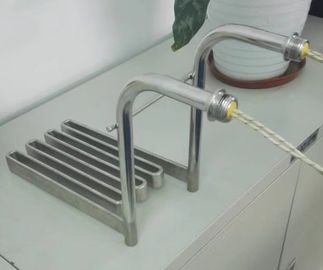

Stainless S heating parts tube tubular heater
Double-headed electric heating tube is the heating element at both ends of the high-temperature lead (lead standard 250mm) or terminal (with porcelain cap protection) heater. Rated voltage 220V regardless of zero line and FireWire, rated voltage 380V were connected to the line of fire.
Features
1.Simple structure, easy installation
2.High mechanical strength, high thermal efficiency
3.Rapid heating, strong controllability
Specification
| Material | 304, carbon steel, copper, titanium |
| Length | ≤ 6m |
| Diameter | Φ8 - Φ25 |
| Tube wall thickness | 0.6mm - 3mm |
| Surface load | 1-8w / cm2 |
| Voltage | 12V - 660V |
| Temperature | 900℃ |
