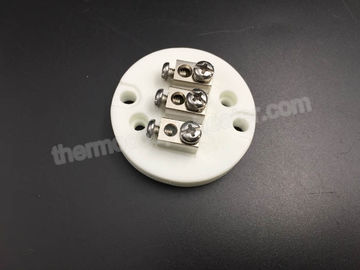

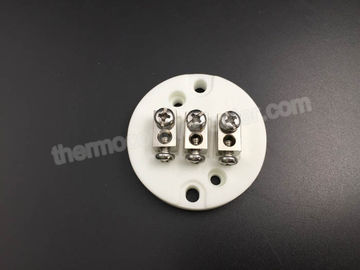

Industrial Ceramic Thermocouple Terminal Block N-3p-C With 2 - 6 Pins

Large Image : Industrial Ceramic Thermocouple Terminal Block N-3p-C With 2 - 6 Pins

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE & ISO
Model Number:	Terminal Block

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	Negotiation
Packaging Details:	Exported Case Packing
Delivery Time:	10-15 working days after received your payment
Payment Terms:	T/T, Western Union, D/P, L/C, Paypal
Supply Ability:	25,000pcs per month

Contact Now

Detailed Product Description

Product Name:	Ceramic Terminal Block N - 3P - C For Industrial Thermocouple Assembly	Temperature Range Range:	0--550 Centigrade
Materials:	Ceramic, Steatite	Theory:	Temperature Sensor
Usage:	Industrial, Thermocouple Accessories	Types:	2-6 Pins
Warranty:	6 Months	Application:	Industrial
Highlight:	thermocouple assemblies , thermocouple parts and components

Ceramic Terminal Block N - 3P - C For Industrial Thermocouple Assembly

1. Ceramic Block Brief Introduction

Terminal block (also called connection blocks, connection board), material is ceramic, means terminating

the process sensor (thermocouple, RTD or other transducers or sensors) inside the thermocouple head.

We supply more than 50 different models, such as KNE, KSE, KD, MAA & NAA series terminal blocks in

ceramic and bakelite in 2 poles, 3 poles, 4 poles and 6 poles types.

2. Ceramic Block Characteristics

Available types: 40mm, 33mm, 27mm, 36mm, 21mm, 46mm.
Standard dimensions fit various connection heads
Ceramic material: talc powder & ole fin, 92% Al2O3, 99% Al2O3.
Bakelite material blocks are available, black colour.
Screws material: stainless steel, nickel coated iron.
Terminals material: nickel coated brass.

Strength of Electric breakdown strength	15—20KV/mm
Coefficient of linear expansion	(6.5—8)×
Tolerance of size	≤±0.1mm

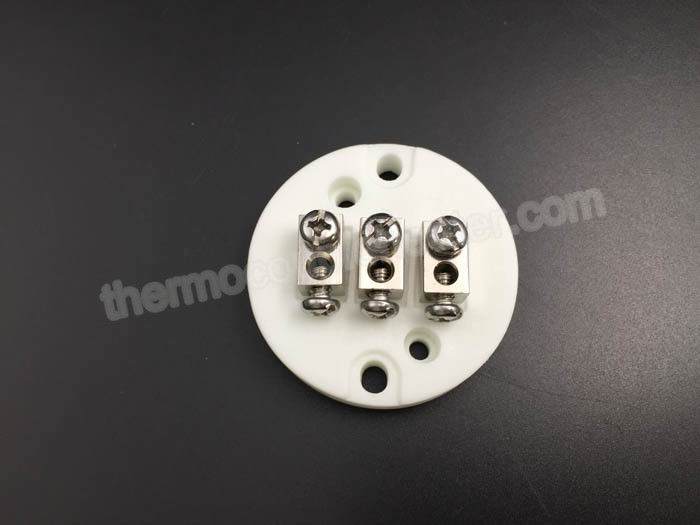

Industrial Ceramic Thermocouple Terminal Block N-3p-C With 2 - 6 Pins 0

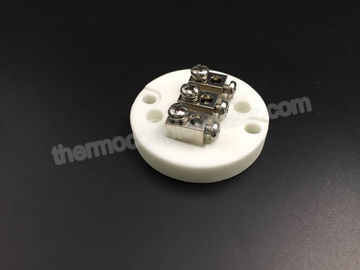

Industrial Ceramic Thermocouple Terminal Block N-3p-C With 2 - 6 Pins 1

4. Ceramic Block Application

Widely used in power supply connecting, top grade sockets and sockets for special industry, power supply,

transformer, instrument, TV set, autocar ect.

It is ideal choice for customer in different industries.
