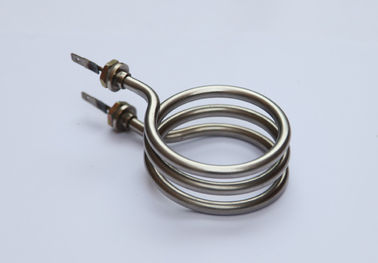

Liquid Tubular Heater Immersion Water Heating Element Ss316 Material

Liquid Tubular Heater Immersion Water Heating Element Ss316 Material
Liquid Tubular Heater Immersion Water Heating Element Ss316 Material

Large Image :  Liquid Tubular Heater Immersion Water Heating Element Ss316 Material

Product Details:
Place of Origin: China
Brand Name: GME
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 50PCS
Price: Negotiate
Packaging Details: export carton box
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union,paypal
Supply Ability: 50000pcs
Detailed Product Description
Material: SS316 Insulation Resistance: 20M Ω Min
Power Tolerance: +5%,-10% Diameter Range: 6mm To 20mm
Highlight:

thermostatic tubular heater

,

tubular heater elements

                immersion water heating elementliquid tubular heater

Specifications

1) NIickel chromium resistance wire
2)Tube material SS304/316/321/Incoloy
3)high efficient heat transfer



Product Description:

Tubular heating element are used for almost every kind of heating appliances. They are easy to form and feature highest mechanic stability and electric properties at the same time.

Even though Tubular heating element are technically rather mature and universal to use, there exist various new innovative solutions for many applications.

Screw in Tubular heating element are standardised for use in liquids like water.

Tubular heating element are easy to install,control and maintain, unique designer as your requirement. For corrosive enviroment, titanium material or tubular heating elements with additional sleeving are available.

Features:

HI-POT Test 1500V/S min cold condition
Insulation resistance 20M Ω min
Leakage current 0.75ma max
Power tolerance +5%,-10%
Voltage 110v-440V
Diameter range 6mm to 20mm
Heating resistance wire 0Cr25Al5,Cr20Ni80 or as custom's requirement
Air tubular heater wattage ≥ 2w-4w/cm2
Water tubular heater wattage ≥ 6w-10w/cm2
Dies and fin tubular heater ≥ 8W-12w/cm2




Liquid Tubular Heater Immersion Water Heating Element Ss316 Material 0
