Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE & ISO |
| Model Number: | - |
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Export Carton Box |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, D/P, T/T, Western Union, Paypal |
| Supply Ability: | 20,000pcs per month |
| Product Name: | 128mm X 228mm 230V 1900W Stainless Steel Mica Strip Heater For Plastic Process Equiptment | Application: | Plastic Mold |
|---|---|---|---|
| Material: | Stainless Steel 304, 316 | Insulated Material: | Mica |
| Warranty: | 1 Year | Lead Wire Length: | 1000 Mm Or Customized |
| Highlight: | mica band heater,mica heating pad |
||

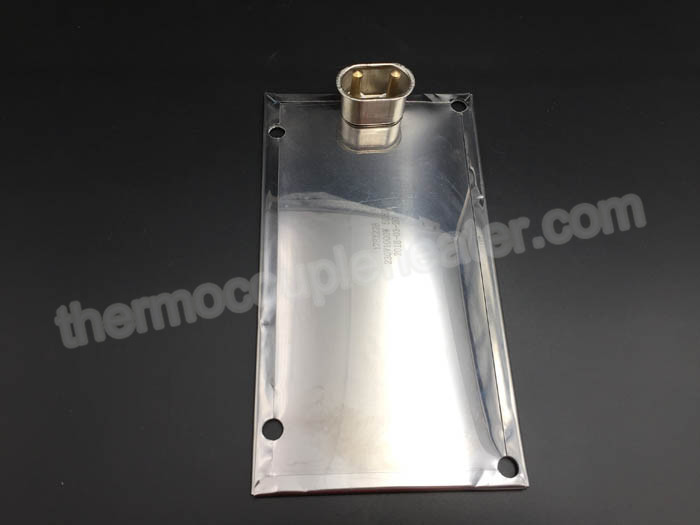

128mm x 228mm 230V 1900W Stainless Steel Mica Strip Heater For Plastic Process Equiptment
1. Mica Strip Heater Brief Introduction
Mica strip heater is made of mica insulation with nickel chrome heating wire, stainless steel as sheath.. Mica strip heater ( Mica heater plate ) use good insulation property mica and heat-resistant property, mica strip heater ( sheet ) as support and insulation layer, stainless steel board as support protection sheath, mica strip heater can be made as plate shape, sheet shape, column shape, canister shape, band shape etc different shapes heating element. Mica strip heater can be designed high power as 1000W, max temperature 300 °C.
2. Mica Strip Heater Technical Information.
Heater material :copper, SS304, cast aluminum, cast copper, ceramic
Insulation material :imported high-temperature mica
Resistance wire: Ni80Cr200
Electrical property: ≤0.5mA
Wattage tolerance: +5%-10%
Input voltage and wattage :to be customized as request
Specification :to be customized as request
3. Mica Strip Heater Features:
| mica heater | mica strip heater |
| sheath | 304 stainless steel |
| insulation | mica |
| resistance heating wire | nickel chrome wire |
| temperature | 500-600 degree celsius |
| wattage density | 3w per square centimetre |
| shape | customized demands available |
4. Mica Band Heater Application
Band heaters are commonly used in the plastics industry: to heat plasticization cylinders, extruders and injection presses. They are also employed on woodworking machinery and scientific-medical equipment.
Flat mica bands are used in the packing trade (sealing bars and wheels), industrial ironing (mangles) and plastics (extrusion/blower machines).
Injection molding
Blow-molding
Plastic extrusion
Container, pipe, or tank heating
Process applications
