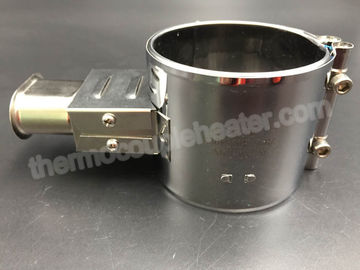

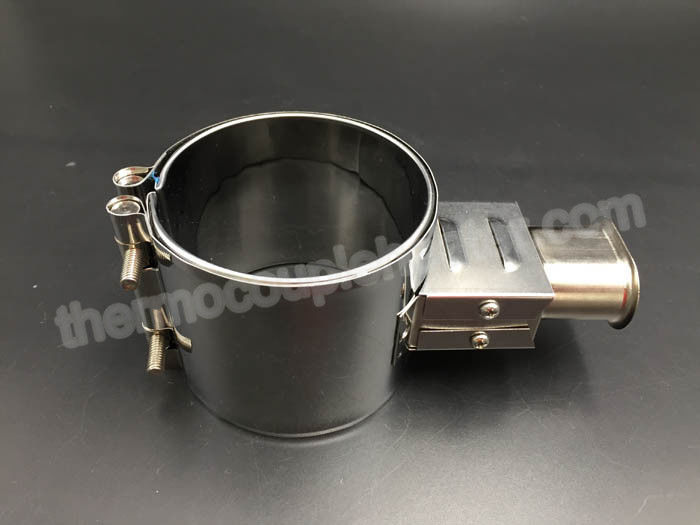

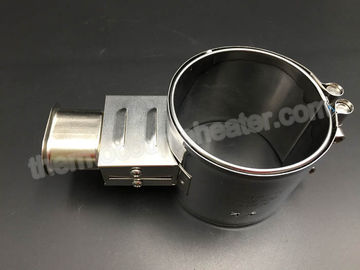

ID 80mm x Height 70mm 230V 600W Mica Band Heater Stainless Steel Heating Element
1. Mica Band Heater Brief Introduction
Mica band heaters are the ideal solution for high watt densities and high operating temperature applications, especially for the plastics industry. Band heaters can be found in several types of dimensions, wattage, voltages and material. It is an inexpensive form of heating solution to external indirect heating. And strip type is also very popular. Band heaters use electric heating (NiCr 2080 wire) to heat-up the external surface of drums or pipes and high quality mica material insulated.
Mica Band heaters are constructed with a mica core wound with wire. The core is then bent into a circle band. Leads are attached before the final outer sheaths are attached to complete the heater.
2. Mica Band Heater Features:
1. Stainless Steel sheath resists rust and high temperatures, and provides firm mechanical support.
2. Mica insulation prevents heat loss, thereby lowering energy costs.
3. High temperature nickel-chromium element wire
4. Max. watt density : 3 W/cm² (Wattage tolerance: +5% -10%)
4. Mini diameter: 25mm
5. Mini height: 25mm
3. Mica Band Heater Technical Information.
Heater material :copper, SS304, cast aluminum, cast copper, ceramic
Insulation material :imported high-temperature mica
Resistance wire: Ni80Cr200
Electrical property: ≤0.5mA
Wattage tolerance: +5%-10%
Input voltage and wattage :to be customized as request
Specification :to be customized as request
4. Mica Band Heater Application
Band heaters are commonly used in the plastics industry: to heat plasticization cylinders, extruders and injection presses. They are also employed on woodworking machinery and scientific-medical equipment.
Flat mica bands are used in the packing trade (sealing bars and wheels), industrial ironing (mangles) and plastics (extrusion/blower machines).
Injection molding
Blow-molding
Plastic extrusion
Container, pipe, or tank heating
Process applications
