Flexible Manifold Tubular Heater Diameter 6.5MM With Stainless Steel Sheath

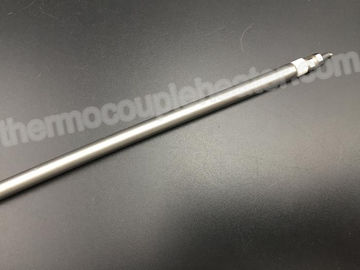

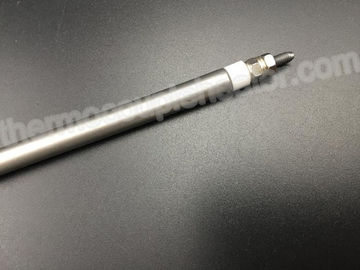

Large Image : Flexible Manifold Tubular Heater Diameter 6.5MM With Stainless Steel Sheath

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	ISO9001/CE

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Carton or wooden crate or as per your request
Delivery Time:	10 working days or above
Payment Terms:	L/C, T/T,PAYPAL
Supply Ability:	100000pcs

Contact Now

Detailed Product Description

Product Name:	Flexible Manifold Tubular Heater With Stainless Steel Sheath Diameter 6.5MM 220V 600W	Application:	Industrial Heating Elements
Sheath Material:	Incoloy 800, SS 304, SS 321, SS 316	Voltage:	Customized
Resistance Wire:	Ni80Cr20	Power:	Customized
Highlight:	tubular heater elements , thermostatic tubular heater

Flexible Manifold Tubular Heater With Stainless Steel Sheath Diameter 6.5MM 220V 600W

Produce Description

Tubular heater is used for almost every kind of heating appliances. They are easy to form and feature highest mechanic stability and electric properties at the same time. Even though tubular heaters are technically rather mature and universal to use, there exist various new innovative solutions for many applications. Screw in tubular heaters are standardized for use in liquids like water. Finned tubular heaters are especially for air heating cabinets or tunnels. Flanged heater are easy to install, control and maintain, unique designer as your requirement. For corrosive environment, titanium material or tubular heating elements with additional sleeving are available .

Feature

1. Big variety of material:stainless steel (SS304, SS316, SS321),also can be Inconel & Incoloy sheath
2. Various sizes of diameters
3. Nickel chrome resistance wire

Specification

Heat intensity	Not exceeding 30Wcm2 (advisable)
Power	Depends on the dimension
Escape of current (when cold)	<=0.1mA a 242 v.
Insulation (when cold)	5 Min Ohmis 500 Watts minimum
Dielectric strength	1500v. 1/seg
Working temperature	750ºG max.
Tolerance of length	+/-1.5%
Tolerance of diameter	-0.01 a -0.06 m/m
Tolerance of cut of connection	+/-15 mlm
Power tolerance (w)	5 % - 10 %
Cold areas	Depends on length and diameter 5-25mm

Technical Data for Flexible Manifold Tubular Heater

Length	300-1550mm	400-2100mm
Max Current	12A	15A
Nominal Voltage	Less than 230V	Less than 400V
Wattage	±10%	±10%
Dielectric Strength	1.5HV	1.5HV
Insulation MΩ	More than 5 MΩ	More than 5 MΩ
More than 5 MΩ	Less than 0.5 mA	Less than 0.5 mA
Minimum Unheated	30mm	35mm
Terminal Pins	M3 x .50mm / plain post	M4 x .70mm

Application

1. Plastic Processing machinery.
2. Water and Oil Heating Appliances.
3. Vending Machines.
4. Packaging machineries
5. Dies and Tools.
6. Ovens & Dryers
7. Heating Chemical Solutions.
8. Kitchen equipments
9. Medical equipments
10. Used in many other applications.
