Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | ISO/CE/UL/CSA |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | USD 1-100 FOB Shanghai/pc |
| Packaging Details: | Boxes or Wooden Cartons |
| Delivery Time: | 7-15 work days |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 10000pcs/Month |
| Lead Wire: | Silicon, Glassfiber | Shealth Material: | SS304 ,SS321 ,SS316 |
|---|---|---|---|
| Color: | Biack And White | Wattage Tolerance: | +5%, -10% |
| Application: | Oil, Water Or Other Liquid Etc | Power Source: | Electric |
| Voltage: | 12-480v | Dimension(L*W*H): | Customizable |
| Type: | Air Heater, Cartidge Heaters | Insulation: | Mgo Powder |
| Highlight: | cartridge immersion heater,cartridge heater with thermocouple |
||

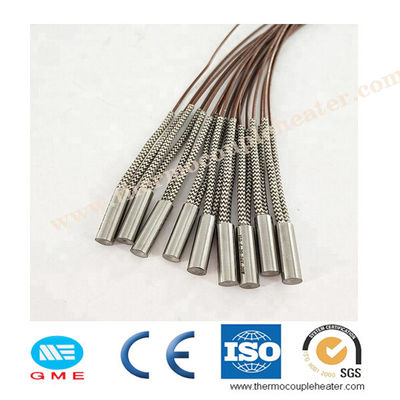

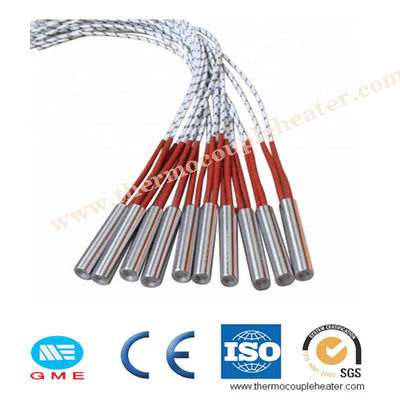

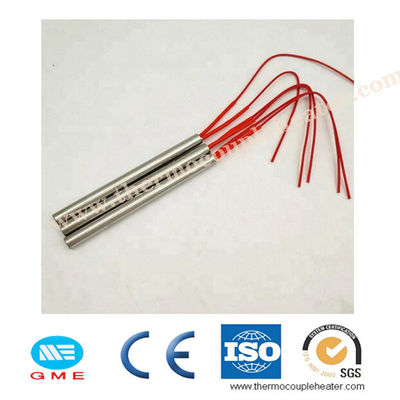

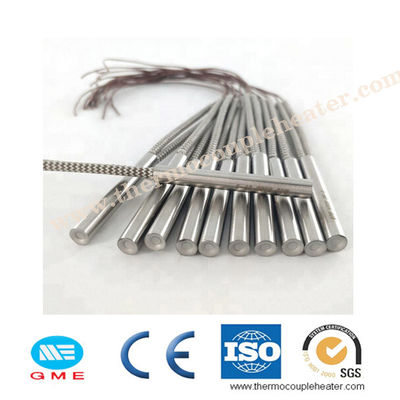

220v 1000w Packaging Machine Electric Insertion Cartridge Heater
Description:
1) The construction of high temperature cartridge heaters positions a nickel-chrome resistance wire precision wound around a magnesium oxide core. It is inserted into a stainless or Incoloy tube locating the resistance wire close to the sheath.
2) The core is centrally positioned within the tube and filled with magnesium oxide powder. Nickel pins pass through the centre of the core making contact with the resistance wire at both ends. The whole is assembly is highly compacted by a swaging operation and thus ensuring excellent heat transfer to the external sheath. This allows for operating temperatures to 1600ºF and high watt densities.
3) One end of the heater is closed with a welded metal end-disc and wire leads exit at the opposite end which is typically closed with a lava seal. A variety of wire leads and lead protection options are available. Heaters can be supplied with internal thermocouples, mounting fittings and many other options.
Specification:
Name: Cartridge Heater
Brand: GME
Original: China
GME cartridge heaters (insertion heaters) provide superior heat transfer, uniform temperatures, resistance to oxidation and corrosion and long life even at high temperatures. Customers benefit from Detai's on-time delivery, quality and technical assistance.
| Tube Diameter | 3mm-30mm |
| Tube Length | 20mm-5000mm |
| Lead wire Length | 250mm-10000mm |
| Wattage | 5-30W/Cm2 |
| Voltage | 12V/24V/36V/48V/120V/220V/230V/380V |
| Tube Material | SS304;SS316,SS321,NICOLOY800 etc |
| Insulation Material | High-purity Mgo |
| Reisistance wire element | Ni-Cr or FeCr |
| Lead wire type | 2.20mm Standard(/silicone high temperature frberglass) |
Application:
1) Used for Injection Molding,
2) Plastic Molds ,
3) Packaging Equipment and Liquid Immersion
