Industrial Immersion Cartridge Heater With Internal Thermocouple Swaged Leads

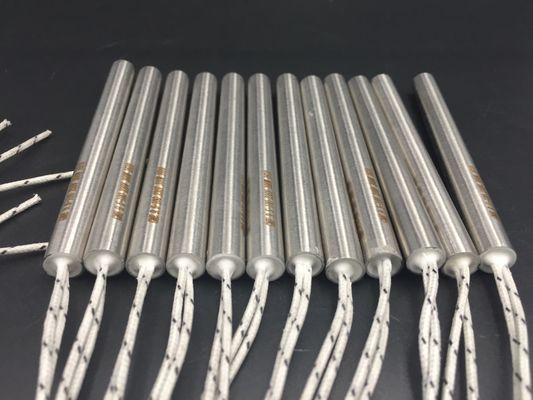

Large Image : Industrial Immersion Cartridge Heater With Internal Thermocouple Swaged Leads

Product Details:

Place of Origin:	Wuhan, China
Certification:	CE ROHS

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	negotiable
Packaging Details:	packing for export
Delivery Time:	5-8 days after payment
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Dimension:	Customized	Power:	300W
Insulation Material:	High-purity Mgo	Length Tolerance:	±1 Mm
Sheath Material:	Stainless Steel	Lead Connection:	Crimped Or Swaged Leads
Highlight:	cartridge immersion heater , cartridge heater with thermocouple

Industrial immersion electric cartridge heating tube heater cartridge thermocouple

Product Description

1. Electric heater cartridge is a piece of equipment, made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr2080),High temperature leads, seamless stainless steel sheath(304,321,316,800,840)

2. Usually in tube form.

3. Cartridge heaters are manufactured in two basic forms - high density and low density.

4. High density cartridge heaters are used to heat plastic injection moulds, dies, platens and so forth, whereas low density cartridge heaters are more suitable for packing machinery, heat sealing, labelling machines and hot stamping applications.

Product Name	heater cartridge thermocouple
Resistance heating wire	NiCr 80/20 wire
Sheath	stainless steel 304,321,316, Incoloy 800, Incoloy 840
Maximum temperature	800 degree Celsius
Wattage Tolerance	+5%, -10%
Resistance tolerance	+10%, -5%
Voltages available	380V,240V, 220V,110V,36V,24V or 12V
Length tolerance	±1 mm
Diameter tolerance	-0.02mm
Standard Cold Zone	5-10mm
Insulation resistance (cold)	≥ 500 MΩ
Maximum leakage current (cold)	≤ 0.5 mA
Thermocouple Location	Type J or Type K

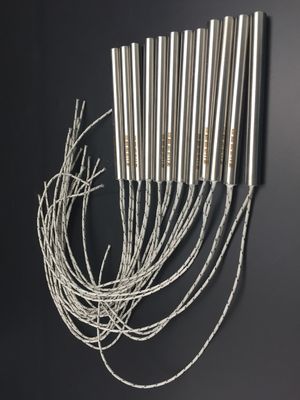

Industrial Immersion Cartridge Heater With Internal Thermocouple Swaged Leads 0

Industrial Immersion Cartridge Heater With Internal Thermocouple Swaged Leads 1
