Inconel 600 thermocouple thermowell with flange / RTD Thermowell

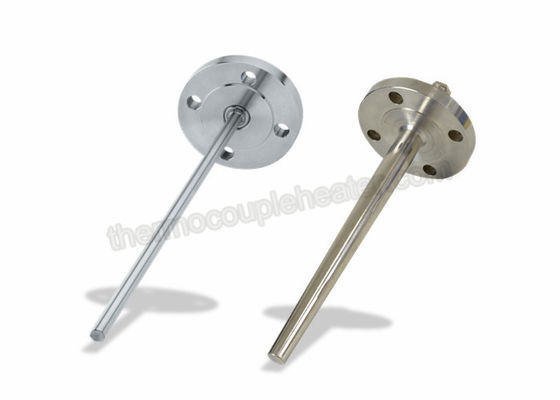

Large Image : Inconel 600 thermocouple thermowell with flange / RTD Thermowell

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiation
Delivery Time:	7-10 working days after received your payment
Payment Terms:	L/C, T/T, Western Union, Paypal
Supply Ability:	25,000pcs per month

Contact Now

Detailed Product Description

Production Name:	Inconel 600 Thermocouple Thermowell With Flange/ RTD Thermowell	Material:	Inconel 600
Theory:	Temperature Sensor	Application:	Thermocouple
Wanranty:	One Year	Accuracy:	±0.2%
Sample:	Avalible	Temperature Range:	0-1100℃
Highlight:	stainless steel thermowell , Socket Weld Thermowell

Inconel 600 thermocouple thermowell with flange/ RTD Thermowell

1.Type: straight type or reduced type

2.Material: SS304,SS316, Inconel 600

3.RTD connection:1/2BSP,1/2NPT....

4.Process Connection:1/2BSP,1/2NPT..

5.Insertion length:100mm,200mm,300mm ...

Thermowell characteristics

1)Its usage matches with two-joint thermocouple and RTD in order to protect the their normal operations

2)Partial products may be used in high voltage and high flow velocity occasions within certain temperature band.

3)It has been simultaneously made with the equipments

4)No meed to stop the machine in case of repairing or cha-nging the thermocouple or the RTD.

5)The forms such as blind hole taper and blind via reducing etc processed by stainless steel

6)The structural forms such as integral drill type,integral drill flange welding type and steel pipe soldering type and so on

7)The mounted forms such as NPT thread,metric thread flange,welding etc.

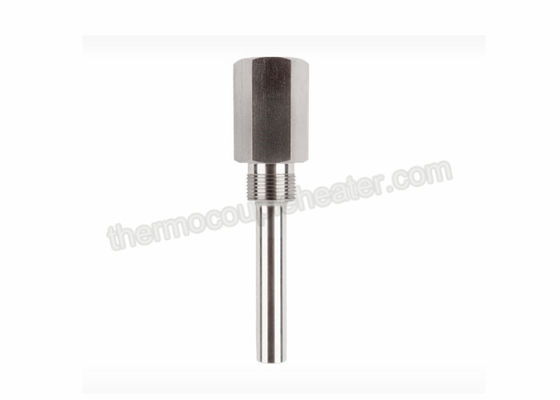

Inconel 600 thermocouple thermowell with flange / RTD Thermowell 0

Thermocouple thermowell

Ref No.	WR	Temp
Thermal element materials	B: PtRh30-Pt6 R: PtRh13-Pt S: PtRh10-Pt N: NiCrSi-NiSi K: NiCr-NiSi E: NiCr-CuNi J: Fe-CuNi T: Cu-CuNi	0~1600C 0~1300C 0~1300C 0~1000C 0~900C 0~600C 0~500C 0~350C
Ref No.	WZP	Temp
	PT100 PT1000 CU50	-200~+650C -200~+650C -200~+650C
Ways of Mounting & Fixing	1: without fixing device 2: fixed thread 3: movable flange 4: fixed flange 5: right-angle movable flange 6: fixed thread in wimble shape protection tube
Types of connections box	1: anti-spray (Protection class: IP65) 2: water-proof (Protection class: IP55)
Types of sensor end	G: variable section K: sheathed elements T: flexible sheathed elements
Diameter of protection tube	0: ¢16 1: ¢20 2: ¢16 high aluminum material 3: ¢20 high aluminum material
Measuring range	0~1600 degree Celsius
Shipping	By air, sea, express
Sample time	2~7 days

Transportation

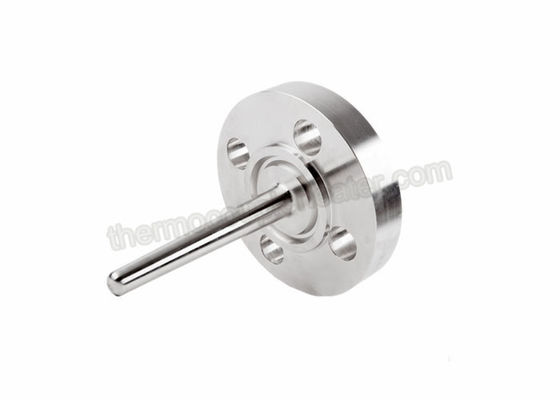

Inconel 600 thermocouple thermowell with flange / RTD Thermowell 1

Inconel 600 thermocouple thermowell with flange/ RTD Thermowell
