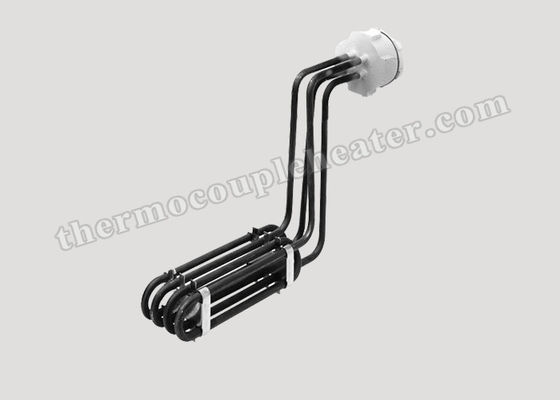

Industrial Immersion Heating Element Incoloy 800 Over The Side Immersion Heater

Industrial Over The Side Immersion Heating Element

Product Description

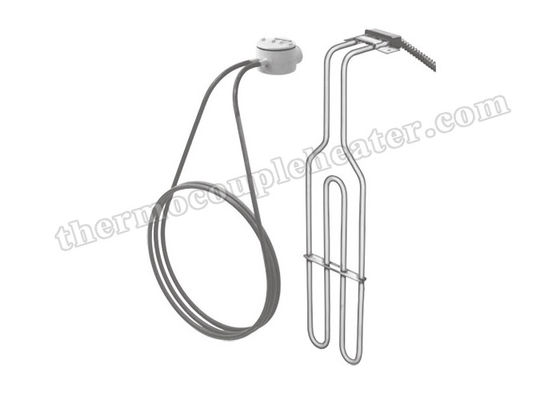

Over-the-side immersion heaters are designed for the robust requirements of corrosive chemicals, viscous (potentially contaminated) fluids, and rinse and process water heating. Various configurations of tubular heater element assemblies provide convenient tank side mounting when through-the-wall heaters cannot be installed, portability is required, or when heaters must be removed without emptying the tank. As required, heaters are constructed with risers, junction boxes and element support legs.

Specification

HI-POT TEST: 1500V/S min cold condition.
Insulation resistance:20M Ω min
Leakage current to be 0.75ma max
While energized at rated voltage
Power tolerance:+5%,-10%
Escape of current (when cold): <=0.1mA a 242 v.
Insulation (when cold): 5 Min Ohmios 500 Watts minimum
Dielectric strength:1500v. 1/seg
Tolerance of length:+/-1.5%
Tolerance of diameter: -0.01 a -0.06 m/m

Tolerance of cut of connection: +/-15 m/m
Power tolerance (w):5 % - 10 %

Feature

1. Simple structure
2. Long-time usage
3. High efficient heater exchange
4. It could easy to bent into many kinds of shape
5. Good insulation could withstand high voltage

Application

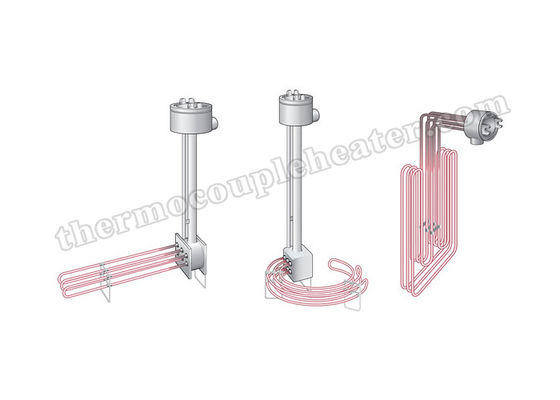

Over-the-side heaters are ideal for heating water, oils, solvents, salts and acids. Over-the-side heater application versatility is enhanced with optional sheath materials, kilowatt ratings, terminal enclosures and mounting methods.  The L and O shaped “installed-from-the-top” heaters slide easily into tanks, with the heated portion immersed along the side or at the bottom. The drum immersion heaters are designed for direct immersion in a standard 55 gallon steel drum

1). Water heating
2). Freeze protection
3). Viscous oils
4). Storage tanks
5). Degreasing tanks
6). Solvents
7). Salts
8). Caustic solutions
9). Paraffin
