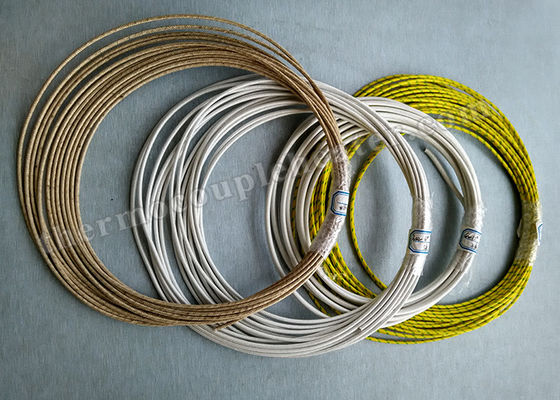

Yellow High Temperature Cable High Voltage Insulated Resistance Heating Wire

Large Image : Yellow High Temperature Cable High Voltage Insulated Resistance Heating Wire

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE & ISO
Model Number:	High Temperature Cable

Payment & Shipping Terms:

Minimum Order Quantity:	1000 m
Price:	Negotiation

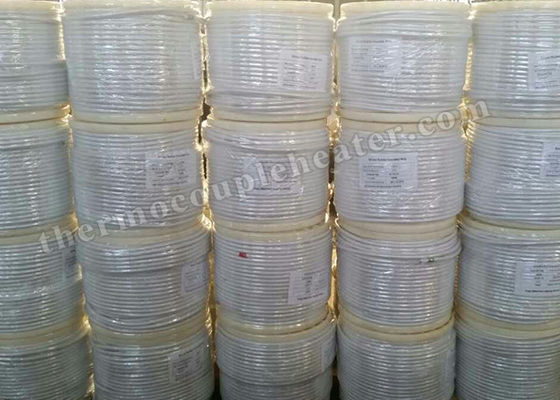

Packaging Details:	Exported Case Packing
Delivery Time:	15-20 working days after received your payment
Payment Terms:	T/T, Western Union, D/P, L/C, Paypla
Supply Ability:	100,000m per month

Contact Now

Detailed Product Description

Product Name:	High Temperature Insulated Wire	Application:	Electric Heater
Conductor Type:	Stranded	Insulated Materials:	Silicon & Mica
Package:	In Roll Or Spool	Conductors:	Nickel Copper, Nickel
Color:	Red/Black/Blue/Yellow	Size:	26AWG~4/0 AWG
Highlight:	high temperature electrical cable , high temperature insulated wire

High Temperature Insulated Wire

1. High Temperature Cable Brief Introduction

This cable is widely used in the wiring of heating elements, such as cartrige heater, band heater, and

hot plates, etc. The insulation materials can be silicon and mica.

2. High Temperature Cable Characteristics

High temperature resistance,low temperature resistance
Anti-acid and alkali,fire and aging resistance,
The inoxidizability, resistance of humidity,
The fine electric insulation and flexible performance

3. High Temperature Cable Parameter.

Conductor			Insulation		Diameter FEP/S.R (Ω/KM)	Unit length (M)(Ft)
Size (AWG)	Construction (No./mm)	Diameter (mm)	Mica Thickness (mm)	Glass Thickness (mm)	Diameter FEP/S.R (Ω/KM)	Unit length (M)(Ft)
26	7/0.16	0.48	≥0.635	0.181	≥2.15	305
24	7/0.20	0.61	≥0.635	0.181	≥2.25	305
22	7/0.25	0.77	≥0.635	0.181	≥2.40	305
20	7/0.31	0.94	≥0.635	0.181	≥2.60	305
18	16/0.254	1.19	≥0.635	0.181	≥2.85	305
16	26/0.254	1.49	≥0.635	0.181	≥3.15	305
14	41/0.254	1.87	≥0.635	0.181	≥3.50	200
12	65/0.254	2.36	≥0.762	0.381	≥4.65	100
10	35/0.45	3.06	≥0.762	0.381	≥5.35	100
8	67/0.40	3.75	≥0.762	0.381	≥6.05	100
6	266/0.254	4.75	≥0.762	0.381	≥7.05	100
4	420/0.254	6.02	≥0.762	0.381	≥8.25	100

4. Application

Apply to household appliance,Illumination & lighting & headlamp,electric machines,temperature sensor,Military series,metallurgy chemical series,motor cars & ships,electrical installation.

Yellow High Temperature Cable High Voltage Insulated Resistance Heating Wire 0
