Foodservice Equipment Bronze Platen Die Cast Heaters 1400 Degrees F

Cast In Bronze Platen Die Heaters For Plastics Processing Equipment

Product Description

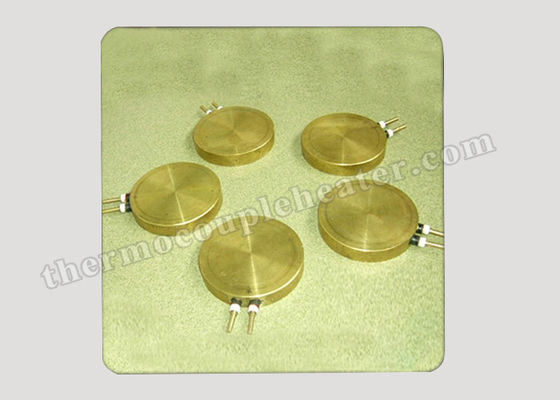

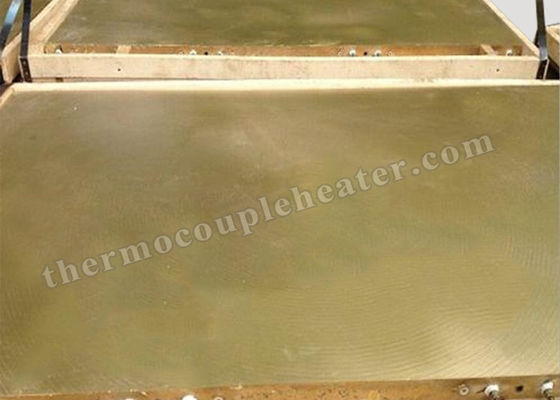

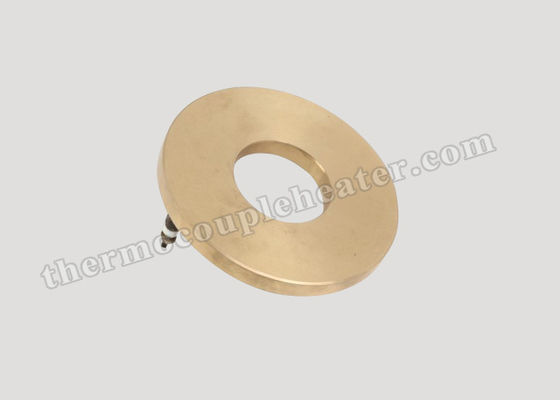

Cast-In Bronze Platen Die Heaters are manufactured from Bronze alloys, the platen heater consists of a tubular heating element that is designed and formed to provide maximum efficiency and temperature uniformity on the working surface of the casting. The platens can also be designed with integral cooling tubes or as stand alone cooling platens for chilling applications. The working surface of the platen heater can be supplied with various machined finishes to customer specifications. A ground surface can also be provided for stringent flat surface requirements. In addition, surface coatings of electroless nickel, ®, and hard-coat anodizing can be applied per application requirements .Mounting options can be cast in the design of the platen or machined as a secondary process. These options include threaded stand-offs, cast-in anchors, ribbed back supports, tapped holes, and mounting slots. Electrical terminations can be threaded terminals, flexible wire, three-prong electrical plugs, or NEMA housings. All platen designs can be manufactured to customer specification. Engineering assistance is available to help create a new design or modify your existing one .

Specification

1. 120V 240V 480V or other voltage to order
2. Maximum watt density on the element Up to 50 W/in.
3. Maximum weight: 400kg aluminum/ brass 300kg
4. Bronze 1400 degrees F
5. Protective enclosure: sealed or ATEX
6. Electrical connection by terminals block or soldered cable heater output
7. Machining: On request
8. Tightening: Screw

Feature

1. Bronze cast alloys
2. Custom machined surfaces
3. Surface coatings of electroless nickel, ®, or anodized
4. Liquid cooling option
5. Flexible electrical terminations
6. Single or three-phase electrical circuits
7. Custom mounting options

Application

1. Heat transfer presses
2. Foodservice equipment
3. Die heaters
4. Packaging equipment
5. Commercial pre-heaters
