Assembly K Type Wire Thermocouple With Temperature Instrument Connector Fixed Thread

Assembly K Type Wire Thermocouple With Temperature Instrument Connector Fixed Thread

    • Assembly K Type Wire Thermocouple With Temperature Instrument Connector Fixed Thread
    • Assembly K Type Wire Thermocouple With Temperature Instrument Connector Fixed Thread
    • Assembly K Type Wire Thermocouple With Temperature Instrument Connector Fixed Thread
  • Assembly K Type Wire Thermocouple With Temperature Instrument Connector Fixed Thread

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Packaging Details: cartons, pallet
    Delivery Time: 7~10 working days
    Payment Terms: T/T, Western Union, MoneyGram, L/C
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Power Source: Electric Temperature Range: -200~650℃
    Voltage: 12-480V Probe Material: Stainless Steel Or Nickel
    Style: K, J, S Pairs Quantity Of Element: Simplex/duplex
    Heating Element: Nichrome Resistance Mounting: Thread/flange/none
    Function: Temperature Sensor Feature: Economical
    Types Of Terminal Box: Anti-spray/water-proof Connection: Thread
    High Light:

    temperature sensor rtd

    ,

    temperature sensor rtd pt100

    Assembly k type wire thermocouple with temperature probe temperature instrument connector fixed thread

    Description:



    1) Thermocouples are widely used in science and industry; applications include temperature measurement for kilns, gas turbine exhaust, diesel engines, and other industrial processes. Thermocouples are also used in homes, offices and businesses as the temperature sensors in thermostats, and also as flame sensors in safety devices for gas-powered major appliances.



    2) A thermocouple consists of two conductors of different materials (usually metal alloys) that produce a voltage in the vicinity of the point where the two conductors are in contact. The voltage produced is dependent on, but not necessarily proportional to, the difference of temperature of the junction to other parts of those conductors.



    3) Thermocouples are a widely used type of temperature sensor for measurement and control and can also be used to convert a temperature gradient into electricity.




    Specification:



    Accuracy: Class A Class B

    Alpha: 0.00385.
    Probe diameter 5 mm.

    Probe length, 2 " (50 mm) from the tip to the back end of the thread.

    Maximum temperature, 300C.



    Conductor
    material
    Calibration Accuracy
    ClassⅠ ClassⅡ
    Accuracy Temperature range( °C ) Accuracy Temperature range( °C )
    NiCr-NiSi K ±1.5°C
    or
    ±0.4%|t|
    -40-1000 ±2.5°C
    or
    ±0.75%|t|
    -40-1000
    NiCr Si-NiSi N -40-1100 -40-1200
    NiCr-Konstantan E -40-800 -40-800
    Fe-Konstantan J -40-750 -40-750
    Cu-Konstantan T ±0.5°C or
    ±0.4%|t|
    -40-350 ±1°C or
    0.75%|t|
    -40-350
    PtRh10-Pt S ±1°C or
    ±[1+ ( t-1100 ) × 0.003]
    0-1600 ±1.5°C
    or
    ±0.25%|t|
    0-1400
    PtRh13-Pt R 0-1600
    PtRh30-PtRh6 B —— ——

    600-1700

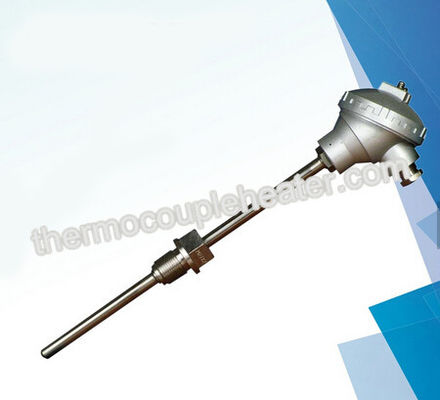

    Assembly K Type Wire Thermocouple With Temperature Instrument Connector Fixed Thread



    Features:



    1. Easy assembly and convenient for replacement;

    2. Spring thermal element with good shock-proof performance;

    3. Wide measuring range;

    4. High mechanical strength, good pressure-resistant performance.


    Payment Terms and Shipping:



    T/T, Western Union are available.



    If you need to pay through other way, please inform us.
