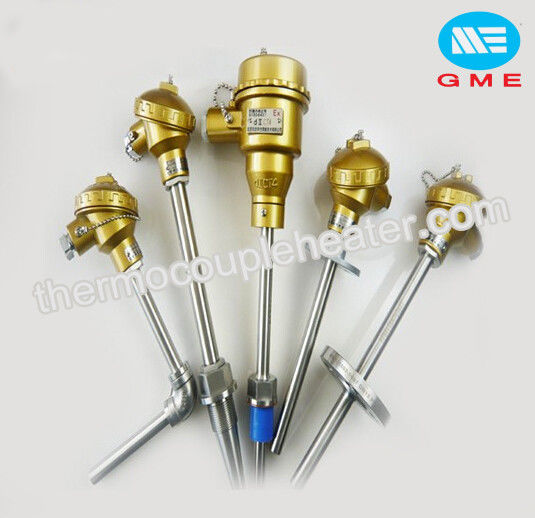

Temperature Sensor Thermocouple RTD High Temperature Assembly 0--1300C

Large Image : Temperature Sensor Thermocouple RTD High Temperature Assembly 0--1300C

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	cartons， pallet
Delivery Time:	7~10 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	100000 pcs per Month

Contact Now

Detailed Product Description

Power Source:	Electric	Temperature Range:	0-1000degree
Voltage:	12-480V	Probe Material:	Stainless Steel Or Nickel
Style:	K, J, S， R, N	Pairs Quantity Of Element:	Simplex/duplex
Heating Element:	Nichrome Resistance	Mounting:	Thread/flange/none
Function:	Temperature Sensor	Feature:	Economical
Types Of Terminal Box:	Anti-spray/water-proof	Connection:	Thread
Highlight:	temperature sensor rtd , temperature sensor rtd pt100

High temperature Assembly Thermocouple 0--1300C K/RTD type in temperature sensor

Description:

1. Usually and display meter, recording meter, electronic computer and other systems. Direct measurement of all kinds of production in the process of 0 ° C to 1300 ° C range of liquid, steam and gas medium and solid surface temperature.

2. Assembly thermocouple temperature sensor is widely applied in industries of aviation, nuclear energy, petrochemical, metallurgy, machinery and technical area for temperature measurement of gas, liquid or surface between -200 ~ 1600°C

Specification:

1.Diameter and length:16mm*1000mm(also Can be customized as customer's requirements)

2.Fixed device : Screw/NONE

3.Temperature Range: 0-1300 centigrade .

4.Protection tube:Stainless steel 301/304/310(2520)/316

5.Terminal : junction box (waterproof type)

Type	Graduation	Measuring range °C	Tolerance class
			ClassⅠ	Class Ⅱ
NiCr-NiSi	K	-40~850	±1.5°C or ±0.4%t	±2.5°C or ±0.75%t
		Simplex -40~1200 Duplex -40~1000
Nicr-Konstantan	E	Simplex -40~650 Duplex -40~550
PtRh10-Pt	S	0~1600		±1.5°C or ±0.25%t
PtRh30-PtRh6	B	0~1800	Class Ⅲ ±3°C or ±0. 5%t

Temperature Sensor Thermocouple RTD High Temperature Assembly 0--1300C 0

Features:

1. Wide temperature range, long service life, easy installation and maintenance

2. Low cost, not good performance on anti vibration and characteristic of thermocouple may change during long term usage.

3.Fast response: smaller the product diameter is, faster the temperature will be changed;

4.Various installation options will meet requirements of different installation conditions;

Payment Terms and Shipping:

Temperature Sensor Thermocouple RTD High Temperature Assembly 0--1300C 1

Tag:

Contact Person: Mr. Frank

Tel: 15058960276

Fax: 86-27-86653728
