Waterproof Gas Thermocouple RTD Platinum Rhodium Wire 0.3 , 0.4 , 0.5mm

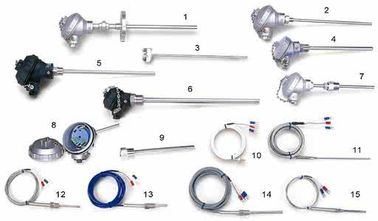

Large Image : Waterproof Gas Thermocouple RTD Platinum Rhodium Wire 0.3 , 0.4 , 0.5mm

Product Details:

Place of Origin:	Wuhan, China
Brand Name:	GME
Certification:	ISO9001/CE

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Packaging Details:	standard export packing
Delivery Time:	7~20 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000 pcs per Month

Contact Now

Detailed Product Description

Usage:	Industrial	Temperature Range:	0-1600
Junction Box:	Water-proof	Accuracy:	1
Wire Material:	Platinum Rhodium	Wire Diameter:	0.3,0.4,0.5mm
Highlight:	temperature sensor rtd , temperature sensor rtd pt100

Description:
For the measurement of higher temperatures we offer thermocouples with ceramic tubes, upon request with additional ceramic inner tubes.
The thermocouples (e.g. type S or type B) are insulated by a 2-hole or 4-hole insulating ceramic rod. The measuring point is laser-welded.
The thermocouple is protected against environmental influences.
We furnish all kinds of thermocouples with ceramic protective tubes at all lengths and designs.

Features:
1. Easy assembly and convenient for replacement;
2. Spring thermal element with good shock-proof performance;
3. Wide measuring range;
4. High mechanical strength, good pressure-resistant performance.

Application:
The Hot Runner Thermocouple has been designed to be used in below area,
1. Hot Runner bushings, drops and nozzles
2. Hot Runner manifolds
3. Plastics and rubber industry
4. Moulds used in injection molding machines
5. For direct installation in the process

Waterproof Gas Thermocouple RTD Platinum Rhodium Wire 0.3 , 0.4 , 0.5mm 0

Technical Parameters:

Thermocouple & rtd
Ref No.	WR	Temp
Thermal element materials	B: PtRh30-Pt6 R: PtRh13-Pt S: PtRh10-Pt N: NiCrSi-NiSi K: NiCr-NiSi E: NiCr-CuNi J: Fe-CuNi T: Cu-CuNi	0~1600C 0~1300C 0~1300C 0~1000C 0~900C 0~600C 0~500C 0~350C
Ref No.	WZP	Temp
	PT100 PT1000 CU50	-200~+650C -200~+650C -200~+650C
Pairs quantity of sensor wire	Simplex Duplex
Ways of Mounting & Fixing	1: without fixing device 2: fixed thread 3: movable flange 4: fixed flange 5: right-angle movable flange 6: fixed thread in wimble shape protection tube
Types of connections box	2: anti-spray (Protection class: IP65) 3: water-proof (Protection class: IP55)
Types of sensor end	G: variable section K: sheathed elements T: flexible sheathed elements
Diameter of protection tube	0: ¢16 1: ¢20 2: ¢16 high aluminum material 3: ¢20 high aluminum material
Measuring range	0~1600 degree Celsius
Shipping	By air, sea, express
Sample time	2~7 days
Manufacture time	7~30 days depending on order quantity
