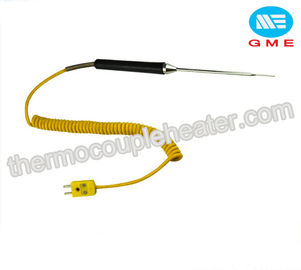

Multifunctional Handle Type Thin Needle / Sharp Thermocouple Surface Probe K

Multifunctional Handle type thin needle / sharp thermocouple surface probe K

Description:

1) Thermocouple (thermocouple) temperature measuring instruments commonly used in temperature measurement devices, which directly measure the temperature, and the temperature signal converted into thermal EMF signals through electrical instrument (secondary instrument) into the temperature of the measured medium.

2) Often due to a variety of thermocouple appearance very different needs, but their basic structure is roughly the same, usually by the main part of the hot electrode, insulating sleeve to protect pipes and junction boxes, etc., usually display instruments, recording instruments and electronic regulation supporting the use.

3) Probe for measuring more than 130 mm in diameter and smooth metal, rubber, plastic and so on the cylinder and the cylinder surface and the outer wall temperature, dynamic object to be tested in the linear velocity of less than 100 m/min. Components of the insulation resistance between the shell and not less than 20 m Ω (500 v dc), temperature measuring range: 0 ~ 600 °C.

Specification:


Material Of Handle: Rubber

Wire :Spring Wire

Probe Size:5*150mm

Temperature Rang: -50-600 °c

Connection : No Fixing Device

Input: K, E
Wire length: 2000mm
Handle material: plastic
Temperature range of use: - 50 ℃ ~ + 400 ℃

temperature range	0 to 600C
type	K type
probe length	200mm or customized
probe diameter	1.5mm to 8 mm customized
probe material	ss304/ss316
handle length	120mm or 150mm customized
wire length	2000mm or customized






Application and Features:

• Food processing equipment

• Plastic injection molding machinery

• Engine and turbine exhaust gas
• Semiconductor processing
• Heat treating and metals processing
• Medical equipment
• Aerospace industries
• Packaging equipment
• Test stands
